Plan Description
Unique plan with both beauty and function. Open plan with raised ceiling
in great room with gas logs and plenty of light. One large dining area.
Flex space for study or 3rd bedroom. Large garage with storage and shop
area. Great street appeal!
Floor Plans

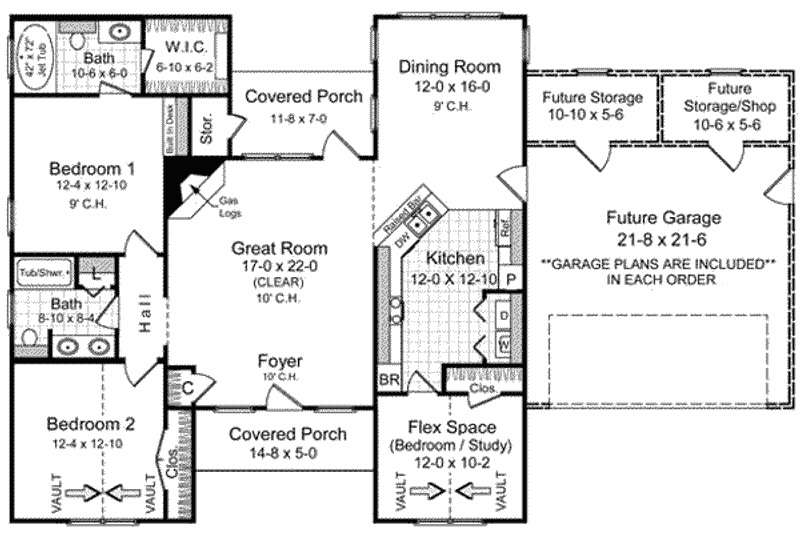

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 42'
Height : 24' 5"
Width : 64' 8"
Area
First Floor: 1503 sq/ft
Garage: 612 sq/ft
Storage: 16 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Kitchen Features
Eating Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Storage Area
Workshop
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 1:
158 sq/ft width 12' 4" x depth 12' 10"
Bedroom 2:
158 sq/ft width 12' 4" x depth 12' 10"
Covered Porch:
73 sq/ft width 14' 8" x depth 5'
Dining Room:
192 sq/ft width 12' x depth 16'
Flex Room:
122 sq/ft width 12' x depth 10' 2"
Garage:
465 sq/ft width 21' 8" x depth 21' 6"
Garage Storage:
59 sq/ft width 10' 10" x depth 5' 6"
Great Room:
374 sq/ft width 17' x depth 22'
Porch - Rear:
81 sq/ft width 11' 8" x depth 7'
What's Included In This Plan Set
Plans are typically drawn to ¼” scale or larger and include:
» See important
information before purchasing.
- Cover Sheet: Color rendering or black and white image of the exterior
- Foundation Plan(s): Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.

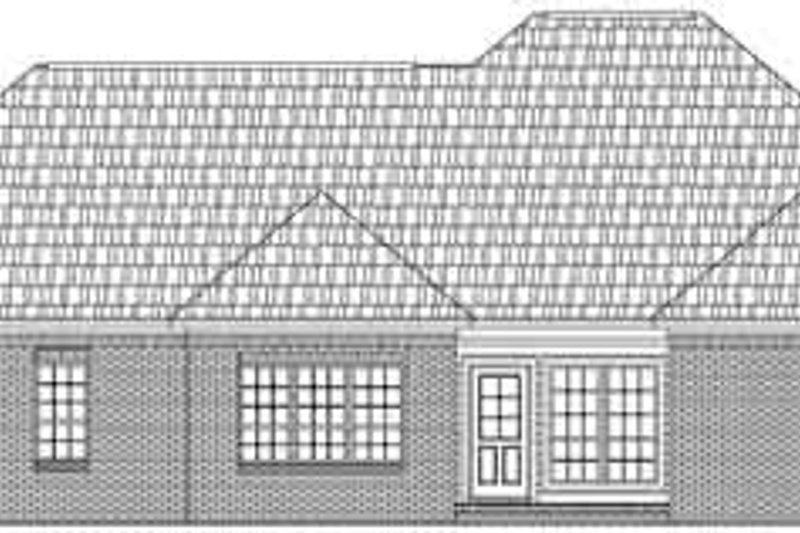

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
- Overhead Roof Plan(s): Overhead view of roof.
- Cross Section(s): A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Electrical Plan(s): Lighting, outlets, switches, detectors, etc.
- Kitchen Cabinet Elevation(s): Scaled drawings of interior cabinets.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): Ceiling joist size and spacing and layouts. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Wall Section(s): Exterior wall and roof sections and specialty details.
