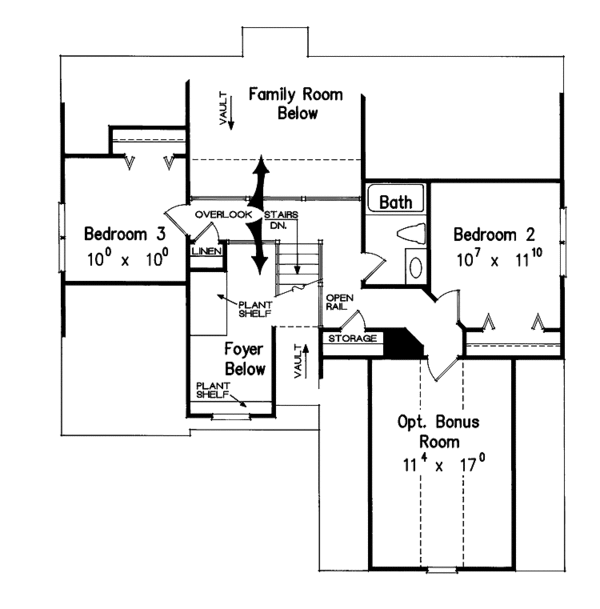

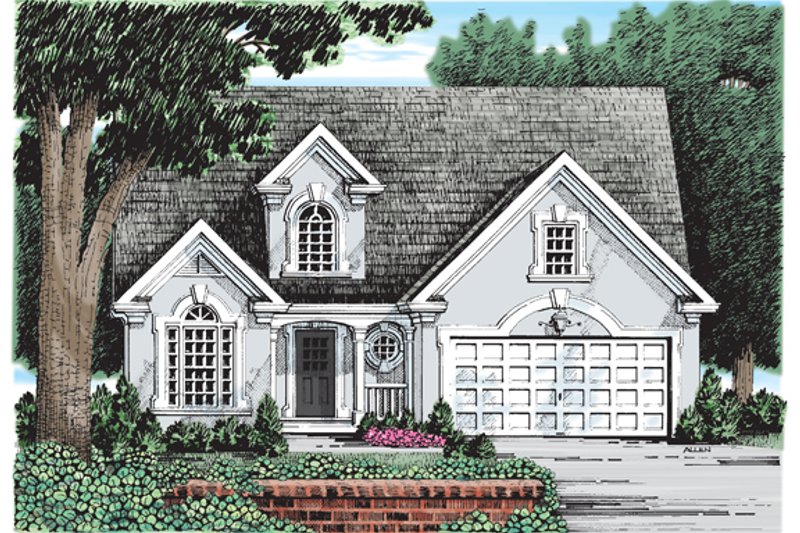

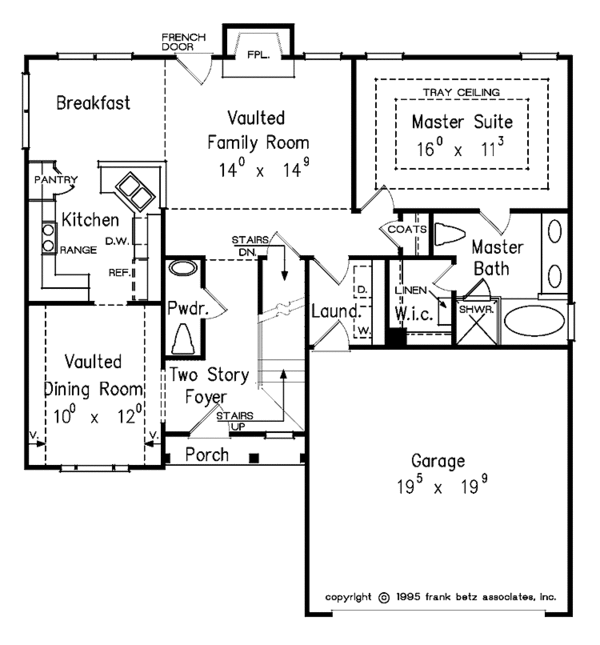

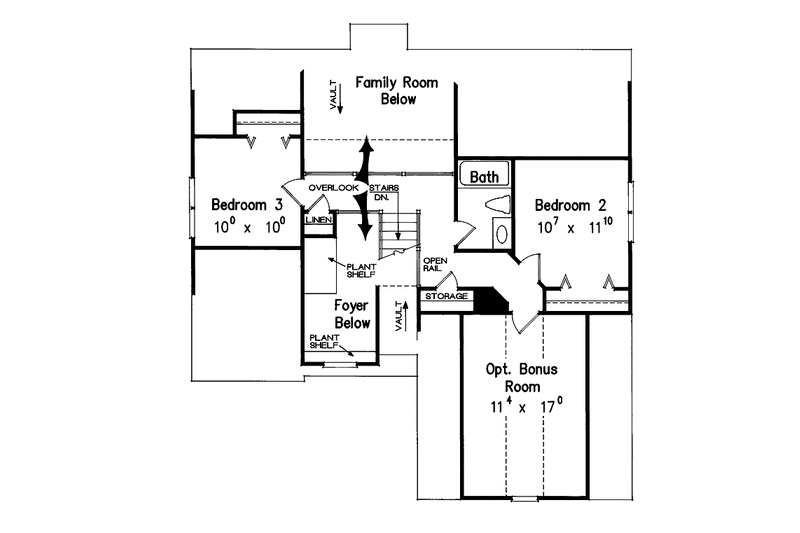

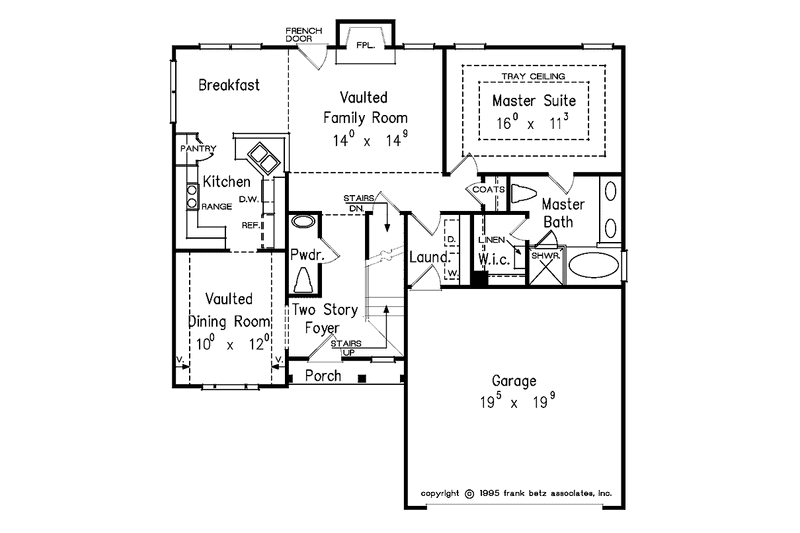

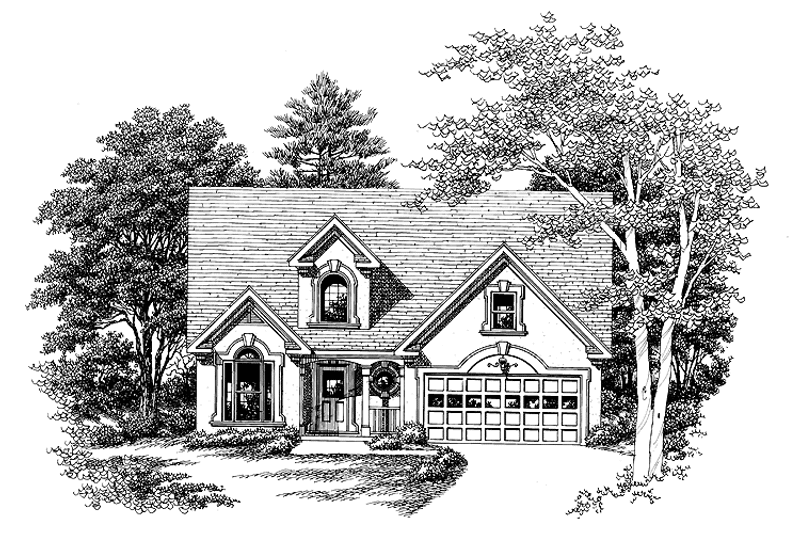

An impression of delicate elegance marks this exterior. The ambiance continues through the foyer, with the balcony above and the vaulted dining room to the left. A wider balcony overlooks the family room, which is warmed by a fireplace. The master suite offers a tray ceiling, a walk-in closet, and a bath that features a double-bowl vanity. Two upstairs bedrooms share a bath, a balcony, and linen and storage closets. Over the two-car garage, an optional bonus room could evolve into a recreation or hobby room. Please specify basement or crawlspace foundation when ordering.
125 sq/ft width 10' 7" x depth 11' 10"
100 sq/ft width 10' x depth 10'
Bonus Room - Finished:
207 sq/ft width 11' 5" x depth 17'
79 sq/ft width 10' 3" x depth 7' 9"
120 sq/ft width 10' x depth 12'
90 sq/ft width 7' x depth 12' 11"
398 sq/ft width 19' 5" x depth 19' 9"
206 sq/ft width 14' x depth 14' 9"
103 sq/ft width 9' 11" x depth 10' 5"
36 sq/ft width 5' 8" x depth 6' 5"
99 sq/ft width 10' 1" x depth 9' 11"
180 sq/ft width 16' x depth 11' 3"
29 sq/ft width 4' 8" x depth 6' 5"
Porch - Front:
22 sq/ft width 10' 6" x depth 2' 2"
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
