PLAN 434-14
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

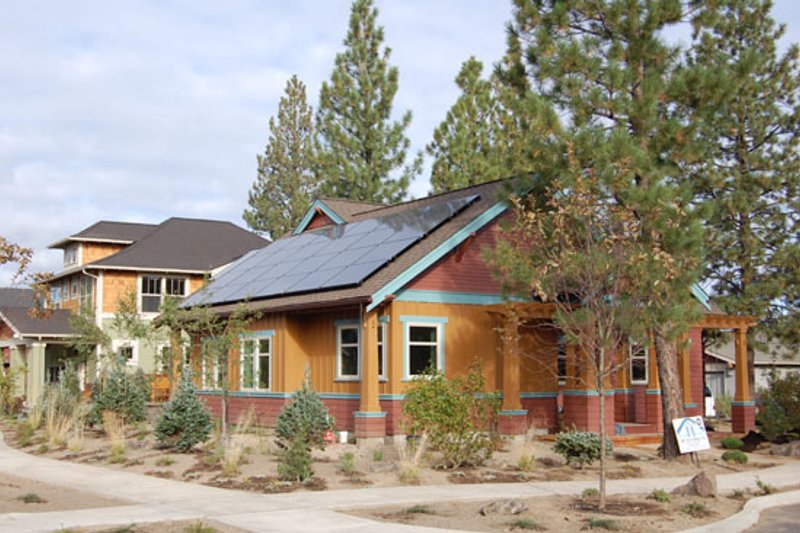

This home encompasses energy efficiency thru advanced framed at the
exterior envelope. Wall R-values are increased thru thicker exterior
walls, increased roof truss heel heights, and higher U-values at
windows/ doors. The built home is complimented with 5.5kw solar electric
and solar thermal collectors. The home design and appliance/ equipment
compliment this Net Zero home.
Floor Plans

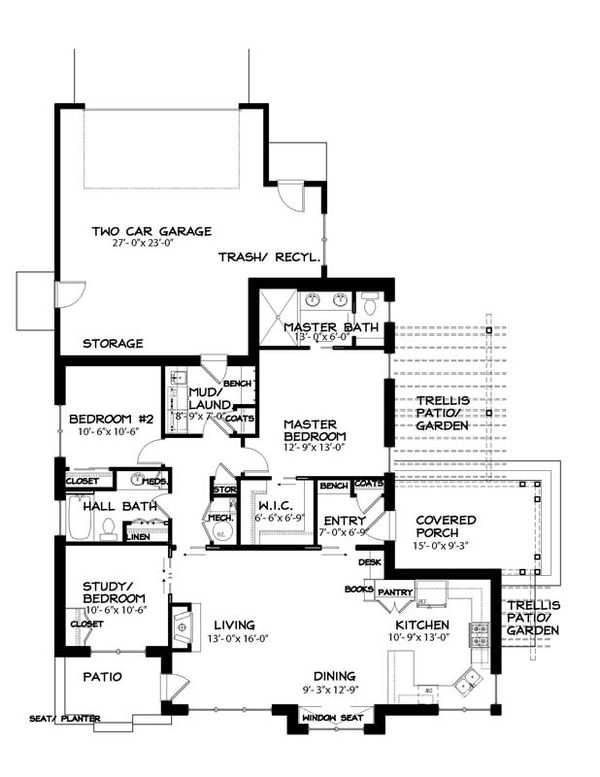

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 65'
Height : 21'
Width : 46'
Area
Garage : 563 sq/ft
Main Floor : 1534 sq/ft
Patios : 161 sq/ft
Porch : 144 sq/ft
Storage : 60 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Flat Ceilings w/ Vaulted Options
Garage Ceiling : 10'
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 25
Roof Type : Composition
Secondary Pitch : 3:12
Exterior Wall Framing
Exterior Wall Finish : Lap Siding/ Board & Batten
Framing : 12" Thick Advanced Framing
Insulation : R-40
Seismic Rating : C
Wind Rating : 85
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Garage Features
Front Entry Garage
Garage Under
Rear Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Wrap Around Porch
More
Empty Nester
Suited For Vacation Home
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural Notes
Structural Roof Framing
Energy Efficient Features
Energy Efficient Design
Green Specifications
Passive Solar Systems
Passive Water Systems
What's Included In This Plan Set
The typical plan set will include:Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Drawing index, designer contact info, plan name/number, legal disclaimers.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.
- Energy Guidelines: Specifications or suggestions for how to meet or exceed certain energy standards.
Questions? Call 1-888-447-1946
Plan Set
5 Copy Set:
$807.50
$807.50
5 printed plan sets mailed to you.
8 Copy Set:
$935.00
$935.00
8 printed plan sets mailed to you.
Reproducible Set:
$1062.50
$1062.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
PDF Set:
$1275.00
$1275.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$2125.00
$2125.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set:
$637.50
$637.50
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$85.00
$85.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse:
$382.50
$382.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$42.50
$42.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$127.50
$127.50
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$127.50
$127.50
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$85.00
$85.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
