PLAN 47-655
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 32'
Height : 26'
Width : 39'
Area
First Floor: 1022 sq/ft height 8'
Second Floor: 551 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Kitchen Features
Walk In Pantry Cabinet Pantry
Additional Room Features
Loft
Master Sitting Area
Outdoor Spaces
Balcony
Covered Rear Porch
Deck
Rooms
3rd BR Closet:
12 sq/ft width 2' x depth 6'
Bedroom 2 Closet:
17 sq/ft width 2' x depth 8' 6"
Bedroom 3:
111 sq/ft width 10' 8" x depth 10' 5"
Bedroom 3 Closet:
17 sq/ft width 2' x depth 8' 6"
Crawlspace Foundation:
1248 sq/ft width 32' x depth 39'
Deck:
265 sq/ft width 9' x depth 29' 6"
Hall:
31 sq/ft width 7' 2" x depth 4' 4"
Hall Bathroom:
58 sq/ft width 5' 6" x depth 10' 8"
Hall Closet:
6 sq/ft width 2' x depth 3'
Kitchen:
98 sq/ft width 8' 5" x depth 11' 9"
Master Bathroom:
58 sq/ft width 5' 6" x depth 10' 8"
Master Closet:
10 sq/ft width 2' x depth 5' 4"
Utility Room:
79 sq/ft width 7' 10" x depth 10' 2"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

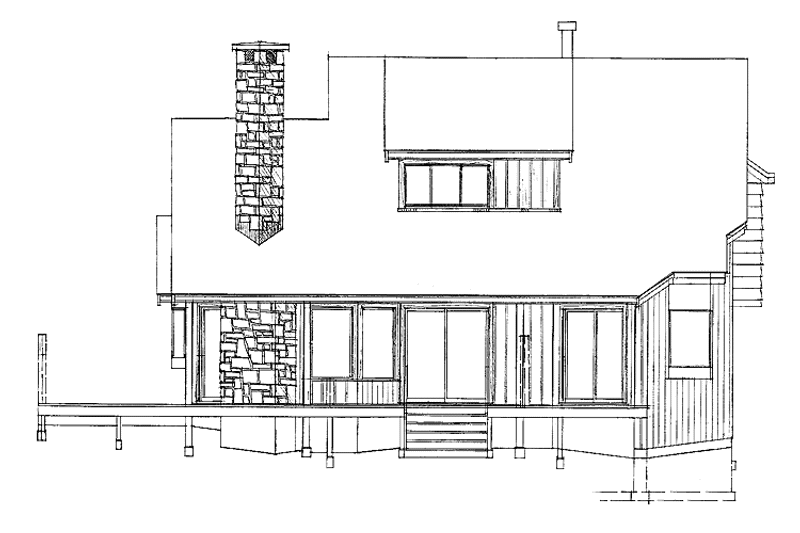

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

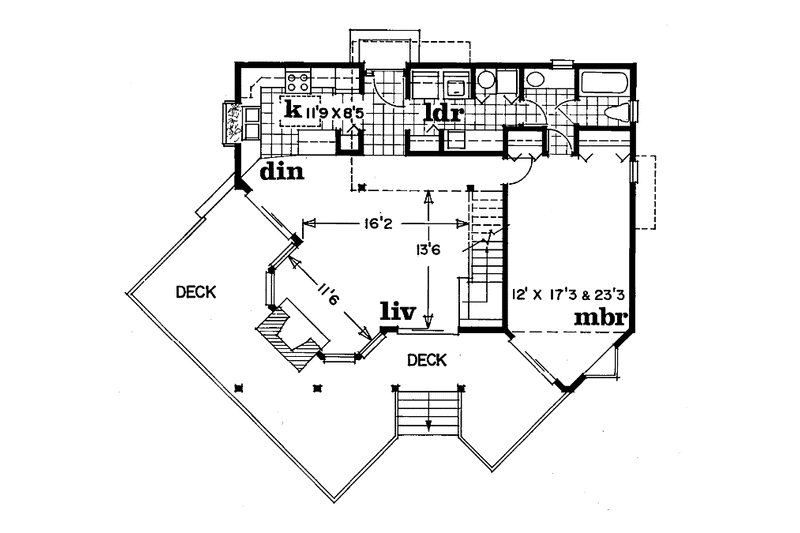

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1056.00
$1188.00
$1320.00
$1320.00
$2112.00
Foundation
$0.00
$275.00
$275.00
$275.00
Framing
$0.00
Additional Options
$195.00
$60.00
$495.00
$150.00
$295.00
$39.00
$150.00
$85.00
$0.00
$995.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
