PLAN 42-438
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
Full Specs & Features
Height : 21'
Width : 50'
First Floor: 1573 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchenette Wet Bar
Main Floor Laundry
Open Floor Plan
Storage Area
Covered Front Porch
Covered Rear Porch
3rd BR Closet:
16 sq/ft width 5' x depth 3' 4"
Bathroom 2:
40 sq/ft width 5' x depth 8'
Bedroom 2:
121 sq/ft width 11' x depth 11'
Bedroom 2 Closet:
16 sq/ft width 5' x depth 3' 4"
Bedroom 3:
100 sq/ft width 10' x depth 10'
Bedroom 3 Closet:
16 sq/ft width 5' x depth 3' 4"

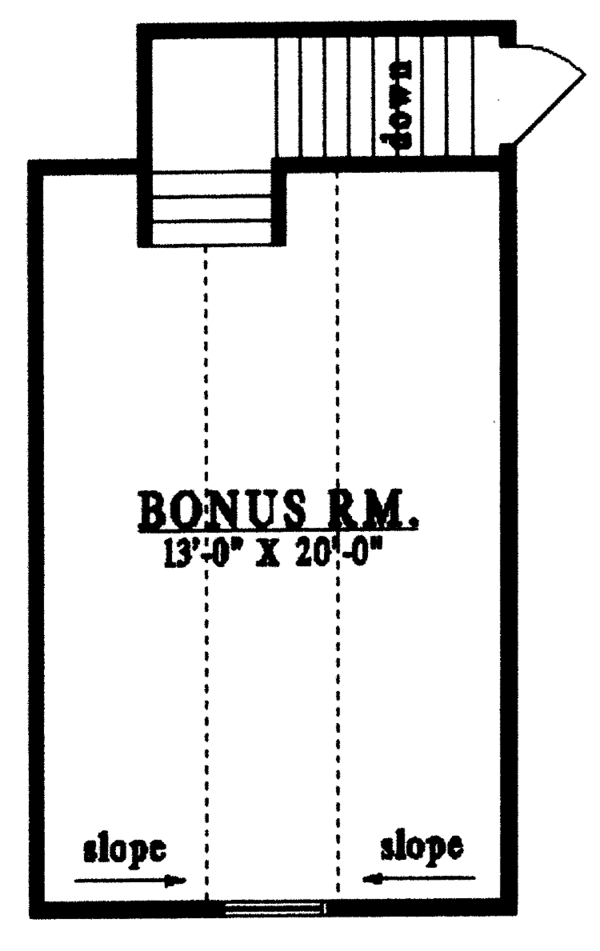

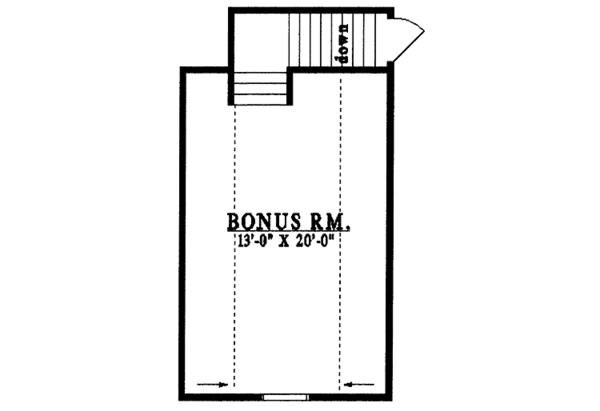

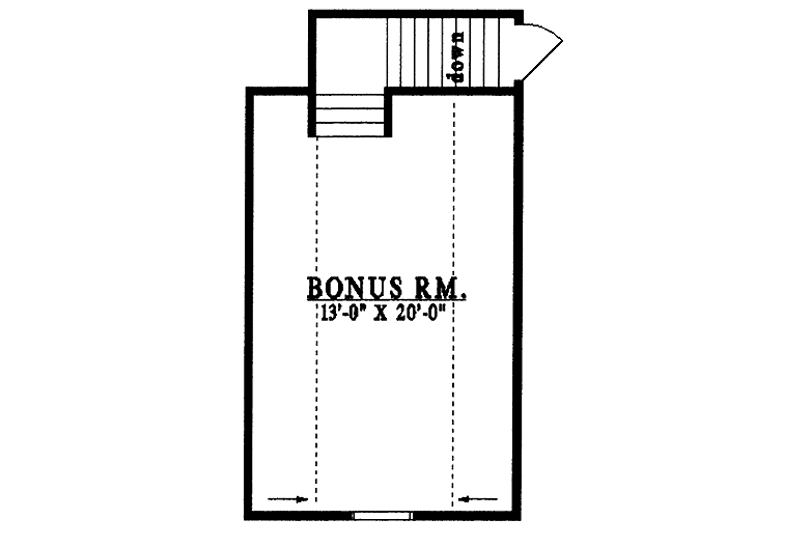

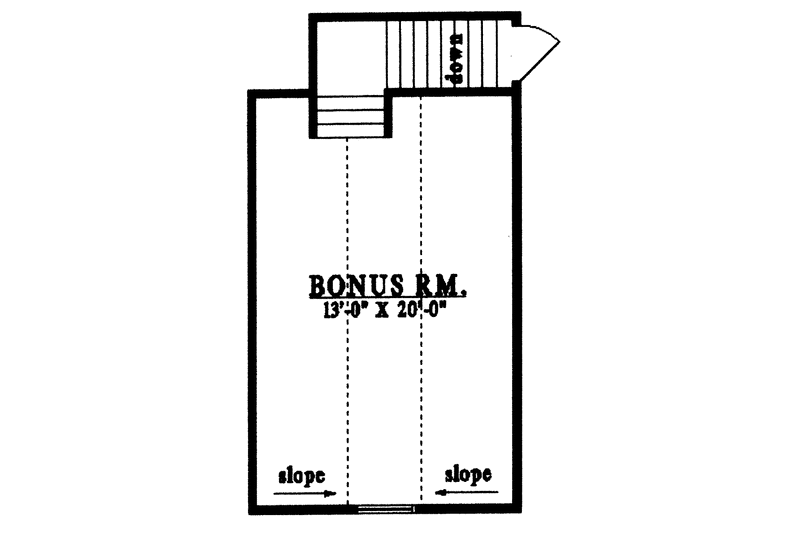

Bonus Room - Finished:
260 sq/ft width 13' x depth 20'
Breakfast Room:
110 sq/ft width 10' x depth 11'
Coat Closet:
5 sq/ft width 2' 6" x depth 2'
Dining Room:
110 sq/ft width 10' x depth 11'
Foyer:
65 sq/ft width 4' 8" x depth 14'
Front Entry:
65 sq/ft width 4' 8" x depth 14'
Garage:
400 sq/ft width 20' x depth 20'
Garage Storage:
29 sq/ft width 3' 8" x depth 8'
Gathering Room:
250 sq/ft width 15' x depth 16' 8"
Hall:
96 sq/ft width 5' 8" x depth 17'
Hall Bathroom:
40 sq/ft width 5' x depth 8'
Hall Closet:
5 sq/ft width 2' 6" x depth 2'
Kitchen:
126 sq/ft width 10' x depth 12' 8"
Laundry Room:
46 sq/ft width 6' 8" x depth 7'
Linen Closet:
4 sq/ft width 3' 4" x depth 1' 6"
Master Bedroom:
180 sq/ft width 12' x depth 15'
Master Closet:
21 sq/ft width 4' 8" x depth 4' 8"
Master Closet Two:
18 sq/ft width 4' x depth 4' 8"
Pantry:
3 sq/ft width 2' x depth 1' 6"
Patio:
102 sq/ft width 17' x depth 6'
Porch - Front:
130 sq/ft width 26' x depth 5'
Porch - Rear:
102 sq/ft width 17' x depth 6'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

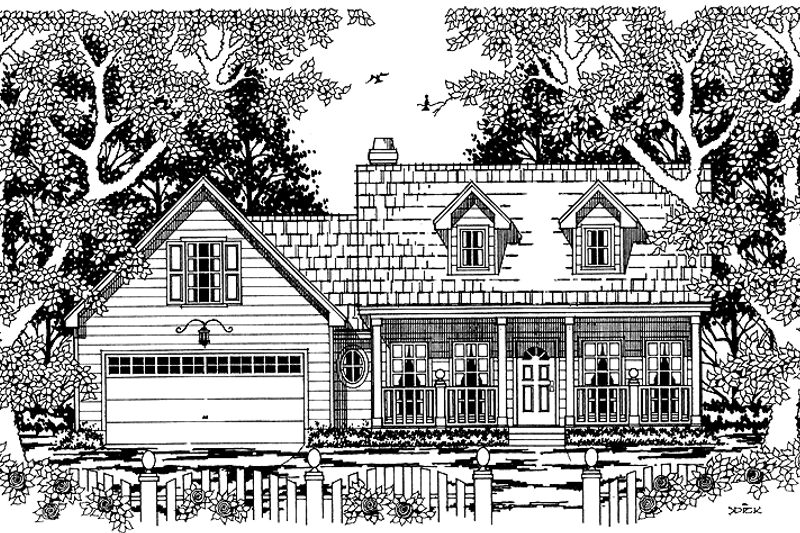

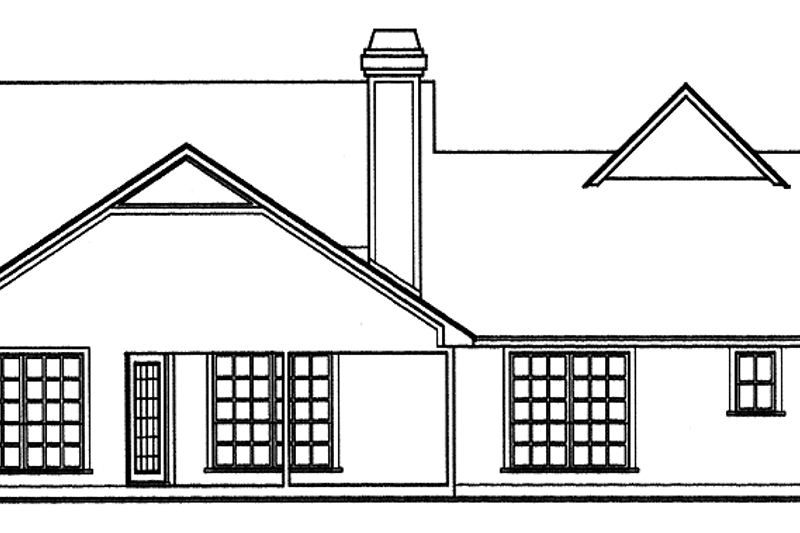

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

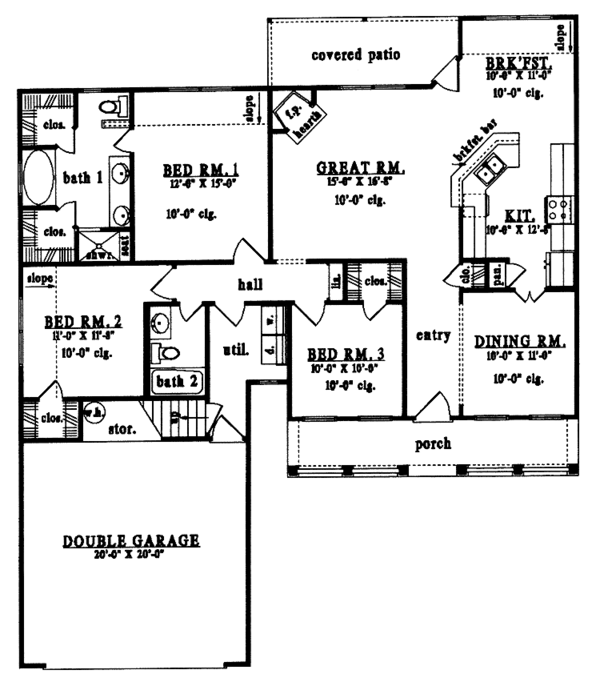

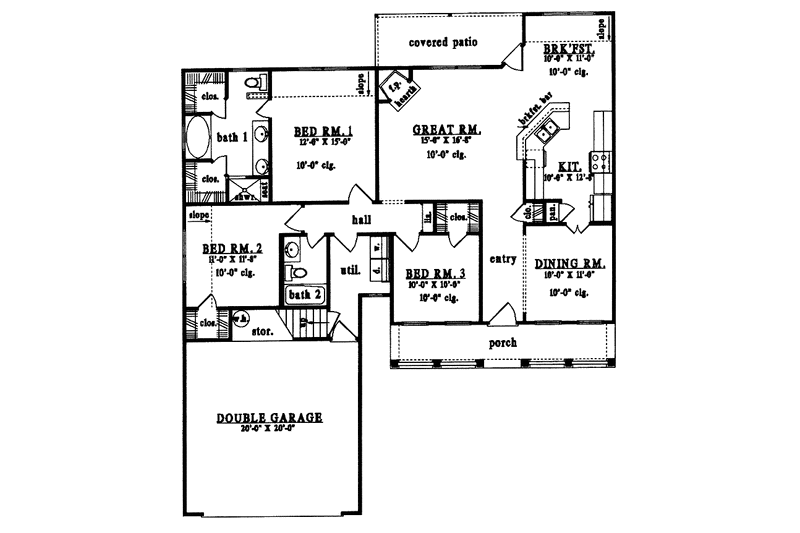

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
| 5 Copy Set : $800.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $850.00 |
8 printed plan sets mailed to you. |
| PDF Set : $850.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Single Set : $750.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $175.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
