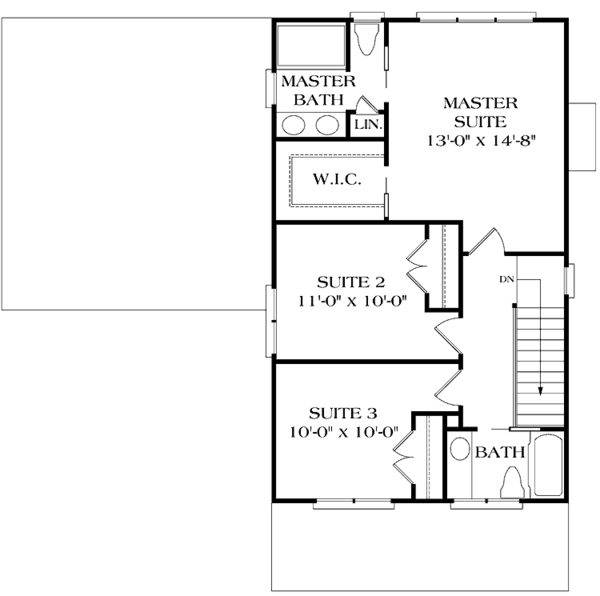

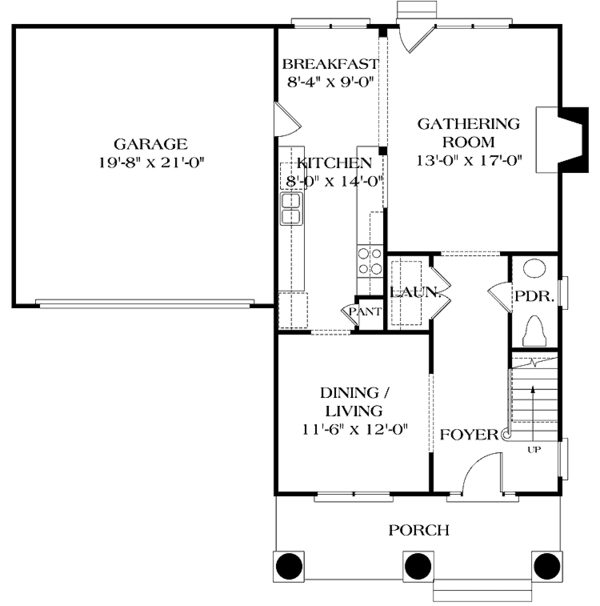

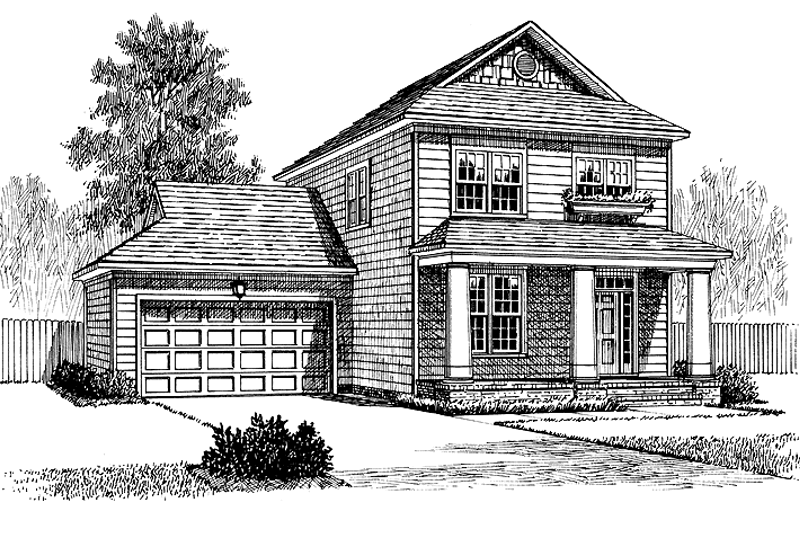

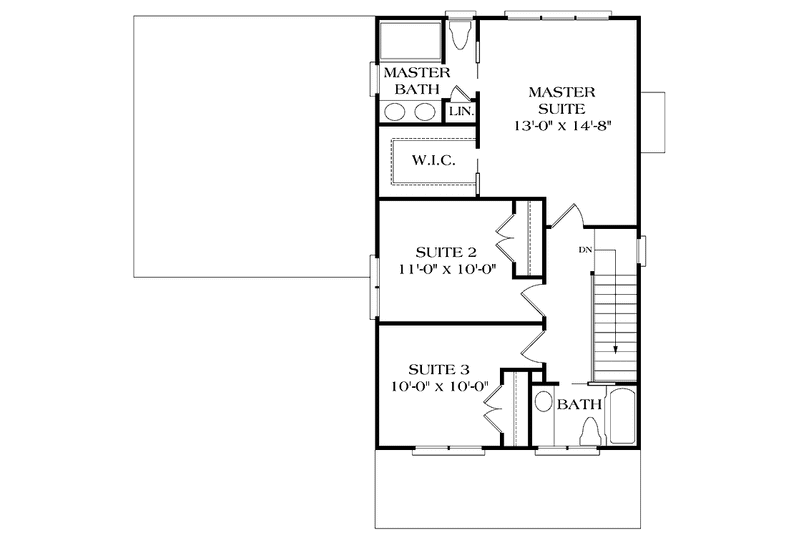

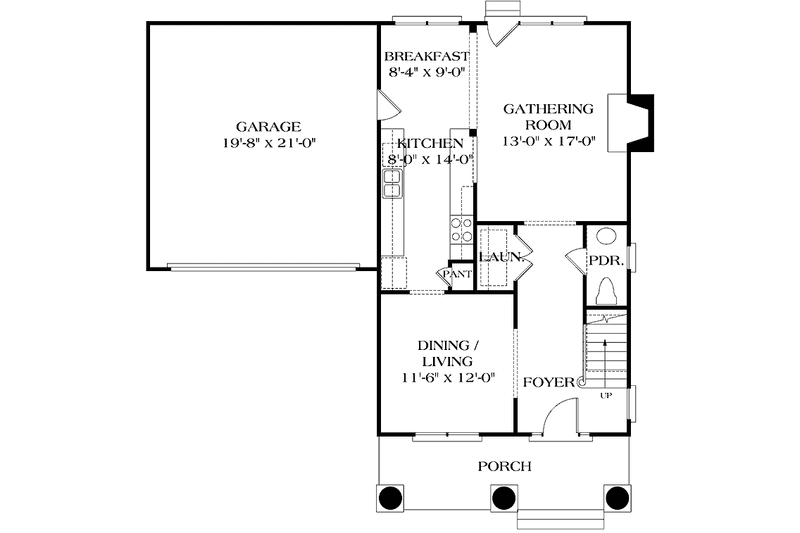

This lovely cottage enjoys a comfortable seaside charm but is ready to build in any region. A box-paneled door and transom announce the grand foyer, which opens to the formal living/dining room and leads back to a gathering room with a fireplace. A galley-style kitchen serves a breakfast area with a double window. Upstairs, a hall connects the stunning master suite with the two family bedrooms and a full bath.
74 sq/ft width 8' 4" x depth 9'
138 sq/ft width 11' 6" x depth 12'
413 sq/ft width 19' 8" x depth 21'
221 sq/ft width 13' x depth 17'
Guest Suite 2:
110 sq/ft width 11' x depth 10'
Guest Suite 3:
100 sq/ft width 10' x depth 10'
112 sq/ft width 8' x depth 14'
190 sq/ft width 13' x depth 14' 8"
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
