Key Specs
1587
sq ft
2
Beds
2.5
Baths
1
Floors
3
Garages
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 70-608
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

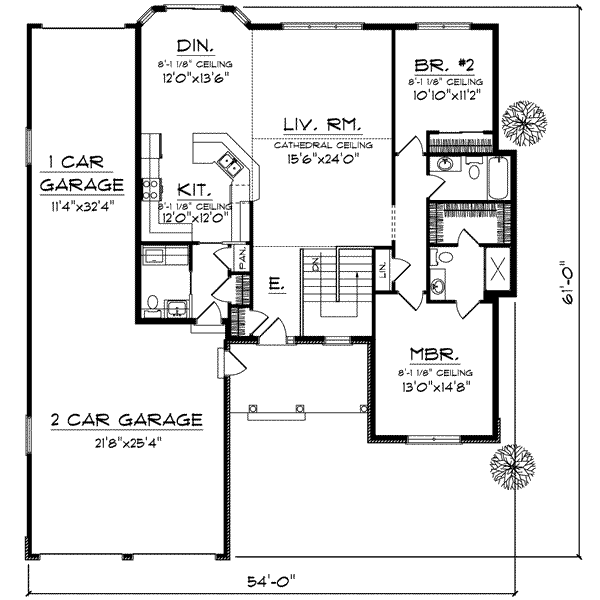

Floor Plans
Full Specs & Features
Dimension
Depth : 61'
Height : 22'
Width : 54'
Area
First Floor: 1587 sq/ft height 8'
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x6"
Bedroom Features
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Storage Area
Unfinished Future Space
Garage Features
Oversized Garage
Rear Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
14 sq/ft width 7' 5" x depth 2'

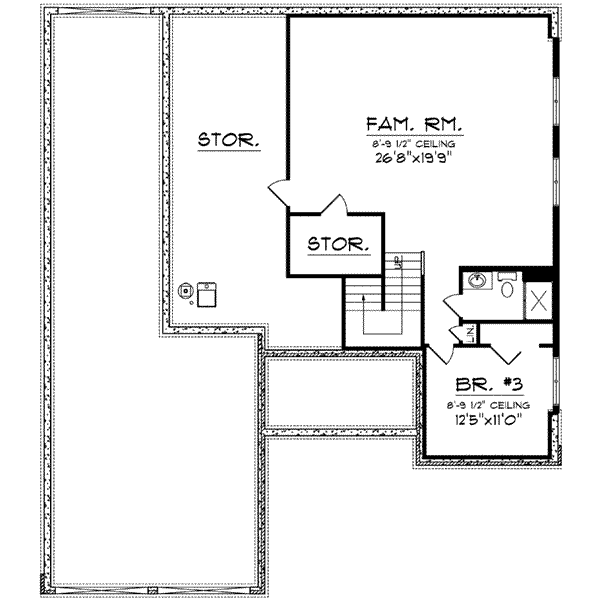

Basement Foundation:
1853 sq/ft width 40' x depth 46' 4"
Bathroom 2:
45 sq/ft width 9' 2" x depth 5'
Bedroom 2:
120 sq/ft width 10' 10" x depth 11' 2"
Bedroom 2 Closet:
14 sq/ft width 7' x depth 2'
Bedroom 3:
133 sq/ft width 12' 4" x depth 10' 10"
Bedroom 3 Closet:
14 sq/ft width 7' x depth 2'
Dining Room:
162 sq/ft width 12' x depth 13' 6"
Foyer:
49 sq/ft width 5' 2" x depth 9' 8"
Garage:
548 sq/ft width 21' 8" x depth 25' 4"
Garage Two:
366 sq/ft width 11' 4" x depth 32' 4"
Gathering Room:
528 sq/ft width 26' 8" x depth 19' 10"
Hall Closet:
6 sq/ft width 2' x depth 3' 2"
Kitchen:
144 sq/ft width 12' x depth 12'
Laundry Room:
43 sq/ft width 5' 4" x depth 8' 2"
Living Room:
372 sq/ft width 15' 6" x depth 24'
Master Bathroom:
190 sq/ft width 13' x depth 14' 8"
Master Bedroom:
190 sq/ft width 13' x depth 14' 8"
Master Closet:
38 sq/ft width 9' x depth 4' 4"
Porch - Front:
114 sq/ft width 15' 4" x depth 7' 6"
Slab Foundation:
1325 sq/ft width 22' 4" x depth 59' 4"
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$973.00
$1016.00
$1215.00
$1215.00
$1921.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$39.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
