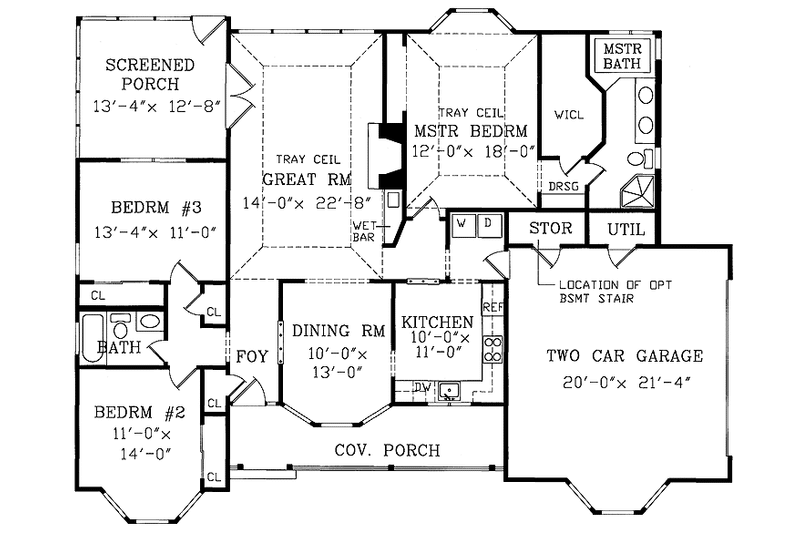

Here is a design that is sure to make lovers of the outdoors feel right at home with a screen porch, rear patio, front covered porch, and multitude of windows. The formal dining room adjoins the kitchen--which includes an efficient built-in breakfast nook--to the right, and the great room--with tray ceiling, fireplace, and window wall--to the rear. Secluded for privacy, the master suite boasts a tray ceiling and bay window as well as an elaborate private bath.
Full Specs & Features
Height : 22'
Width : 59' 10"
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchenette Wet Bar
Great Room Living Room
Master Sitting Area
Sunroom
Covered Front Porch
Covered Rear Porch
Screened Porch
3rd BR Closet:
15 sq/ft width 7' 8" x depth 2'
Bedroom 2:
154 sq/ft width 11' x depth 14'
Bedroom 2 Closet:
13 sq/ft width 2' x depth 6' 8"
Bedroom 3:
146 sq/ft width 13' 4" x depth 11'
Bedroom 3 Closet:
13 sq/ft width 2' x depth 6' 8"
Dining Room:
130 sq/ft width 10' x depth 13'
Foyer:
50 sq/ft width 4' 6" x depth 11' 4"
Garage:
426 sq/ft width 20' x depth 21' 4"
Garage Storage:
21 sq/ft width 7' x depth 3'
Gathering Room:
317 sq/ft width 14' x depth 22' 8"
Hall Bathroom:
38 sq/ft width 7' 8" x depth 5'
Hall Closet:
8 sq/ft width 2' x depth 4'
Kitchen:
110 sq/ft width 10' x depth 11'
Laundry Room:
31 sq/ft width 5' x depth 6' 4"
Master Bathroom:
96 sq/ft width 16' x depth 6'
Master Bedroom:
216 sq/ft width 12' x depth 18'
Master Closet:
61 sq/ft width 5' 6" x depth 11' 2"
Porch - Front:
151 sq/ft width 25' 2" x depth 6'
Porch - Rear:
255 sq/ft width 19' 8" x depth 13'
Utility Room:
18 sq/ft width 6' x depth 3'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

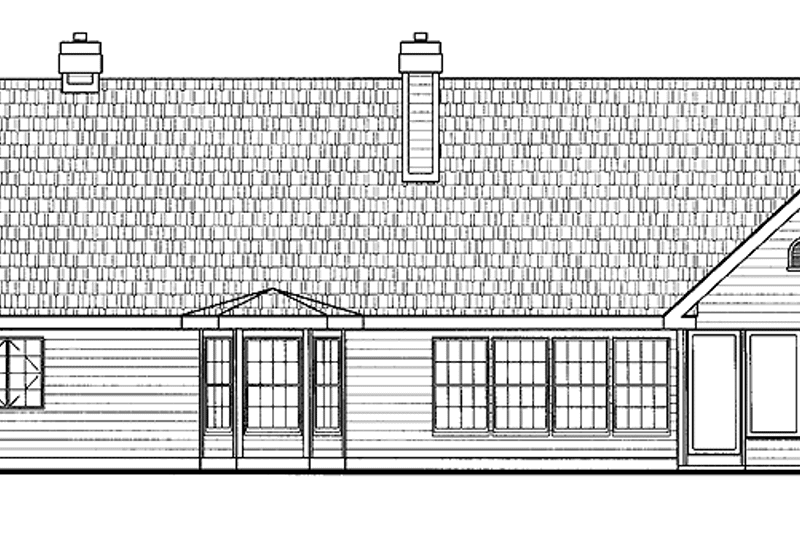

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
