PLAN 70-1316
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

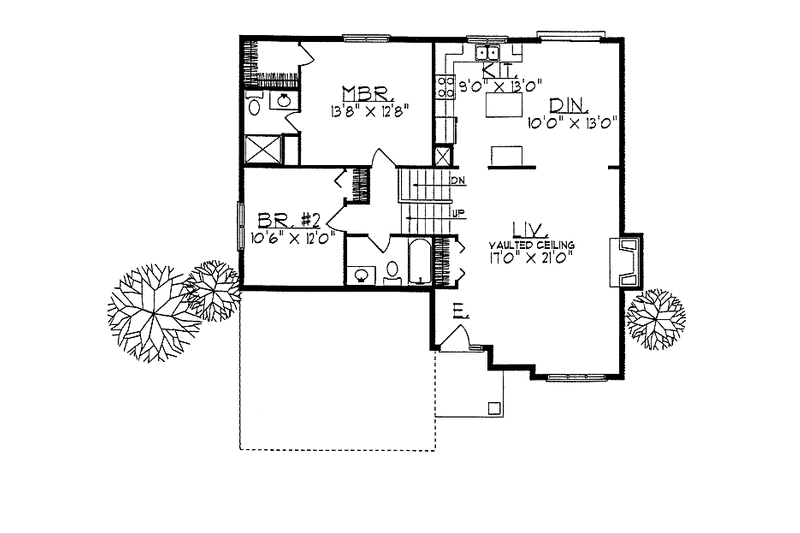

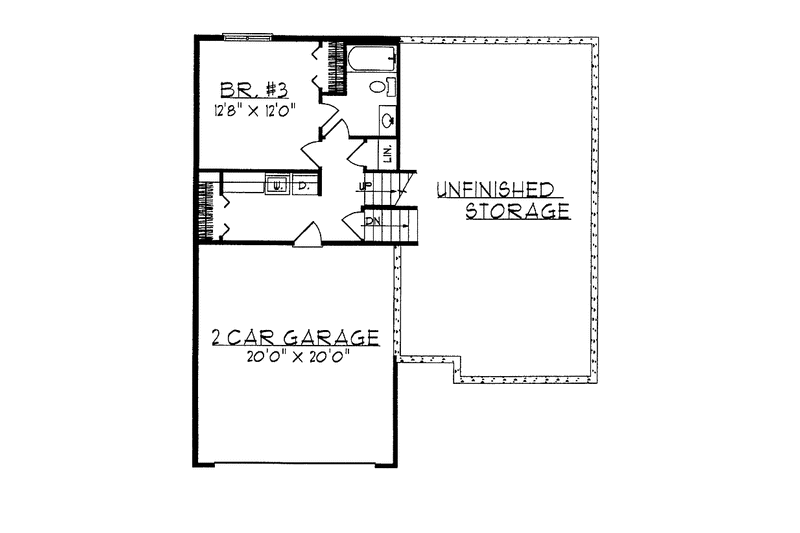

Floor Plans
Full Specs & Features
Dimension
Depth : 35'
Height : 25'
Width : 42'
Area
Basement Living: 397 sq/ft
First Floor: 684 sq/ft height 8'
Garage: 400 sq/ft
Second Floor: 518 sq/ft height 8'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Upstairs Master Bedrooms
Kitchen Features
Kitchen Island
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
126 sq/ft width 10' 6" x depth 12'
Dining Room:
130 sq/ft width 10' x depth 13'
Kitchen:
117 sq/ft width 9' x depth 13'
Living Room:
357 sq/ft width 17' x depth 21'
Master Bedroom:
173 sq/ft width 13' 8" x depth 12' 8"
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

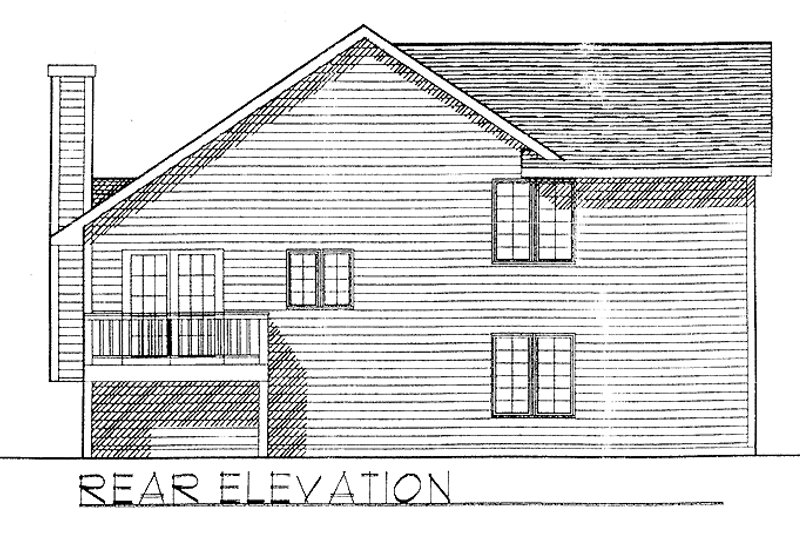

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
