This three-bedroom ranch home exudes style with its craftsman details, shuttered windows and stone accents. As you set foot in the front door, the vaulted entry leads your eye to the great room directly ahead where another vault continues the story. The kitchen, complete with breakfast bar that overlooks the bay window in the dining area, lies adjacent to the left of the great room. The master is located behind the garage away from the other two bedrooms on the right side of the home, to provide maximum privacy for mom and dad. A two-stall garage completes the home.

Floor Plans

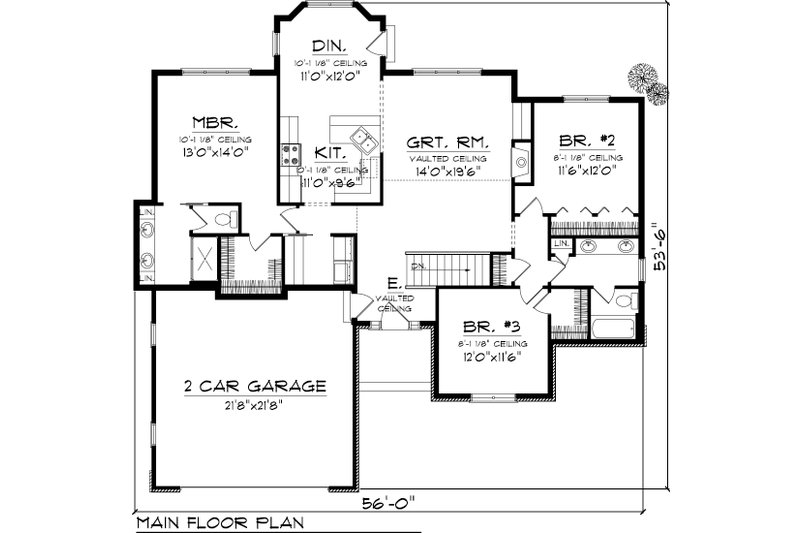

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #70-1044

Full Specs & Features

Depth : 53' 6"
Height : 24' 2"
Width : 56'
First Floor: 1616 sq/ft
Garage: 483 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Master Bdrm/Kitchen/Dining Rm 10'Grt Rm/Entry Vaulted
Main Ceiling : 8'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Siding, Shake, Stone
Framing : 2 x 6
Insulation : 19
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Great Room Living Room
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch


width 56' x depth 52' 4"

Bedroom 2:

width 11' 6" x depth 12'

Bedroom 2 Closet:

width 9' 8" x depth 2' 1"

Bedroom 3:

width 12' x depth 11' 6"

Bedroom 3 Closet:

width 4' x depth 5' 7"

Dining Room:

width 11' 10" x depth 12'


width 5' 6" x depth 9' 8"


483 sq/ft width 21' 8" x depth 21' 8"

Great Room:

width 14' x depth 19' 6"


width 3' 8" x depth 7' 8"

Hall Closet:

width 2' 1" x depth 3' 5"


width 11' x depth 9' 6"


width 7' 8" x depth 5' 4"

Master Bedroom:

width 13' x depth 14'

Master Walk In Closet:

width 6' 9" x depth 6' 4"

Porch Front:

width 8' 8" x depth 6'
