Plan Description
This country design floor plan is 1619 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

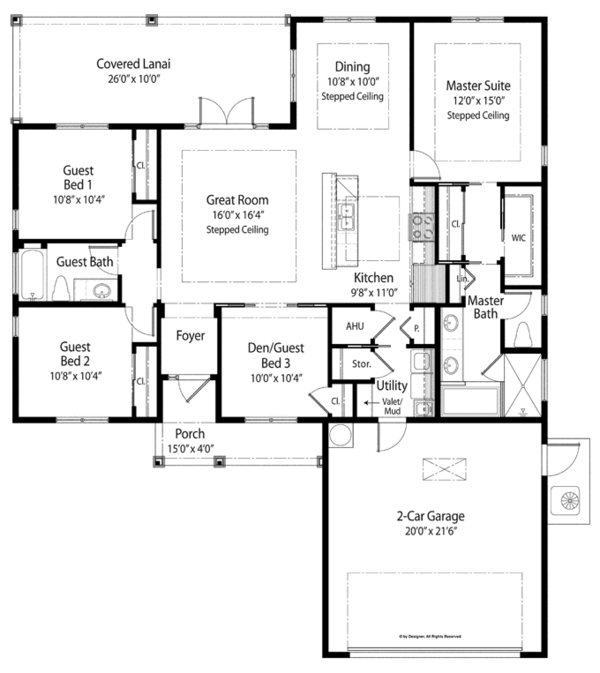

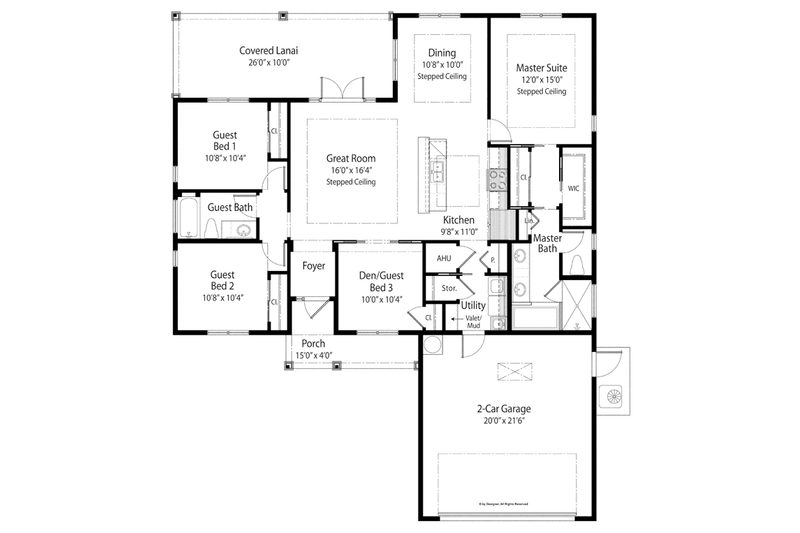

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 60'
Height : 20' 6"
Width : 50'
Area
First Floor: 1619 sq/ft
Garage: 462 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Storage Area
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
width 10' 8" x depth 10' 4"
Bedroom 3:
width 10' 8" x depth 10' 4"
Den:
width 10' x depth 10' 4"
Dining:
width 10' 8" x depth 10'
Front Porch:
83 sq/ft
Garage:
462 sq/ft width 20' x depth 21' 6"
Great Room:
width 16' x depth 16' 4"
Kitchen:
width 9' 8" x depth 11'
Master Suite:
width 12' x depth 15'
Rear Porch:
260 sq/ft width 26' x depth 10'
