PLAN 23-760

Key Specs

1625
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Floor Plans

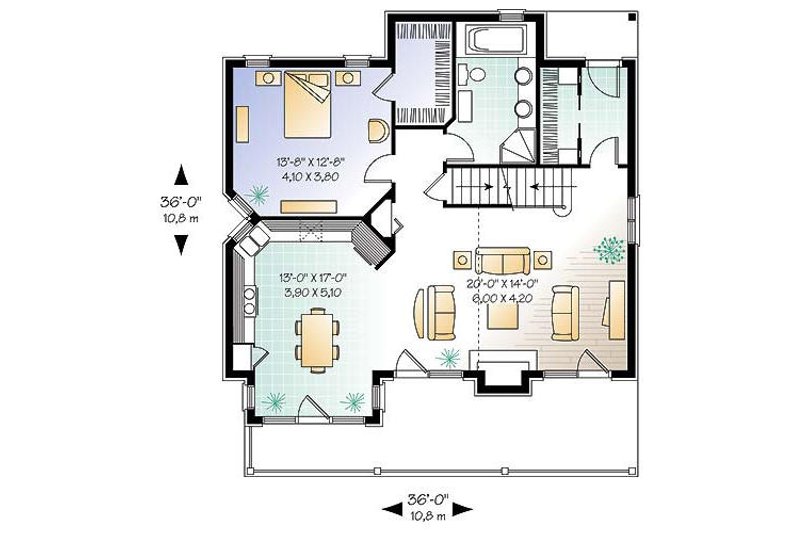

Floor Plan - Main Floor Plan

Reverse

Cottage Floor Plan - Main Floor Plan Plan #23-760

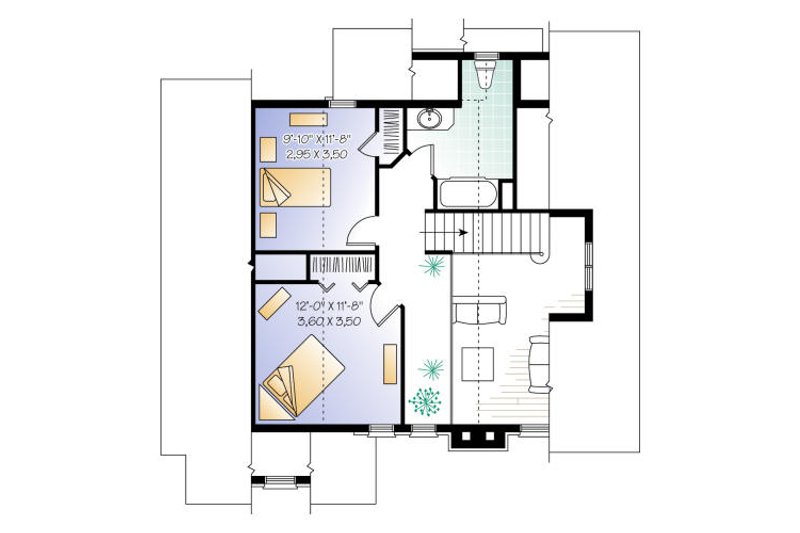

Floor Plan - Upper Floor Plan

Reverse

Cottage Floor Plan - Upper Floor Plan Plan #23-760

Full Specs & Features

Dimension

Depth : 36'
Height : 36'
Width : 36'

Area

First Floor: 1108 sq/ft height 8'
Second Floor: 517 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x6

Bedroom Features

Main Floor Bedrooms
Walk In Closet

Additional Room Features

Loft
Mud Room
Storage Area
Unfinished Future Space

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch

Suited For Vacation Home

Rooms

3rd BR Closet:

19 sq/ft width 3' 10" x depth 5'

Bathroom 2:

67 sq/ft width 5' 6" x depth 12' 4"

Bedroom 2:

140 sq/ft width 12' x depth 11' 8"

Bedroom 2 Closet:

10 sq/ft width 5' 4" x depth 2'

Bedroom 3:

114 sq/ft width 9' 10" x depth 11' 8"

Bedroom 3 Closet:

10 sq/ft width 5' 4" x depth 2'

Foyer:

33 sq/ft width 4' x depth 8' 4"

Linen Closet:

6 sq/ft width 2' x depth 3' 4"

Living Room:

280 sq/ft width 20' x depth 14'

Master Bathroom:

82 sq/ft width 6' 8" x depth 12' 4"

Master Bedroom:

173 sq/ft width 13' 8" x depth 12' 8"

Porch - Rear:

266 sq/ft width 33' 4" x depth 8'

Walk-In Closet:

43 sq/ft width 4' 10" x depth 9'
