PLAN 1060-385
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

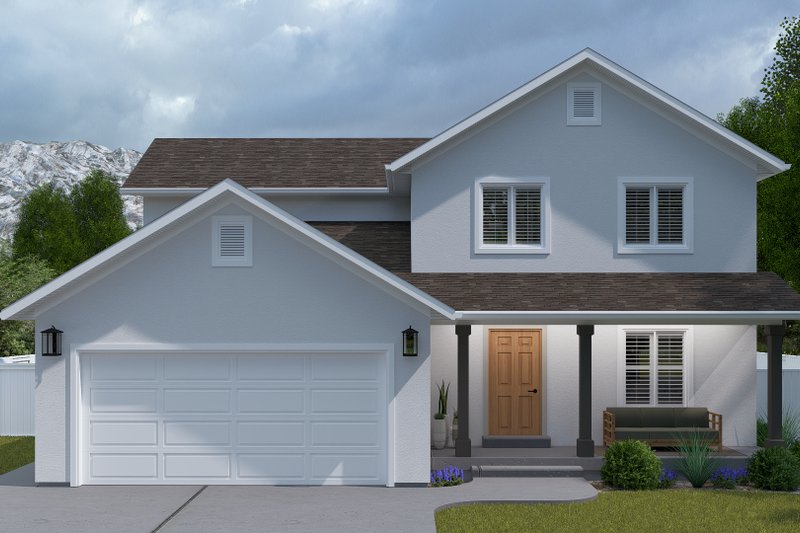

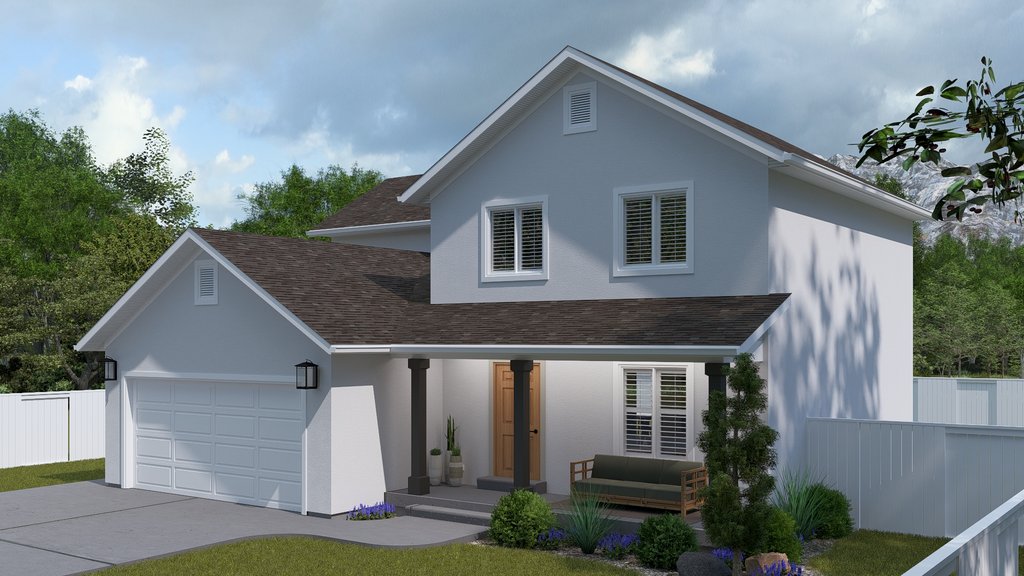

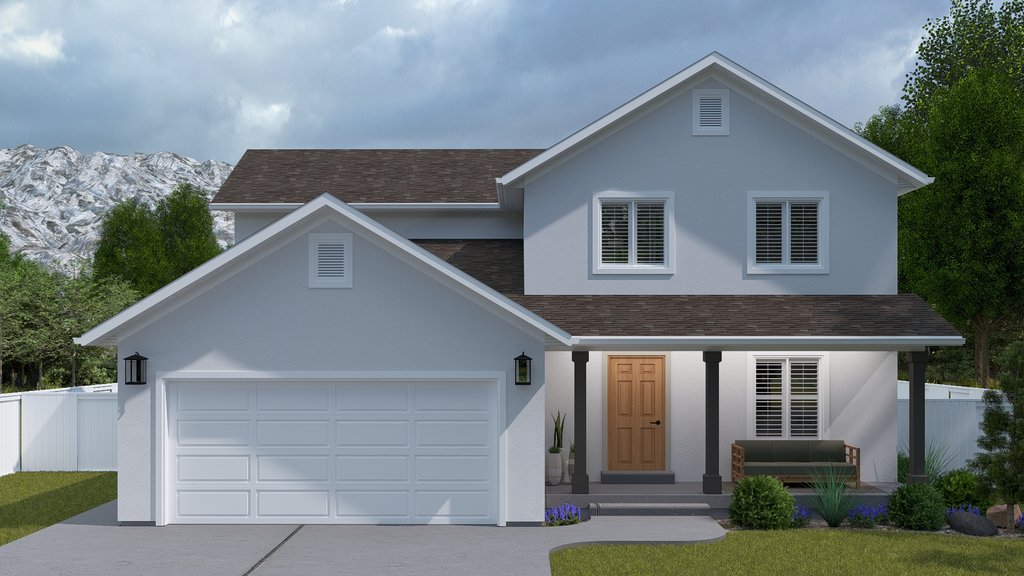

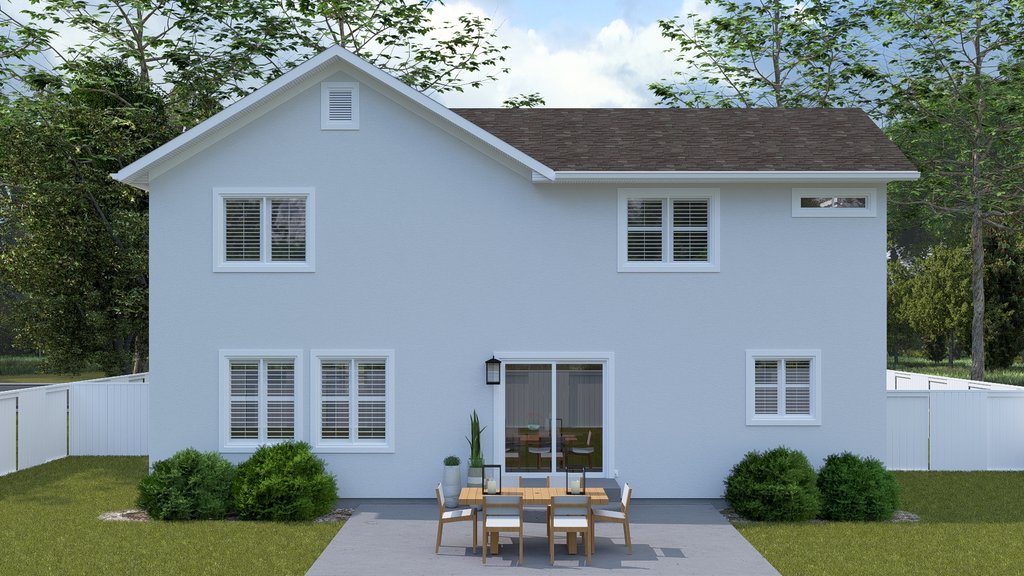

This traditional design floor plan is 1629 sq ft and has 3 bedrooms and 2.5 bathrooms.
Floor Plans

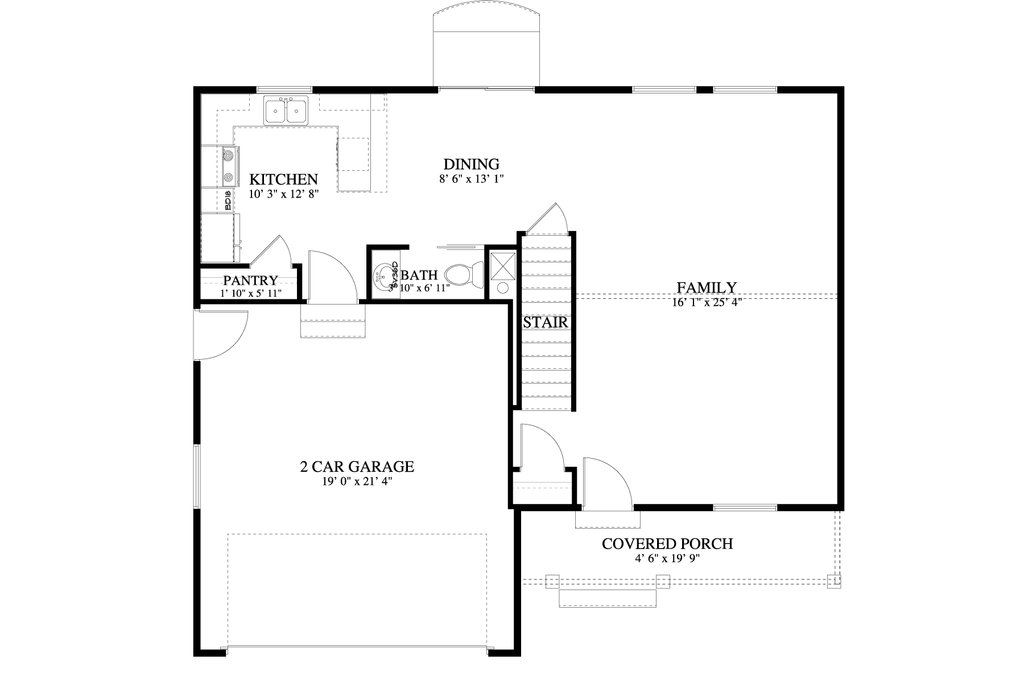

Floor Plan - Main Floor
Floor Plan - Upper Floor

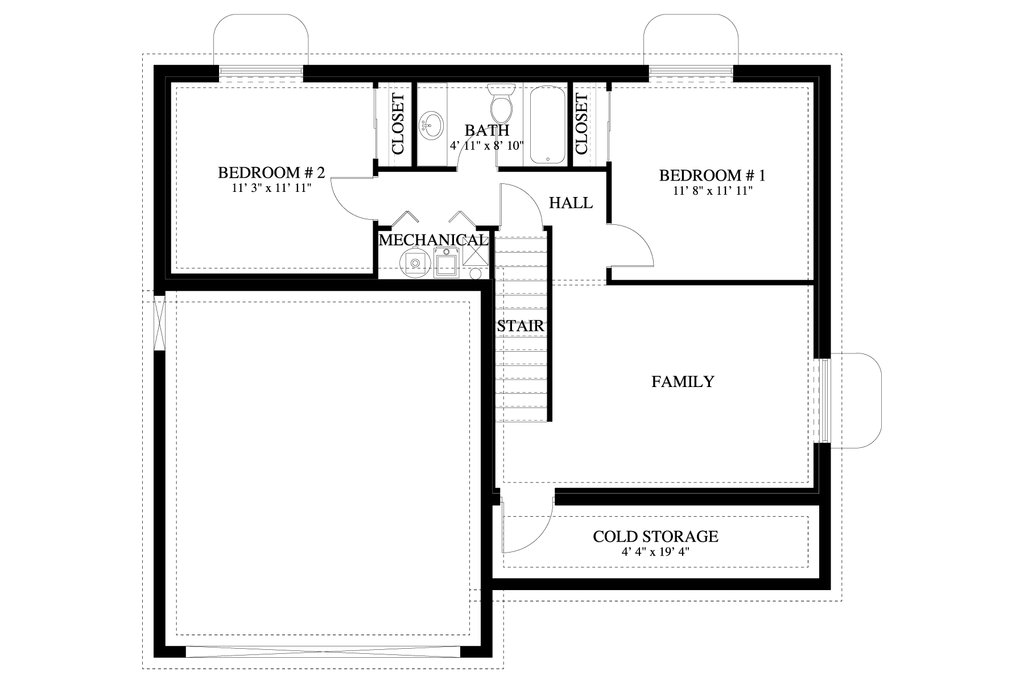

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 35'
Height : 23'
Width : 40'
Area
Garage : 431 sq/ft
Lower Floor : 898 sq/ft
Main Floor : 795 sq/ft
Porch : 92 sq/ft
Upper Floor : 834 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 9' 2"
Lower Ceiling : 8'
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 7/12
Roof Framing : TRUSS
Secondary Pitch : 5/12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2 x 4
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

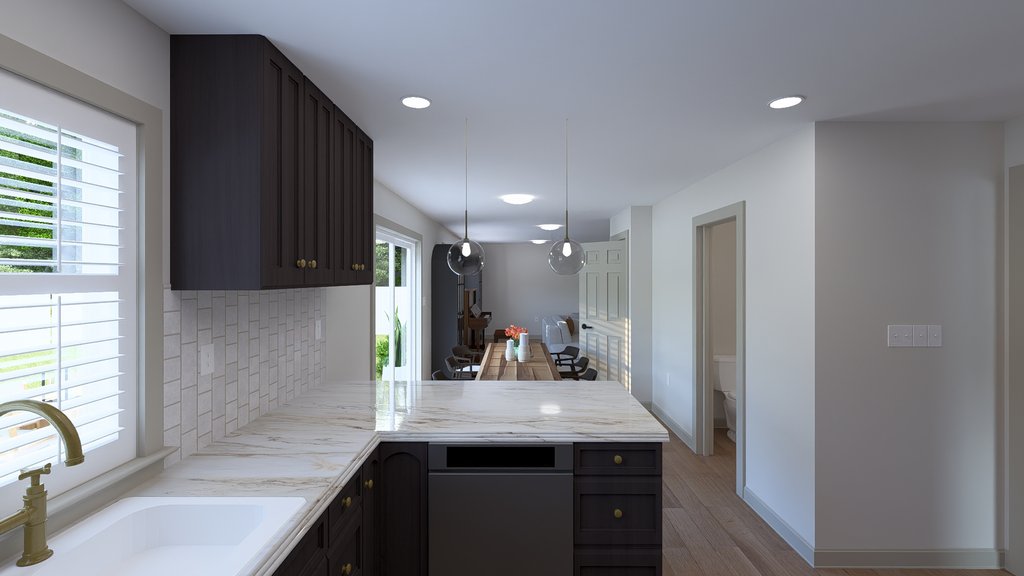

Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features

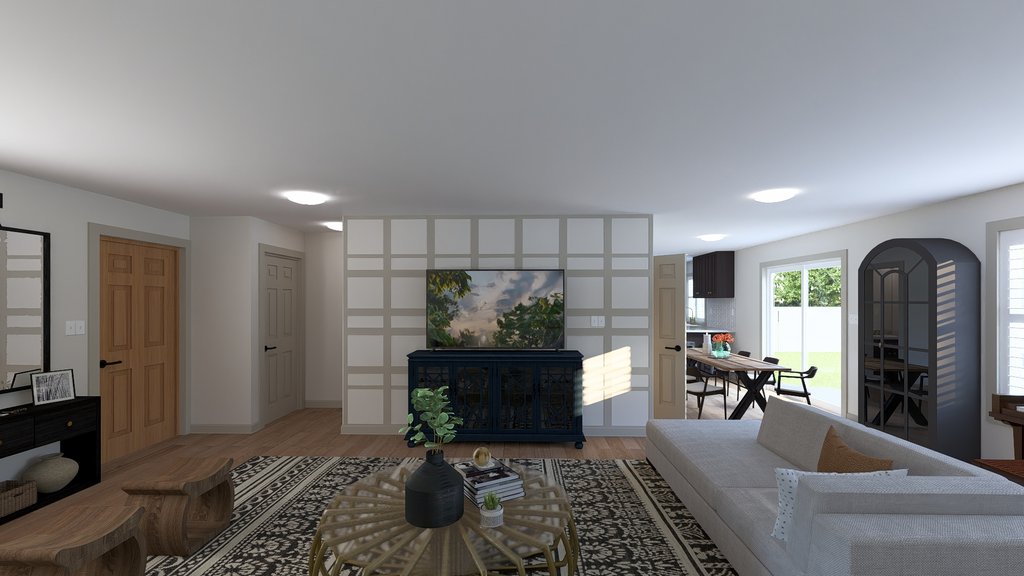

Family Room Keeping Room
Storage Area
Unfinished Future Space
Upstairs Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
More
Economical To Build
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.

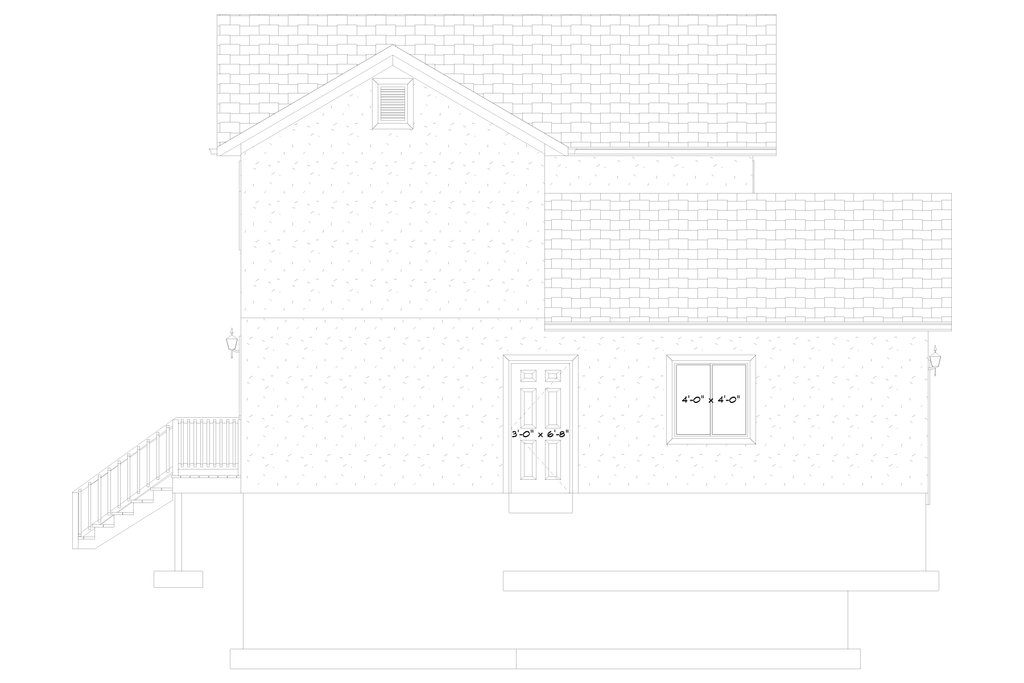

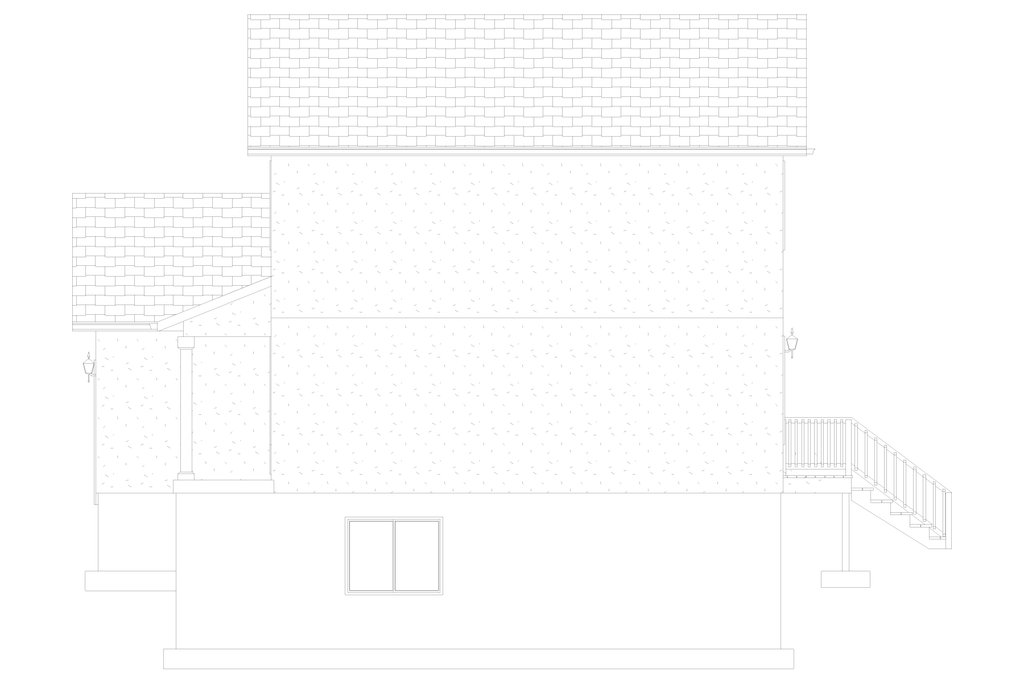

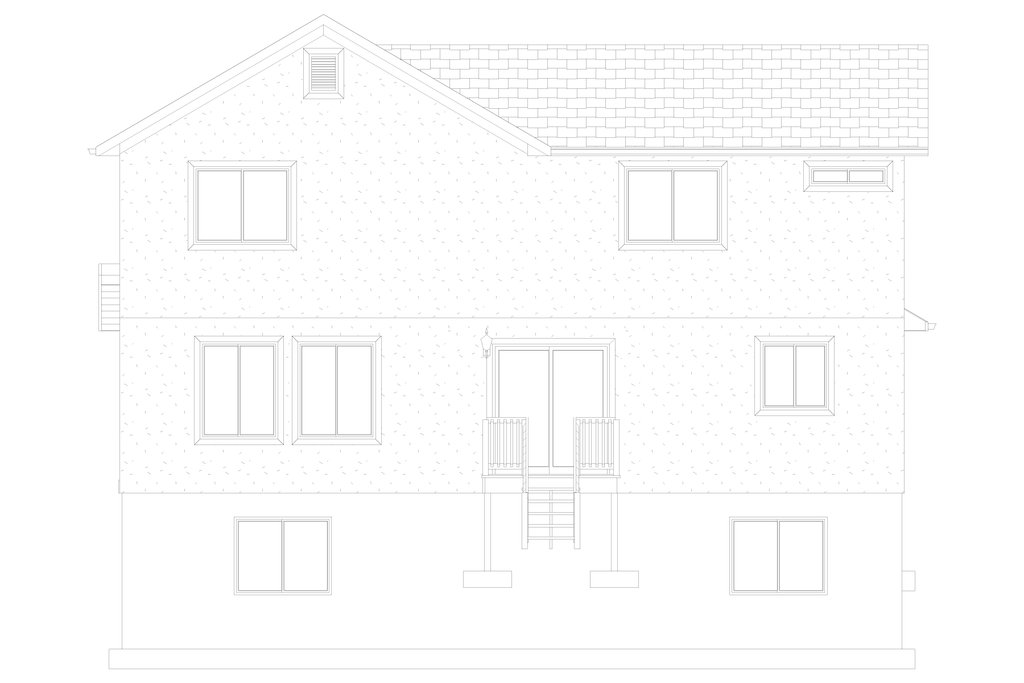

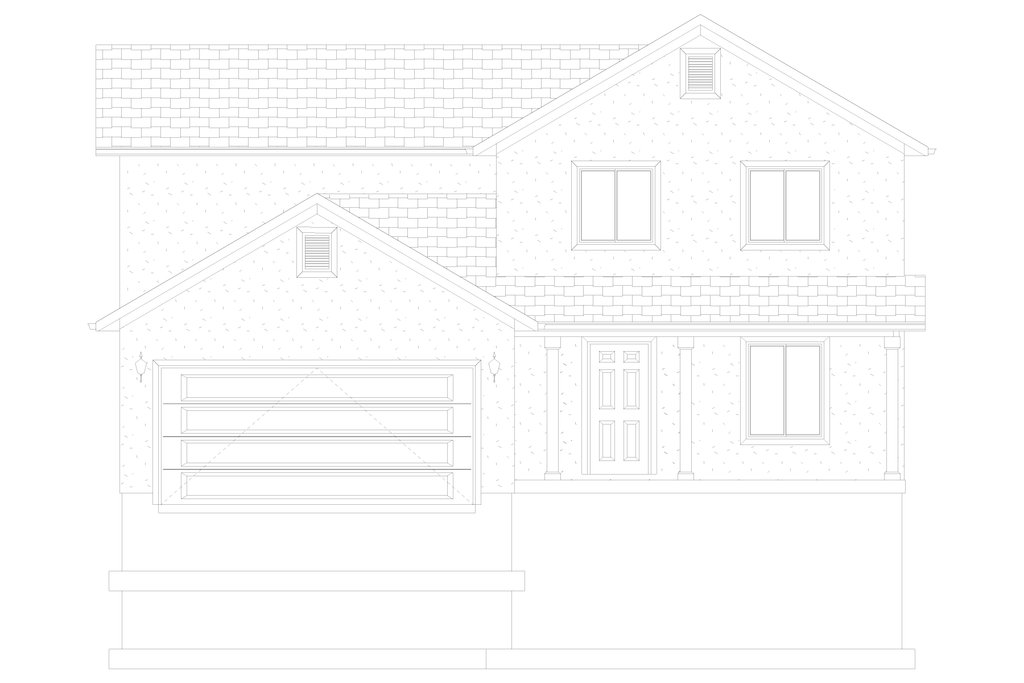

- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$977.50
$977.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1185.75
$1185.75
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$1317.50
$1317.50
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
PDF Unlimited Build:
$1440.75
$1440.75
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$1572.50
$1572.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
CAD Unlimited Build:
$1827.50
$1827.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$297.50
$297.50
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$297.50
$297.50
Ideal for sloping lot, lower level of home partially underground.
Floating Slab:
$297.50
$297.50
A concrete slab that covers the ground with no anchoring, it simply floats. Typical for garages and workshop plans.
Monolithic Slab:
$297.50
$297.50
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Walk Out Basement:
$297.50
$297.50
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$212.50
$212.50
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$165.75
$165.75
Choose this option to reverse your plans and to have the text and dimensions readable.
2 Car Side-Loading Garage:
$297.50
$297.50
Changes garage to side load
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
