PLAN #430-149

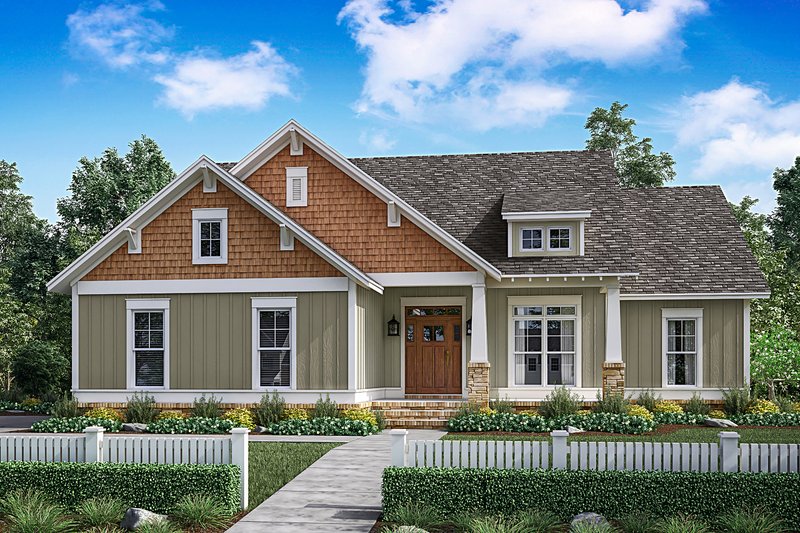

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$75.00/each
Subtotal
$945.00
Or order by phone: 1-888-447-1946
Cost-to-Build Estimates

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Got Questions?
Got Questions?
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #430-149

Key Specs


1657
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


This charming craftsman cottage features 3 bedrooms and open-concept living. A large great room with trayed ceiling is open to the well-equipped kitchen which includes a large island and eating bar. The entry area includes several great features such as a computer desk, lockers, and a large walk-in pantry. The bedrooms are all well-sized and the master suite includes dual vanities, large shower, and walk-in closet. An optional outdoor kitchen is also provided on the rear porch and is perfect for entertaining.

Floor Plans

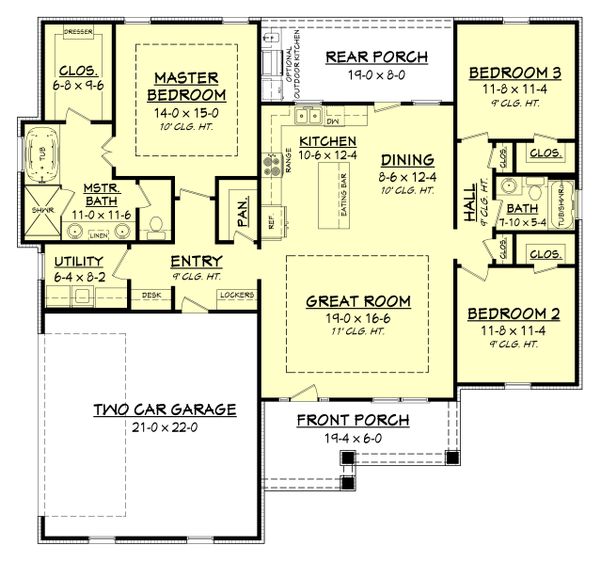

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #430-149

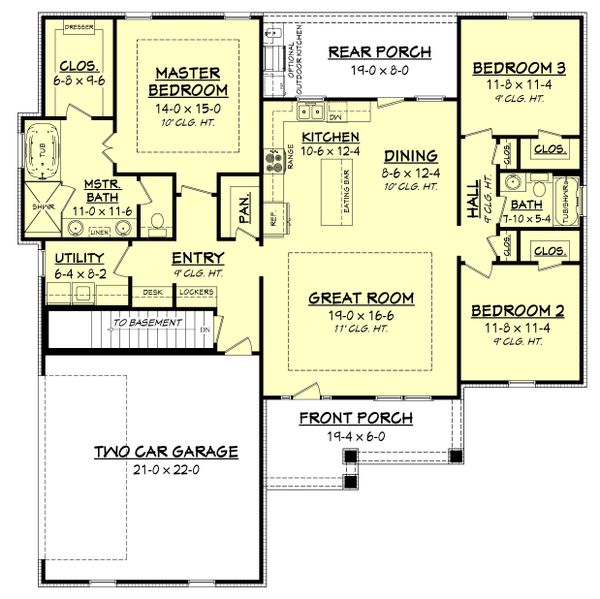

Floor Plan - Other Floor Plan
Craftsman Floor Plan - Other Floor Plan Plan #430-149

Full Specs & Features


Dimension
Depth : 51' 2"
Height : 24' 5"
Width : 55'
Area
First Floor: 1657 sq/ft height 9'
Garage: 481 sq/ft
Porch: 291 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : Stick
Primary Pitch : 8:12
Secondary Pitch : 9:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone & Siding
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Great Room Living Room
Main Floor Laundry
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$945.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$995.00
5 printed plan sets mailed to you.
CAD Set :
$1745.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$395.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$395.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$295.00
Wood 2x6

Additional Options

Material List :
195.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
