PLAN 513-2116

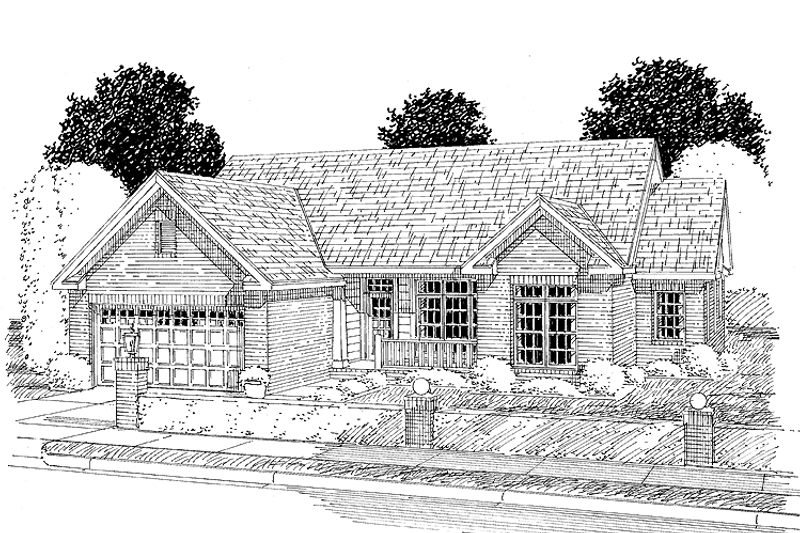

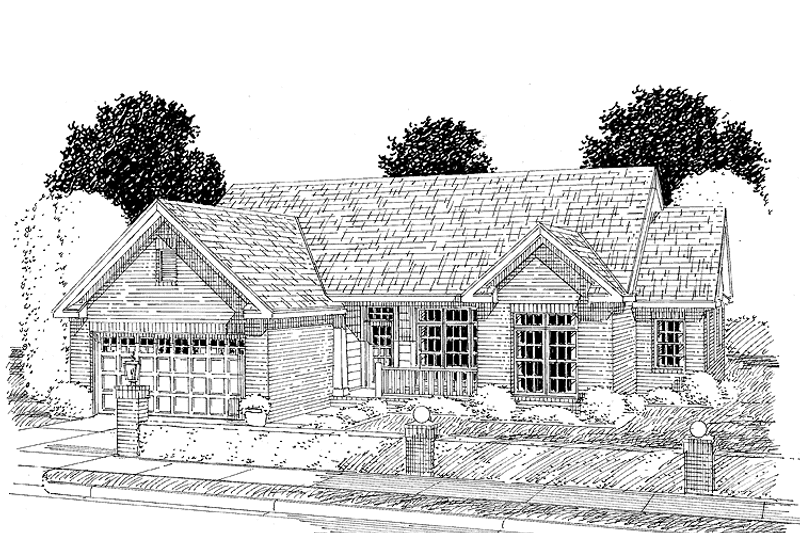

Home Plan - Traditional Exterior - Front Elevation Plan #513-2116
Home Plan - Traditional Exterior - Front Elevation Plan #513-2116

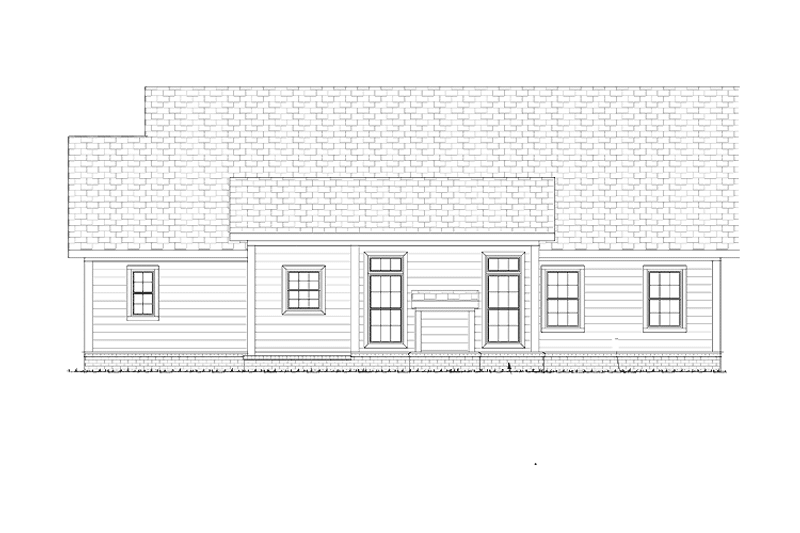

Home Plan - Traditional Exterior - Rear Elevation Plan #513-2116

Key Specs


1667
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?
Subtotal
$985.00
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
Now Just $17.99 for a Limited Time
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 513-2116

Key Specs


1667
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Full Specs & Features


Dimension
Depth : 56' 6"
Height : 23'
Width : 54'
Area
First Floor: 1667 sq/ft
Garage: 482 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Additional Room Features
Den Office Study Computer
Open Floor Plan
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

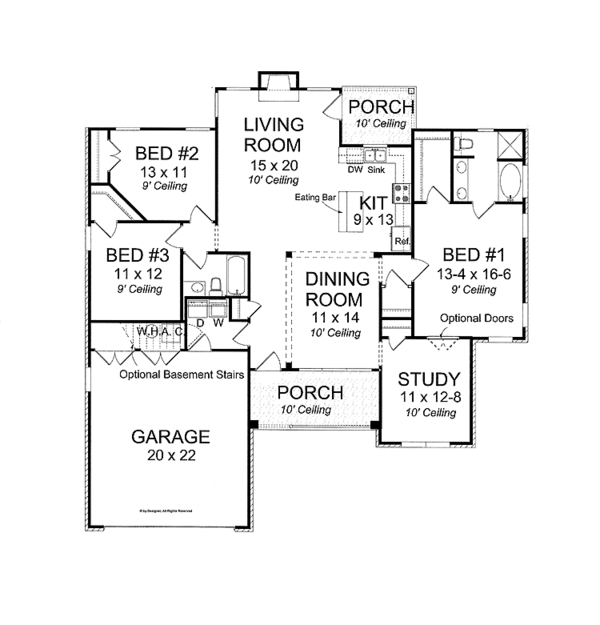

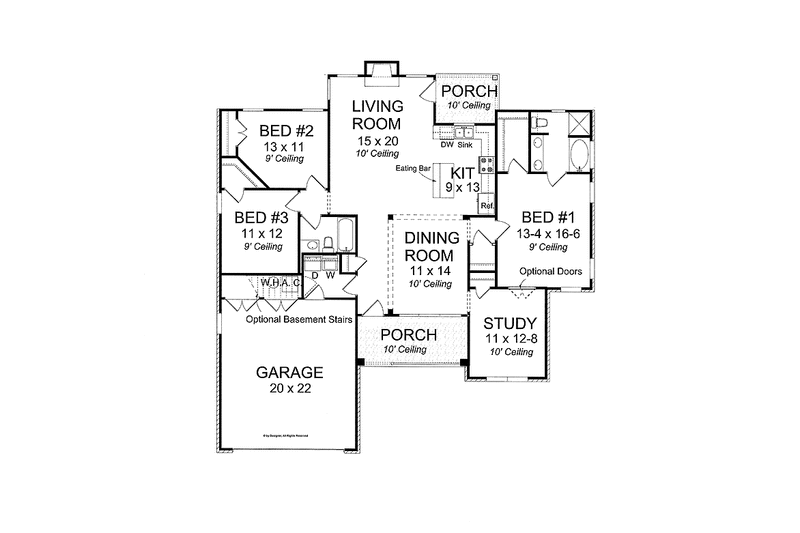

Rooms

Bathroom 2:

40 sq/ft width 8' x depth 5'

Bedroom 2:

143 sq/ft width 13' x depth 11'

Bedroom 3:

132 sq/ft width 11' x depth 12'

Dining Room:

154 sq/ft width 11' x depth 14'

Foyer:

63 sq/ft width 4' 6" x depth 14'

Garage:

440 sq/ft width 20' x depth 22'

Kitchen:

117 sq/ft width 9' x depth 13'

Kitchen Island:

15 sq/ft width 3' x depth 5'

Living Room:

300 sq/ft width 15' x depth 20'

Master Bathroom:

73 sq/ft width 8' 6" x depth 8' 8"

Master Bedroom:

219 sq/ft width 13' 4" x depth 16' 6"

Master Closet:

39 sq/ft width 4' 6" x depth 8' 8"

Study:

139 sq/ft width 11' x depth 12' 8"

Utility Room:

31 sq/ft width 5' 2" x depth 6' 2"

What's Included In This Plan Set


  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
PDF Set :
$985.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$1280.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$195.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$195.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$195.00
Wood 2x6

Additional Options

Right-Reading Reverse :
$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
