Plan Description
This traditional design floor plan is 1676 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

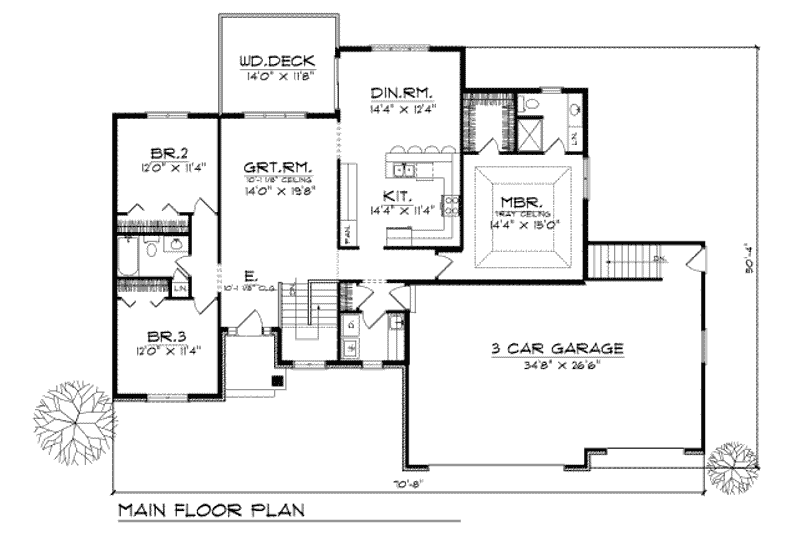

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 50' 4"
Height : 22'
Width : 70' 8"
Area
First Floor: 1676 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x6"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Great Room Living Room
Garage Features
Oversized Garage
Rooms
Bedroom 2:
135 sq/ft width 12' x depth 11' 4"
Bedroom 3:
135 sq/ft width 12' x depth 11' 4"
Dining Room:
176 sq/ft width 14' 4" x depth 12' 4"
Garage:
918 sq/ft width 34' 8" x depth 26' 6"
Kitchen:
162 sq/ft width 14' 4" x depth 11' 4"
Master Bathroom:
65 sq/ft width 8' 6" x depth 7' 8"
Master Bedroom:
214 sq/ft width 14' 4" x depth 15'
Master Closet:
47 sq/ft width 6' 2" x depth 7' 8"
Utility Room:
52 sq/ft width 8' 4" x depth 6' 4"
Wood Deck:
163 sq/ft width 14' x depth 11' 8"
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Cover sheet with front rendering
- Foundation Plan(s): Foundation plans at 1/4" = 1' scale
- Floor Plan(s): Floor plans at 1/4" = 1' scale
- Exterior Elevations: Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Building sections and details as required to construct the individual design
- Electrical Plan(s): Schematic electrical plans with suggested switch, outlet, and light fixture locations
- Kitchen Cabinet Elevation(s): Interior elevation of cabinets at 1/4" = 1' scale
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Specification(s): General specification design notes
