PLAN 47-656
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

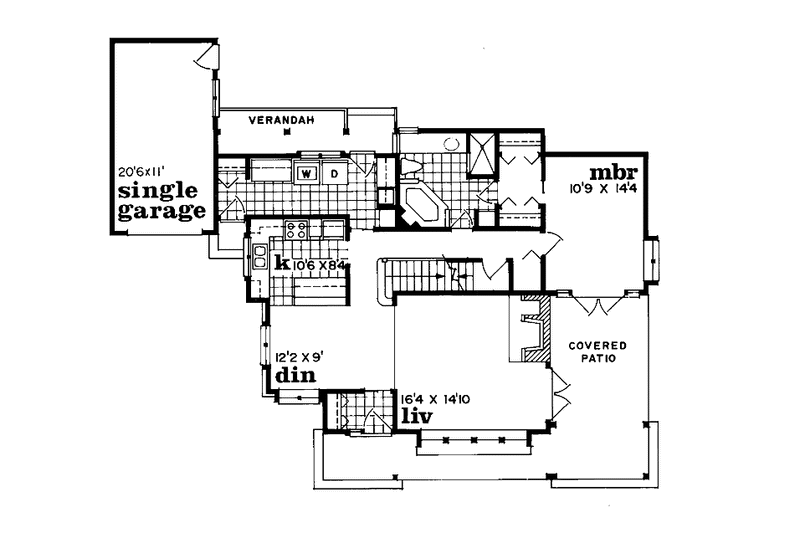

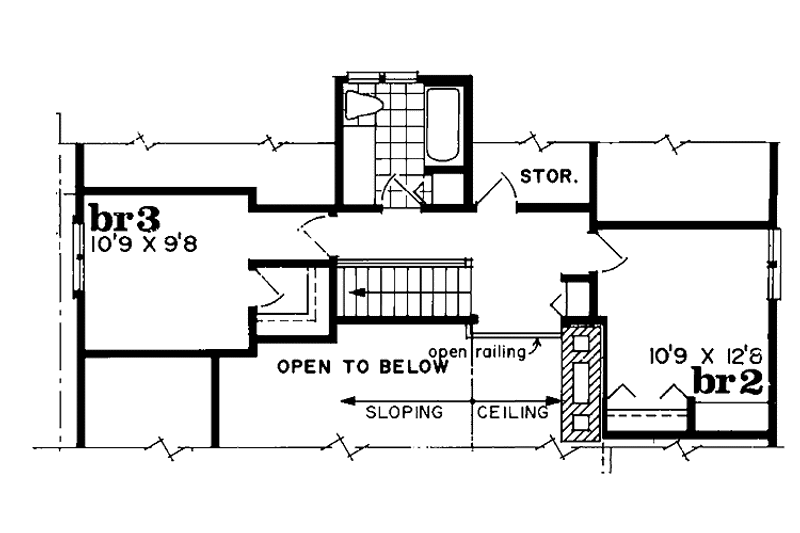

Floor Plans
Full Specs & Features
Dimension
Depth : 48'
Height : 25'
Width : 58'
Area
First Floor: 1185 sq/ft height 8'
Second Floor: 497 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Kitchen Features
Kitchenette Wet Bar
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
Rooms
3rd BR Closet:
16 sq/ft width 5' 7" x depth 3'
Basement Foundation:
1800 sq/ft width 38' 2" x depth 47' 2"
Bathroom 2:
49 sq/ft width 7' x depth 7'
Bedroom 2 Closet:
10 sq/ft width 2' x depth 5'
Bedroom 3:
103 sq/ft width 9' 8" x depth 10' 9"
Bedroom 3 Closet:
10 sq/ft width 2' x depth 5'
Bedroom 4:
103 sq/ft width 10' 9" x depth 9' 8"
Bedroom 4 Closet:
16 sq/ft width 3' x depth 5' 7"
Crawlspace Foundation:
1804 sq/ft width 38' 3" x depth 47' 2"
Dining Room:
109 sq/ft width 9' x depth 12' 2"
Garage:
210 sq/ft width 20' x depth 10' 6"
Hall:
25 sq/ft width 4' x depth 6' 4"
Hall Closet:
9 sq/ft width 2' x depth 4' 6"
Kitchen:
87 sq/ft width 8' 4" x depth 10' 6"
Laundry Room:
16 sq/ft width 5' x depth 3' 4"
Living Room:
242 sq/ft width 14' 10" x depth 16' 4"
Master Bathroom:
105 sq/ft width 10' 6" x depth 10'
Master Bedroom:
154 sq/ft width 14' 4" x depth 10' 9"
Master Closet:
9 sq/ft width 2' x depth 4' 7"
Porch - Front:
177 sq/ft width 5' x depth 35' 6"
Porch - Rear:
52 sq/ft width 2' 8" x depth 19' 6"
Porch - Right:
168 sq/ft width 15' 2" x depth 11' 1"
Utility Room:
16 sq/ft width 3' 4" x depth 5'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

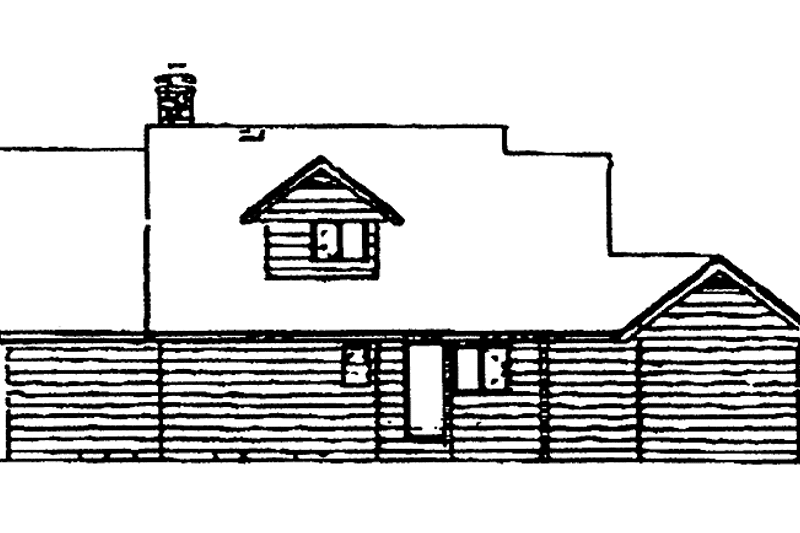

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1056.00
$1188.00
$1320.00
$1320.00
$2112.00
Foundation
$0.00
$0.00
$275.00
$275.00
Framing
$0.00
Additional Options
$195.00
$60.00
$495.00
$150.00
$495.00
$39.00
$150.00
$85.00
$0.00
$995.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
