PLAN 47-739

Select Plan Set Options

What's included?
Additional Construction Sets
$48.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$48.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $704.00
You save $176.00
(20% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 47-739

Key Specs


1691
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Decorative woodwork, multipane windows, and a turret roof adorn this home. The window-bay living room and the dining room, with a built-in buffet, are warmed by the masonry fireplace. The kitchen provides ample counter space, and the breakfast room, with a built-in desk and pantry, overlooks the sunken family room. The garage opens to a laundry/ mudroom and connecting half-bath. Space for future expansion is located in the basement. The master bedroom features a bay window, wall closet, and bathroom with shower.


Floor Plans

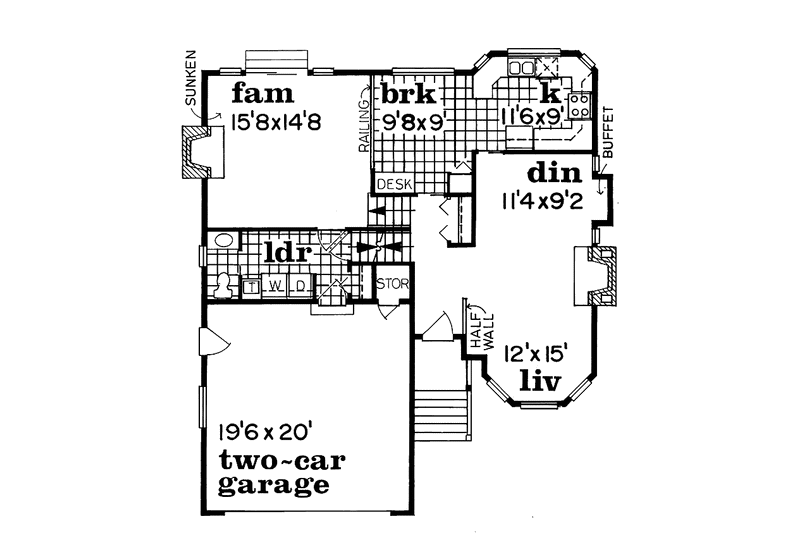

Floor Plan - Main Floor Plan
Reverse
Save

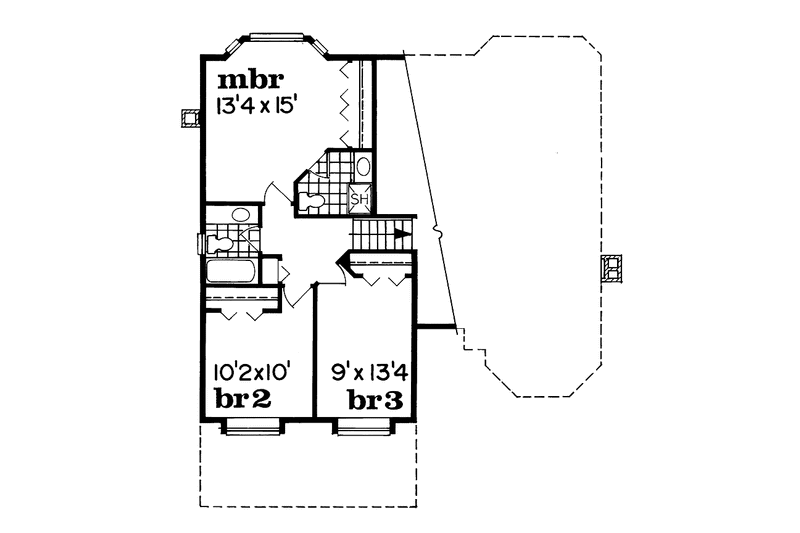

Floor Plan - Upper Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 44' 10"
Height : 25'
Width : 38'
Area
First Floor: 1013 sq/ft height 8'
Second Floor: 678 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
