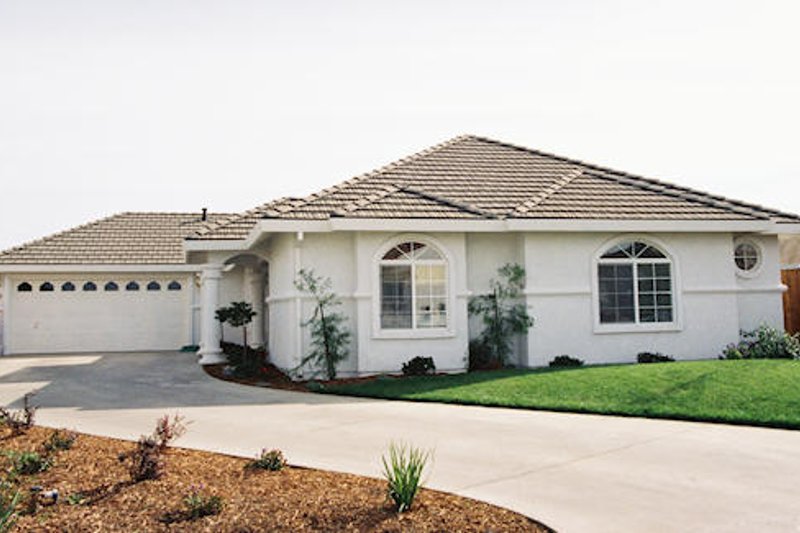

Home Plan - Mediterranean Exterior - Front Elevation Plan #437-9

Home Plan - Mediterranean Exterior - Other Elevation Plan #437-9

Home Plan - Mediterranean Exterior - Rear Elevation Plan #437-9

Home Plan - Mediterranean Floor Plan - Main Floor Plan #437-9

Jump to:
All (4)
Exterior (3)
Floor plans (1)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

1702
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$170.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1000.00 NOW $850.00

You save $150.00 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 437-9

Home > Style > Mediterranean

Key Specs

1702
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This mediterranean design floor plan is 1702 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

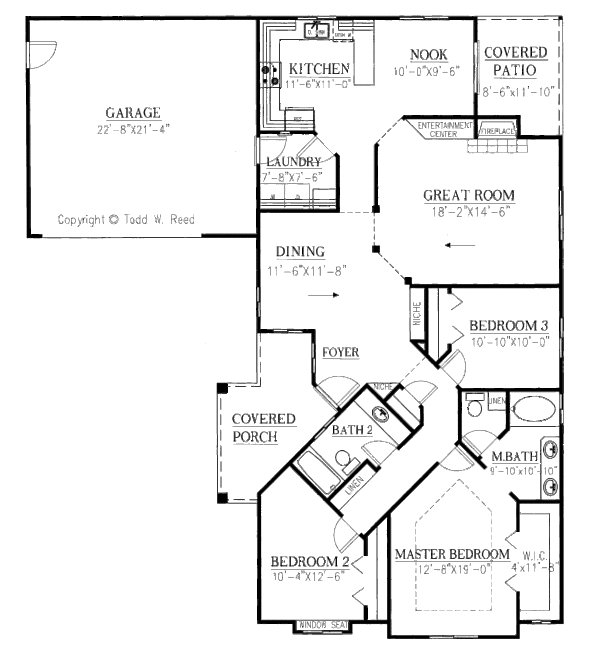

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 62'

Height : 16' 2"

Width : 53' 8"

Area

First Floor: 1702 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Ceiling heights are 8' unless noted with an arrow, then is is vaulted.

Main Ceiling : 8'

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Cement Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Additional Room Features

Great Room Living Room

Storage Area

Garage Features

Rear Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

129 sq/ft width 10' 4" x depth 12' 6"

Bedroom 3:

108 sq/ft width 10' 10" x depth 10'

Dining Room:

134 sq/ft width 11' 6" x depth 11' 8"

Great Room:

263 sq/ft width 18' 2" x depth 14' 6"

Laundry Room:

56 sq/ft width 7' 6" x depth 7' 6"

Master Bathroom:

106 sq/ft width 9' 10" x depth 10' 10"

Master Bedroom:

235 sq/ft width 12' 5" x depth 19'

Nook:

95 sq/ft width 10' x depth 9' 6"

What's Included In This Plan Set

See a sample plan set

Please note: This designer has the following the zip code restrictions: 30041, 30501, 30504, 30506, 30542, and 30566.

Exterior Elevations

Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).

Floor Plan(s)

Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.

Foundation Plan and Footings

The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.

Roof Plan

Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.

Building Sections & Details

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.

Notes and Details Page(s)

The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$850.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1020.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$170.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
