Plan Description

This traditional design floor plan is 1706 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

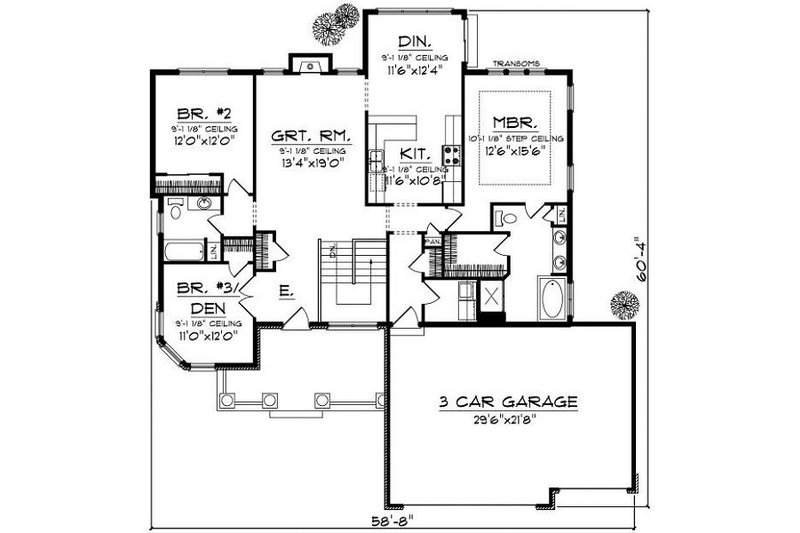

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 60' 4"

Height : 20' 4"

Width : 58' 8"

Area

First Floor: 1706 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Stone

Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Den Office Study Computer

Great Room Living Room

Garage Features

Oversized Garage

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 2 Closet:

16 sq/ft width 8' 2" x depth 2'

Bedroom 3 Closet:

8 sq/ft width 3' 3" x depth 2' 8"

Coat Closet:

8 sq/ft width 2' x depth 4' 4"

Den/Office or Bedroom 3:

132 sq/ft width 11' x depth 12'

Dining Room:

141 sq/ft width 11' 6" x depth 12' 4"

Foyer:

86 sq/ft width 7' 10" x depth 11'

Garage:

639 sq/ft width 29' 6" x depth 21' 8"

Great Room:

253 sq/ft width 13' 4" x depth 19'

Hall:

16 sq/ft width 3' 3" x depth 5'

Hall:

21 sq/ft width 6' 10" x depth 3' 2"

Hall Bathroom:

58 sq/ft width 7' 2" x depth 8' 2"

Hall Closet:

8 sq/ft width 2' x depth 4' 4"

Kitchen:

122 sq/ft width 11' 6" x depth 10' 8"

Laundry Room:

33 sq/ft width 6' 5" x depth 5' 2"

Master Bathroom:

151 sq/ft width 10' 8" x depth 14' 2"

Master Bedroom:

193 sq/ft width 12' 6" x depth 15' 6"

Master Closet:

40 sq/ft width 7' 8" x depth 5' 3"

Porch - Front:

213 sq/ft width 20' 8" x depth 10' 4"

What's Included In This Plan Set

See a sample plan set

Plans are typically drawn to ¼” scale and include:

Cover Sheet: Cover sheet with front rendering
Foundation Plan(s): Foundation plans at 1/4" = 1' scale
Floor Plan(s): Floor plans at 1/4" = 1' scale
Exterior Elevations: Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Building Section(s): Building sections and details as required to construct the individual design
Electrical Plan(s): Schematic electrical plans with suggested switch, outlet, and light fixture locations
Kitchen Cabinet Elevation(s): Interior elevation of cabinets at 1/4" = 1' scale
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Specification(s): General specification design notes

Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Questions? Call 1-888-447-1946

Plan Set

5 Copy Set:
$868.70

5 printed plan sets mailed to you.

8 Copy Set:
$906.95

8 printed plan sets mailed to you.

PDF Set:
$1084.60

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1084.60

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$1714.45

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$335.75

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$335.75

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$335.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$68.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$63.75

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
