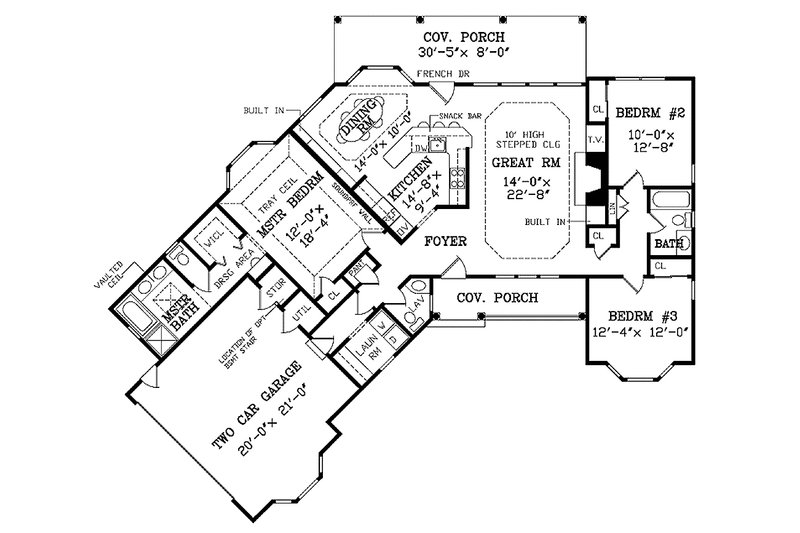

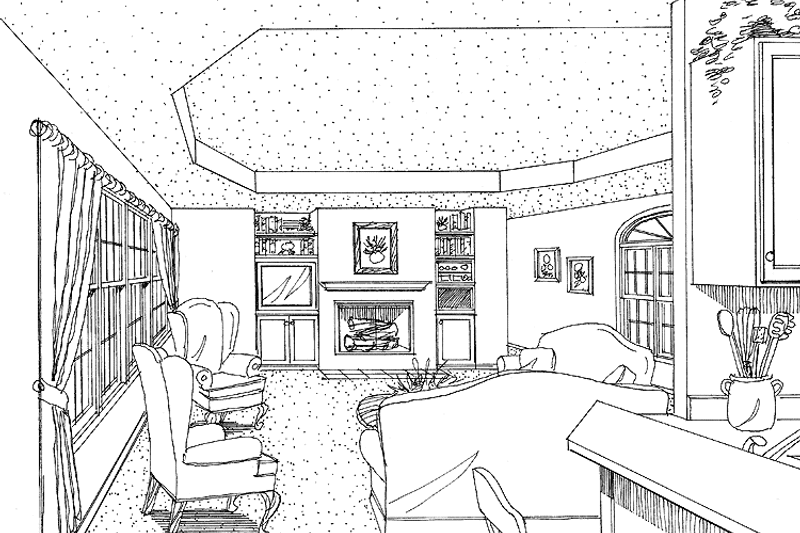

This angled, country-style ranch home is designed to fit about any lot. Four bay windows and two dormers distinguish the exterior. A recessed, covered front porch opens to the foyer, which is visually connected to the adjoining great room. The great room features a fireplace and built-ins for media. The great room is a "pavilion-style" area with windows at the front and rear. A dramatic angled kitchen with a snack bar faces the rear porch. A private master suite contains a tray ceiling, a dressing area, two closets, and a compartmented five-fixture bath. Two other bedrooms, one set into an attractive front bay, share a full bath. The unusual-shaped kitchen, which looks out over the covered porch, is easily served by the kitchen. A convenient half-bath is located off the foyer.
3rd BR Closet:
10 sq/ft width 5' x depth 2'
40 sq/ft width 5' x depth 8'
126 sq/ft width 10' x depth 12' 8"
Bedroom 2 Closet:
8 sq/ft width 4' 4" x depth 2'
123 sq/ft width 12' 4" x depth 10'
Bedroom 3 Closet:
8 sq/ft width 4' 4" x depth 2'
150 sq/ft width 10' x depth 15'
64 sq/ft width 8' x depth 8'
380 sq/ft width 19' x depth 20'
60 sq/ft width 15' x depth 4'
317 sq/ft width 14' x depth 22' 8"
width 3' 4" x depth 0"
7 sq/ft width 3' 9" x depth 2'
136 sq/ft width 14' 8" x depth 9' 4"
41 sq/ft width 8' 4" x depth 5'
95 sq/ft width 11' 6" x depth 8' 4"
219 sq/ft width 12' x depth 18' 4"
26 sq/ft width 5' 8" x depth 4' 8"
Porch - Front:
91 sq/ft width 18' 4" x depth 5'
Porch - Rear:
220 sq/ft width 30' 1" x depth 7' 4"
30 sq/ft width 6' x depth 5'
12 sq/ft width 4' x depth 3'
