PLAN 929-577
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 929-577
Key Specs
1724
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
Stylish and sensible, this modest-size home makes the most of its square footage and is ready for expansion with a skylit bonus room. Taking the floor plan to new heights is a cathedral ceiling in the great room and tray ceilings in both the dining room and master bedroom. Triplet windows are fashionable additions to the breakfast area and master bedroom, and a box-bay window adds a special touch to the garage. The foyer opens to the great room and dining room for effortless gatherings. A full-size bath is strategically located for easy accessibility from any part of the home. The master suite is a haven, complete with a spacious walk-in closet, His and Hers lavatories, a garden tub, and a large shower.
Floor Plans

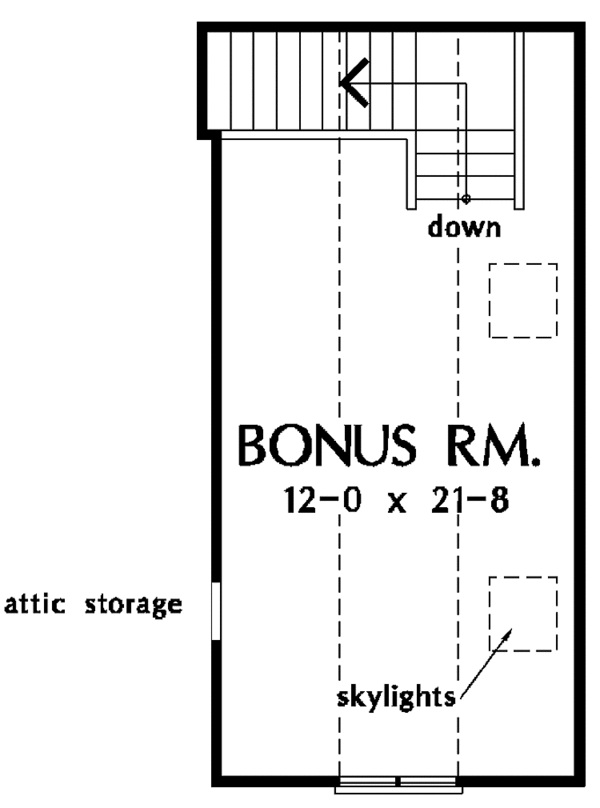

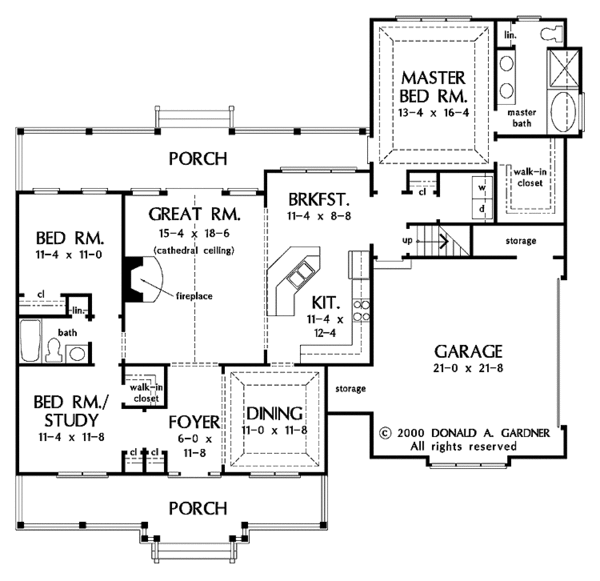

Floor Plan - Main Floor Plan
