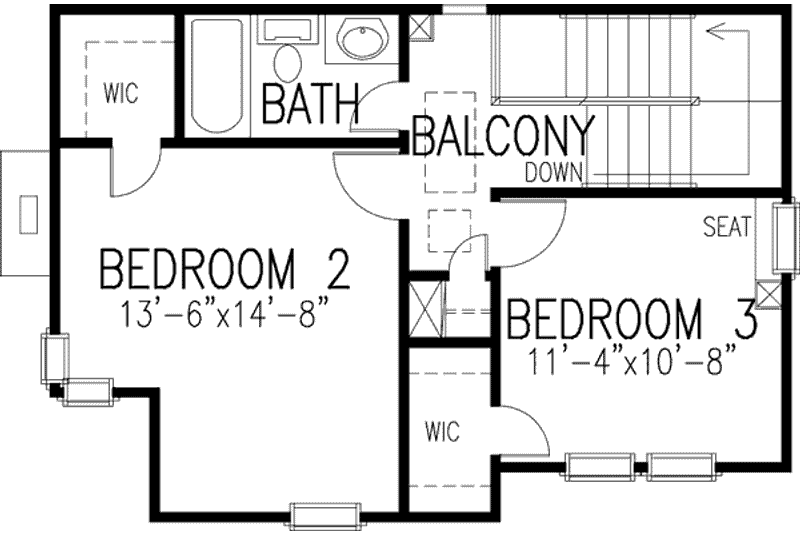

198 sq/ft width 13' 6" x depth 14' 8"
120 sq/ft width 11' 4" x depth 10' 8"

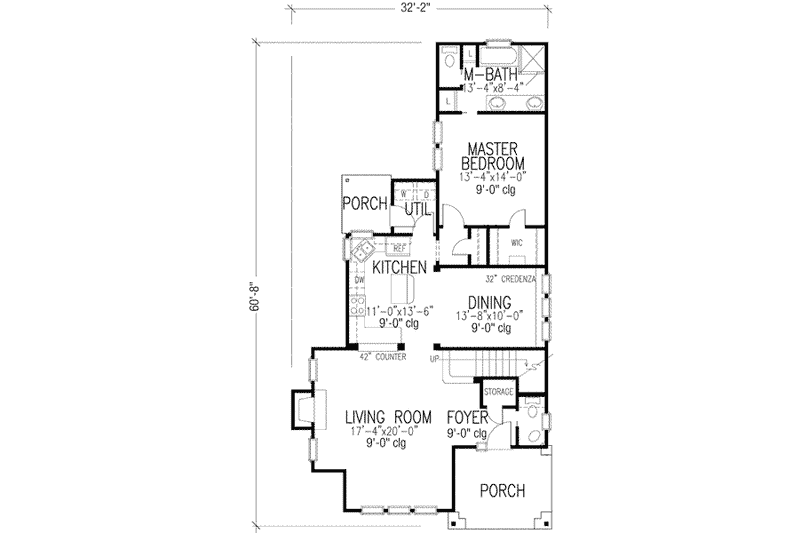

136 sq/ft width 13' 8" x depth 10'
148 sq/ft width 11' x depth 13' 6"
346 sq/ft width 17' 4" x depth 20'
111 sq/ft width 13' 4" x depth 8' 4"
186 sq/ft width 13' 4" x depth 14'
All plans are drawn at ¼” scale or larger and include :
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
