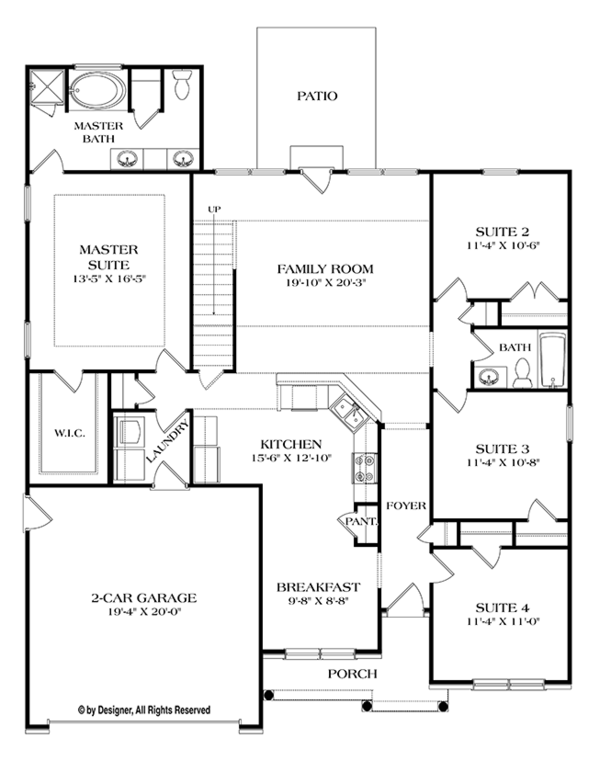

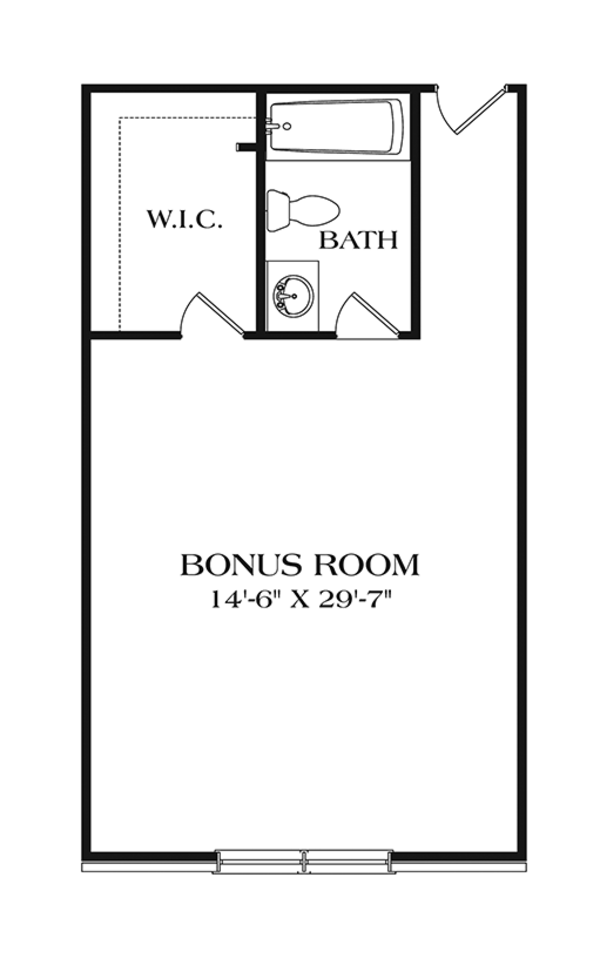

With a centrally located open living area providing an expansive feel, this efficient split bedroom plan offers feels much larger than it's small footprint. Versatility can be had by leaving suite 4 open to the foyer for use as a dining room or home office. The optional upper level bonus space is planned with a bath and walk-in closet making it a possible 5th bedroom suite, game room or home theater.
84 sq/ft width 9' 8" x depth 8' 8"
Covered Front Porch:
402 sq/ft width 19' 10" x depth 20' 3"
403 sq/ft width 19' 4" x depth 20'
200 sq/ft width 15' 6" x depth 12' 10"
220 sq/ft width 13' 5" x depth 16' 5"
119 sq/ft width 11' 4" x depth 10' 6"
121 sq/ft width 11' 4" x depth 10' 8"
125 sq/ft width 11' 4" x depth 11'
