PLAN 453-632
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

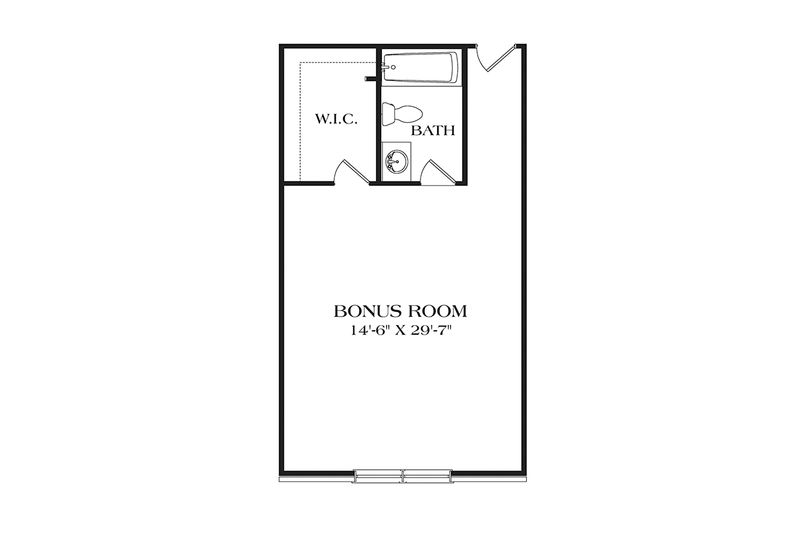

With a centrally located open living area providing an expansive feel, this efficient split bedroom plan offers feels much larger than it's small footprint. Versatility can be had by leaving suite 4 open to the foyer for use as a dining room or home office. The optional upper level bonus space includes a planned bath and walk-in closet making it a possible 5th bedroom suite, game room or home theater.
Floor Plans

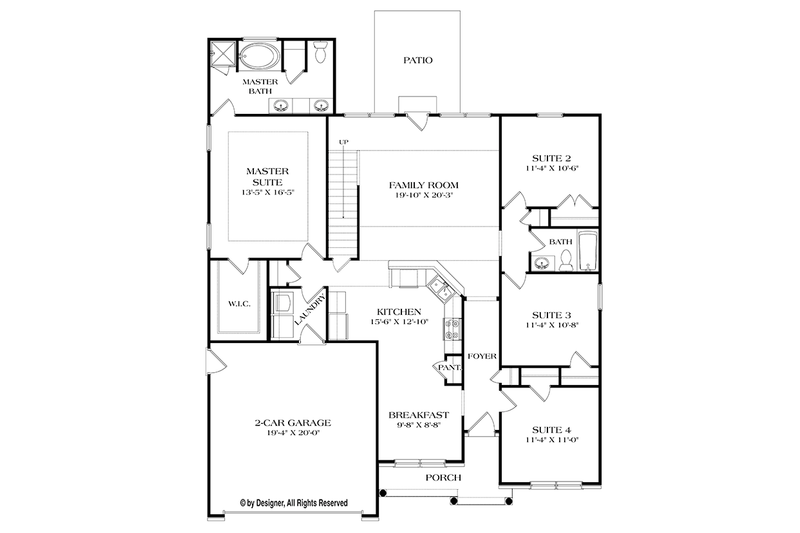

Floor Plan - Main Floor
Floor Plan - Other Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 55' 11"
Height : 23' 10"
Width : 46'
Area
Bonus: 459 sq/ft
First Floor: 1748 sq/ft height 9'
Garage: 403 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Storage Area
Unfinished Future Space
Outdoor Spaces
Courtyard
Covered Rear Porch
Rooms
Breakfast:
84 sq/ft width 9' 8" x depth 8' 8"
Covered Front Porch:
74 sq/ft
Family Room:
402 sq/ft width 19' 10" x depth 20' 3"

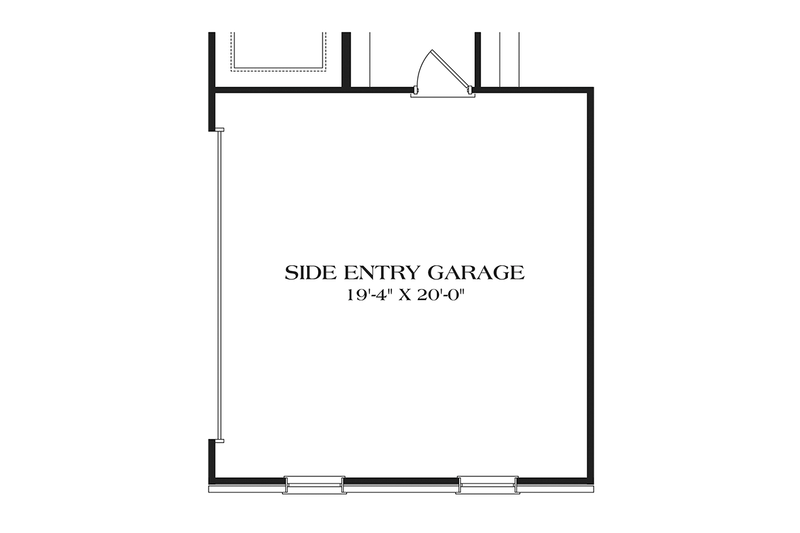

Garage:
403 sq/ft width 19' 4" x depth 20'
Kitchen:
200 sq/ft width 15' 6" x depth 12' 10"
Master Suite:
220 sq/ft width 13' 5" x depth 16' 5"
Suite 2:
119 sq/ft width 11' 4" x depth 10' 6"
Suite 3:
121 sq/ft width 11' 4" x depth 10' 8"
Suite 4:
125 sq/ft width 11' 4" x depth 11'
