PLAN 1016-74

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

In Portsmouth, New Hampshire is a place called "Strawberry Banke", a place near the ocean so named because strawberries grew on its banks. One of the houses there is shown here. The exterior represents the business-like symmetry of the period but nicely detailed window trim, wide trim boards and a brick faced foundation softens the approach. Upon entering, we see that the living room is usually anchored by a fireplace and built in cabinets. To the left is the large first floor master bedroom with a private bath and walk in closet. On, we find a country kitchen with an island counter containing the range and a snack bar. Beyond the sliding doors is a wood deck. Upstairs there are two large bedrooms and one smaller bedroom that share a bath. Linens are stored in the built in cabinets at the head of the stairs.

Floor Plans

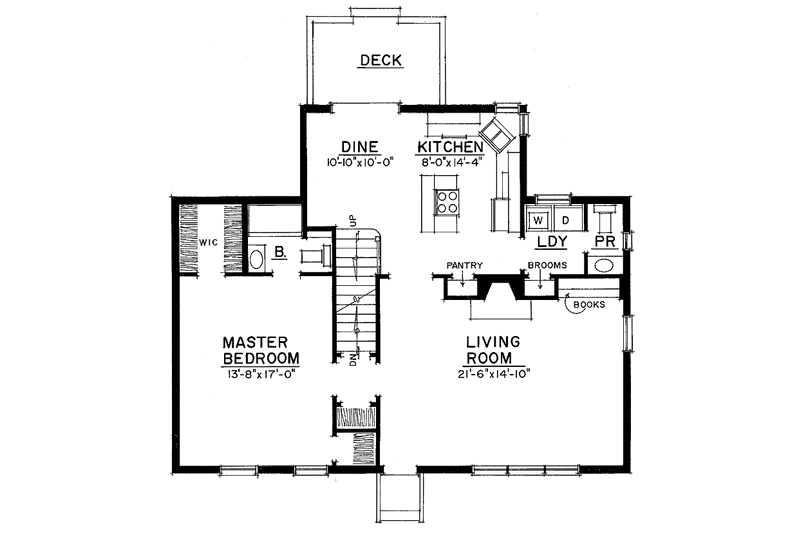

Floor Plan - Main Floor Plan

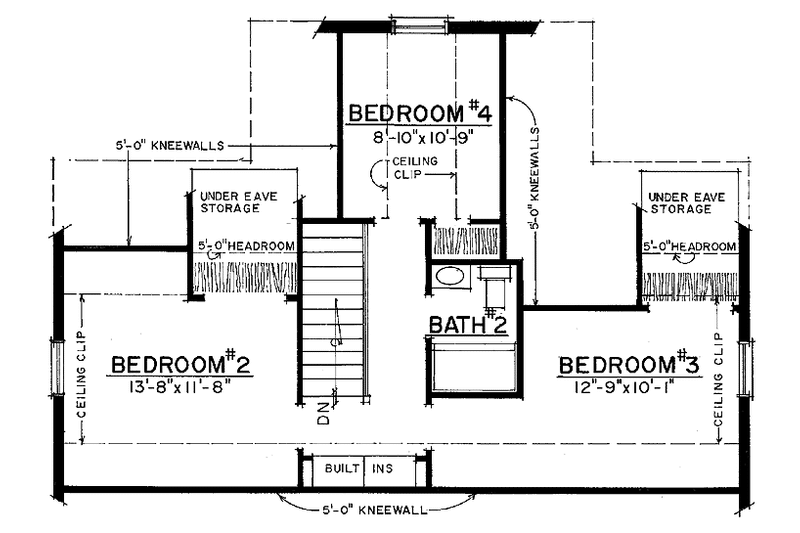

Floor Plan - Upper Floor Plan

Full Specs & Features

Depth : 32'
Height : 24'
Width : 40'
First Floor: 1116 sq/ft
Second Floor: 659 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 12:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Outdoor Spaces

Basement Foundation:

1216 sq/ft width 38' x depth 32'

Bathroom 2:

37 sq/ft width 5' x depth 7' 6"

Bedroom 2:

145 sq/ft width 13' 8" x depth 10' 8"

Bedroom 2 Closet:

18 sq/ft width 3' x depth 6'

Bedroom 3:

127 sq/ft width 10' x depth 12' 9"

Bedroom 3 Closet:

17 sq/ft width 3' x depth 5' 8"

Bedroom 4:

96 sq/ft width 9' x depth 10' 9"

Bedroom 4 Closet:

7 sq/ft width 3' 11" x depth 2'

Coat Closet:

7 sq/ft width 2' x depth 3' 6"


96 sq/ft width 12' x depth 8'


513 sq/ft width 23' 4" x depth 22'


80 sq/ft width 8' x depth 10'

Kitchen Island:

15 sq/ft width 3' x depth 5'

Laundry Room:

33 sq/ft width 5' 3" x depth 6' 4"

Master Bathroom:

42 sq/ft width 7' x depth 6'

Master Bedroom:

232 sq/ft width 13' 8" x depth 17'

Master Closet:

34 sq/ft width 5' 8" x depth 6'


3 sq/ft width 1' 6" x depth 2' 7"

Powder Room:

18 sq/ft width 3' x depth 6' 4"

Wood Deck:

96 sq/ft width 12' x depth 8'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

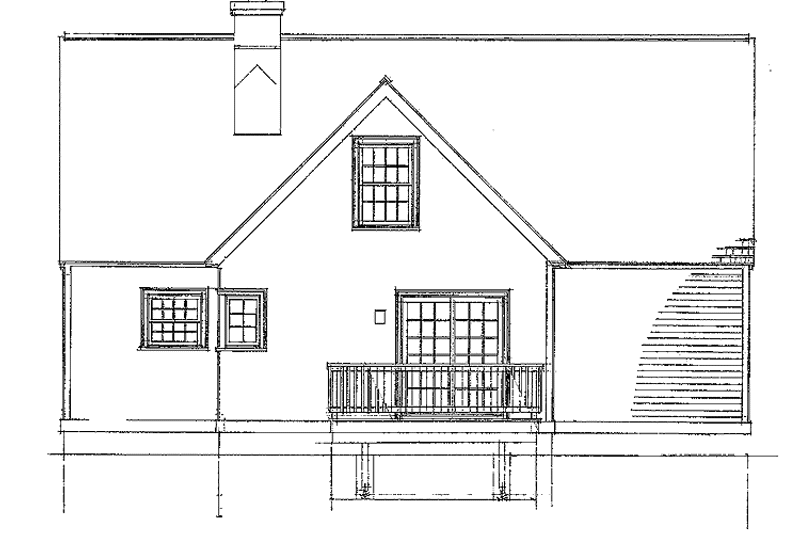

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


Ideal for level lot, lower level of home partially or fully underground.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
