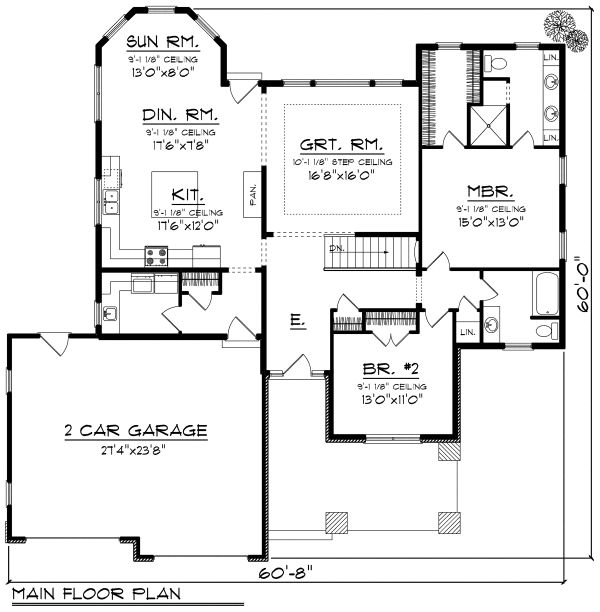

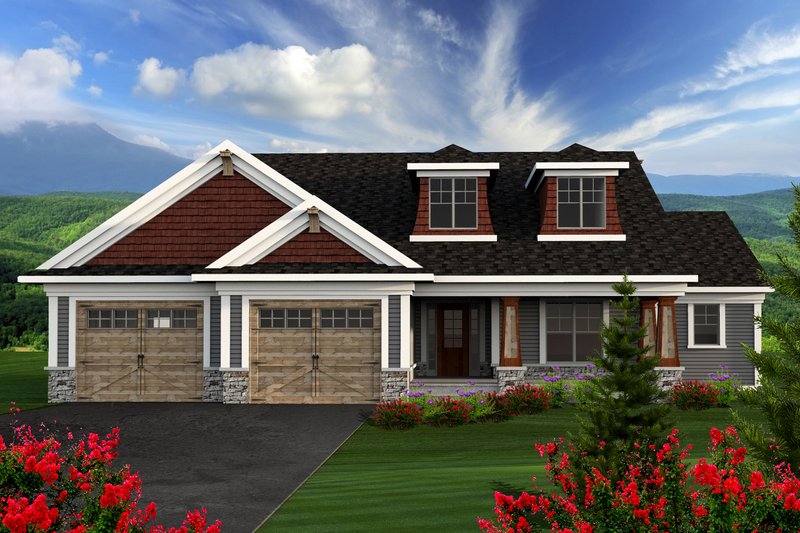

This craftsman ranch is abundant in size and impressive in detail. Massive columns define a spacious front porch while barn door-style garage doors, stone and shingle siding all complement each other to create maximum curb appeal. Inside, an open concept floor plan design takes advantage of every inch of living space. The kitchen features an island with eating area that overlooks the dining room and nook to the back of the home. The living room lies adjacent and includes a step ceiling and a wall of windows that provide plenty of natural light to the living space. The master suite lies to the right of the home and includes a walk-in closet and dual sinks. The second bedroom lies to the front of the home just to the right of the entry. A two-stall garage completes this home.
width 13' x depth 11'
Bedroom 2 Closet:
width 5' 7" x depth 2' 1"
Covered Front Porch:
width 21' x depth 17'
width 17' 6" x depth 7' 8"
width 7' x depth 6' 9"
645 sq/ft width 27' 4" x depth 23' 8"
width 16' 8" x depth 16'
width 16' 4" x depth 4' 2"
width 8' 4" x depth 7' 11"
Hall Closet 1:
width 4' 1" x depth 2' 1"
Hall Closet 2:
width 3' 2" x depth 2' 1"
width 17' 6" x depth 12'
width 8' 5" x depth 6' 9"
width 6' 4" x depth 10' 6"
width 8' 4" x depth 10' 6"
width 15' x depth 13'
width 13' x depth 8'
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
