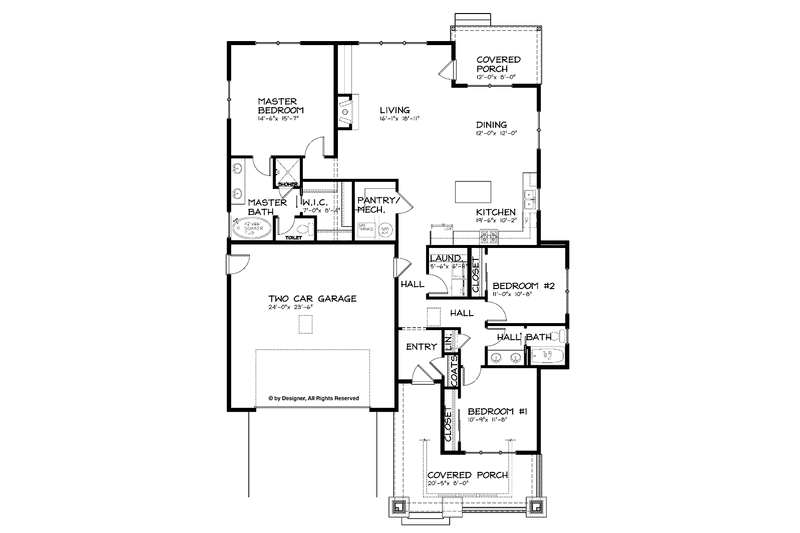

This terrific one-story Craftsman uses every square foot well. Take a look at the entrance from the garage: if you need to throw your boots in the laundry room, it's right there, but you don't have to walk through it to get to the open living spaces (a pantry on the way is located perfectly for easy grocery storage). Short hallways preserve privacy for the bedrooms, especially the comfortable master suite (don't miss the soaking tub and double sinks in here). An island adds extra prep space in the kitchen.
125 sq/ft width 10' 9" x depth 11' 8"
117 sq/ft width 11' x depth 10' 8"
163 sq/ft width 20' 5" x depth 8'
120 sq/ft width 12' x depth 10'
564 sq/ft width 24' x depth 23' 6"
198 sq/ft width 19' 6" x depth 10' 2"
33 sq/ft width 5' 6" x depth 6'
304 sq/ft width 16' 1" x depth 18' 11"
225 sq/ft width 14' 6" x depth 15' 7"
Porch - Rear:
96 sq/ft width 12' x depth 8'
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
