PLAN 513-2147
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

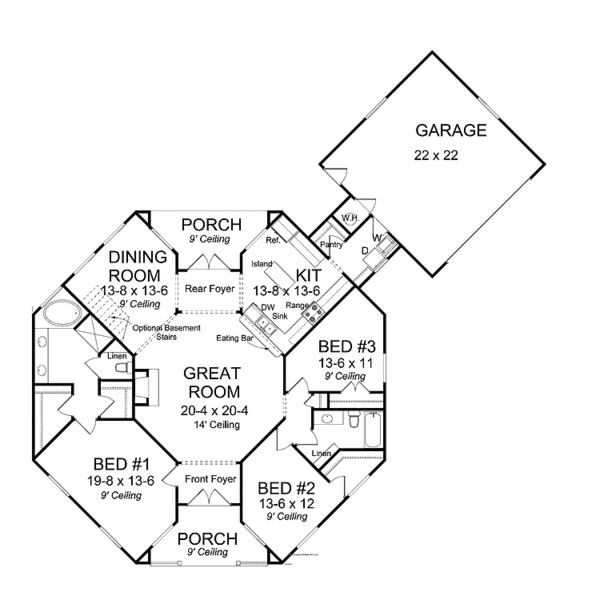

Floor Plans
Full Specs & Features
Dimension
Depth : 70' 2"
Height : 23'
Width : 70' 2"
Area
First Floor: 1793 sq/ft
Garage: 498 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Split Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Open Floor Plan
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
47 sq/ft width 9' 6" x depth 5'
Bedroom 2:
162 sq/ft width 13' 6" x depth 12'
Bedroom 3:
148 sq/ft width 13' 6" x depth 11'
Dining Room:
184 sq/ft width 13' 8" x depth 13' 6"
Foyer:
46 sq/ft width 8' 6" x depth 5' 6"
Garage:
484 sq/ft width 22' x depth 22'
Great Room:
413 sq/ft width 20' 4" x depth 20' 4"
Kitchen:
184 sq/ft width 13' 8" x depth 13' 6"
Kitchen Island:
8 sq/ft width 4' x depth 2'
Master Bathroom:
156 sq/ft width 13' x depth 12'
Master Bedroom:
265 sq/ft width 19' 8" x depth 13' 6"
Master Closet:
45 sq/ft width 5' x depth 9'
Master Closet Two:
22 sq/ft width 5' x depth 4' 6"
Pantry:
14 sq/ft width 3' 6" x depth 4' 2"
Utility Room:
44 sq/ft width 5' 6" x depth 8'
What's Included In This Plan Set

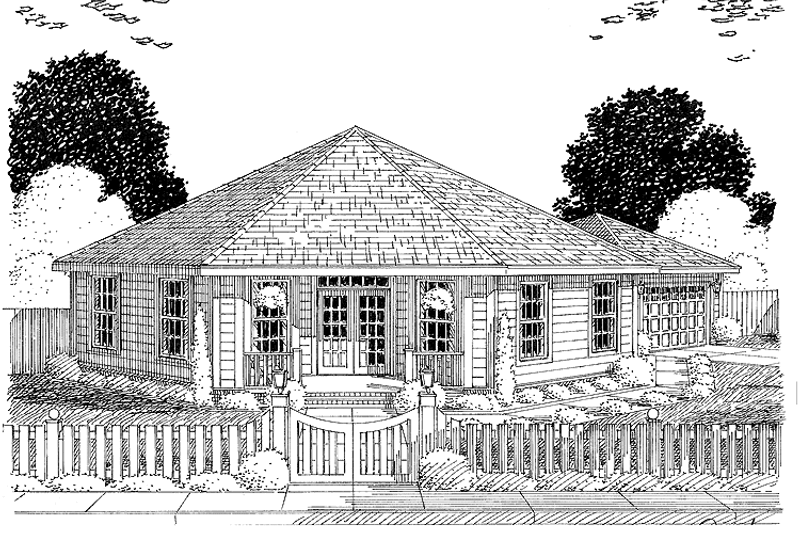

- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

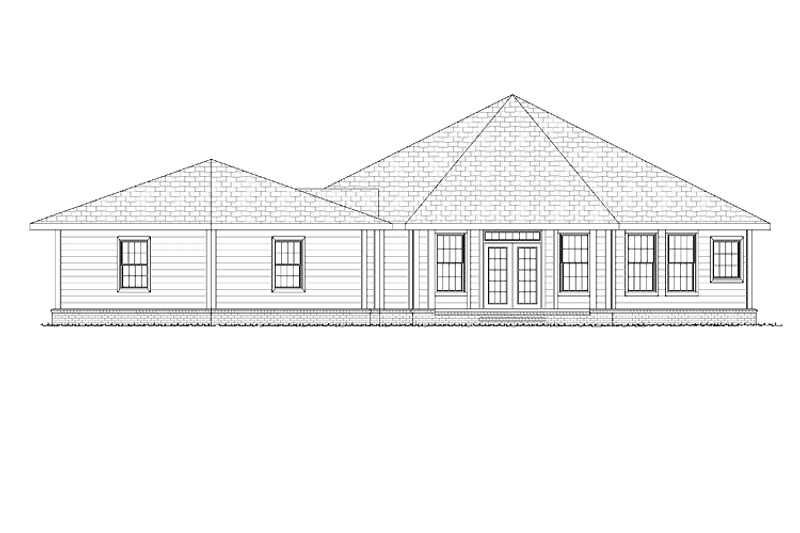

- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

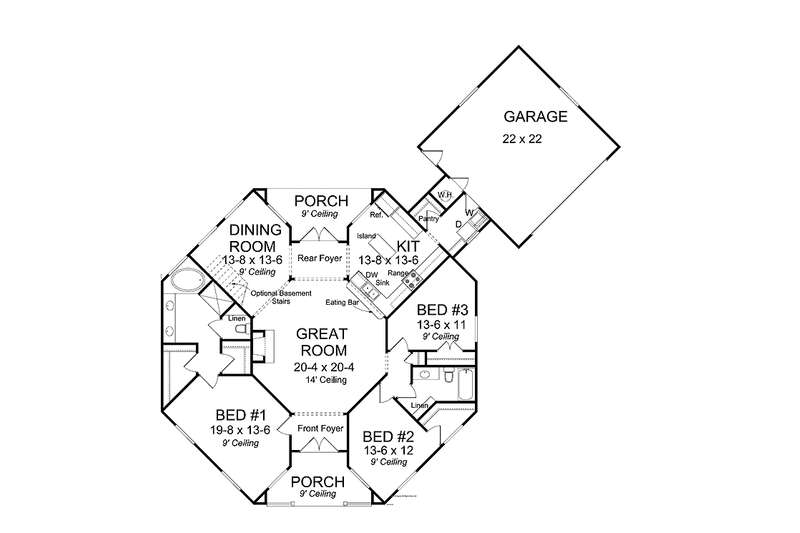

- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$985.00
$1280.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
