PLAN 21-279

Photographs may show modified designs.

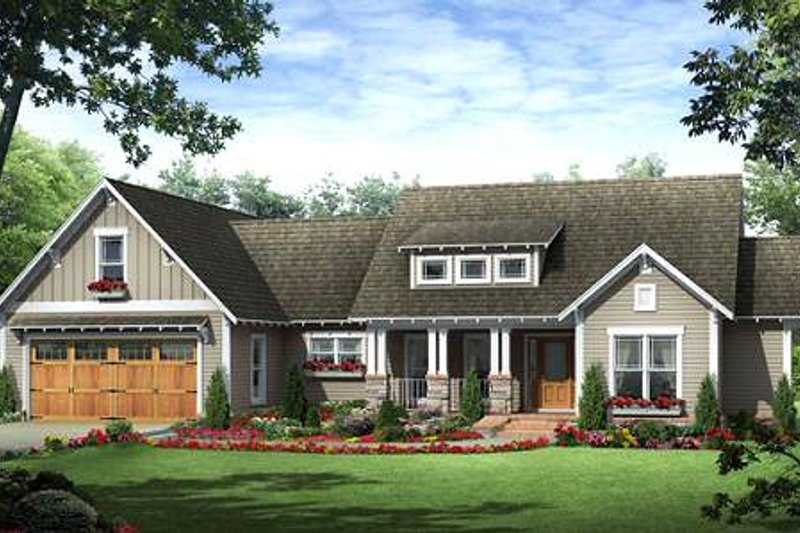

Home Plan - Craftsman Exterior - Front Elevation Plan #21-279

Home Plan - Craftsman Exterior - Rear Elevation Plan #21-279

Home Plan - Craftsman Floor Plan - Main Floor Plan #21-279

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help

Home > Style > Craftsman

Key Specs

1800
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$127.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$51.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$127.50

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$42.50

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1300.00 NOW $1105.00

You save $195.00 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 21-279

Home > Style > Craftsman

Key Specs

1800
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This inviting craftsman home includes all the features that you and your family have always dreamed of having. The well-appointed floorplan design makes use of every available space while providing many extras that you would expect to find in a much larger home. The entry foyer, adjacent to the formal dining, opens into the great room that features trayed ceilings as well as built in cabinets and a gas log fireplace. A second eating area is provided within close proximity to the well-equipped kitchen and features beautiful views. The kitchen also includes an eating bar and island that provides plenty of cabinet and counter space. The master suite also features trayed ceilings as well as a large walk-in closet, tub and separate shower, dual lavatories, and enclosed toilet area. The other two bedrooms are well-sized, have walk-in closets, and share a compartmented bath. The oversized garage is large enough for today's vehicles and also includes a separate storage area. This design truly features everything that makes a house a home.

Floor Plans

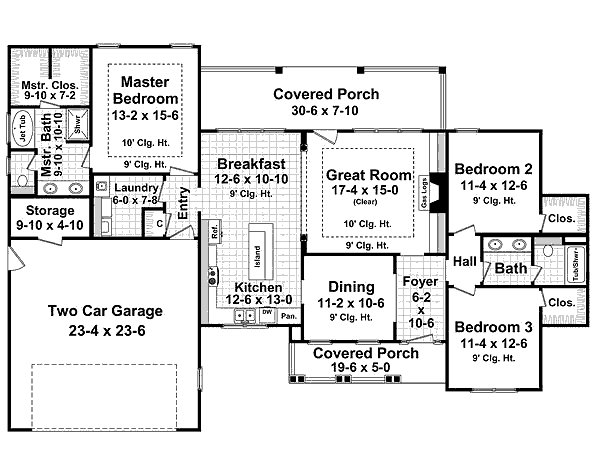

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 48'

Height : 22' 1"

Width : 72' 4"

Area

First Floor: 1800 sq/ft height 9'

Garage: 621 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Hip / Gable

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Additional Room Features

Great Room Living Room

Storage Area

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

141 sq/ft width 11' 4" x depth 12' 6"

Bedroom 3:

141 sq/ft width 11' 4" x depth 12' 6"

Breakfast Nook:

135 sq/ft width 12' 6" x depth 10' 10"

Dining Room:

117 sq/ft width 11' 2" x depth 10' 6"

Foyer:

64 sq/ft width 6' 2" x depth 10' 6"

Garage:

548 sq/ft width 23' 4" x depth 23' 6"

Great Room:

259 sq/ft width 17' 4" x depth 15'

Kitchen:

162 sq/ft width 12' 6" x depth 13'

Laundry Room:

46 sq/ft width 6' x depth 7' 8"

Master Bathroom:

106 sq/ft width 9' 10" x depth 10' 10"

Master Bedroom:

204 sq/ft width 13' 2" x depth 15' 6"

Master Walk-In Closet:

70 sq/ft width 9' 10" x depth 7' 2"

Porch - Front:

97 sq/ft width 19' 6" x depth 5'

Porch - Rear:

238 sq/ft width 30' 6" x depth 7' 10"

Storage:

47 sq/ft width 9' 10" x depth 4' 10"

What's Included In This Plan Set

See a sample plan set

Cover Sheet: Showing architectural rendering of residence
Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
Foundation Plan and Details
Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1105.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1190.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1360.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1657.50

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set:
$977.50

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$127.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$51.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$127.50

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$42.50

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
