PLAN 513-2095
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 65' 10"
Height : 25'
Width : 52'
Height : 25'
Width : 52'
Area
First Floor: 1810 sq/ft height 9'
Garage: 655 sq/ft height 9'
Garage: 655 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : 2x4
Framing : 2x4
Bedroom Features
Split Bedrooms
Walk In Closet
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
Rooms

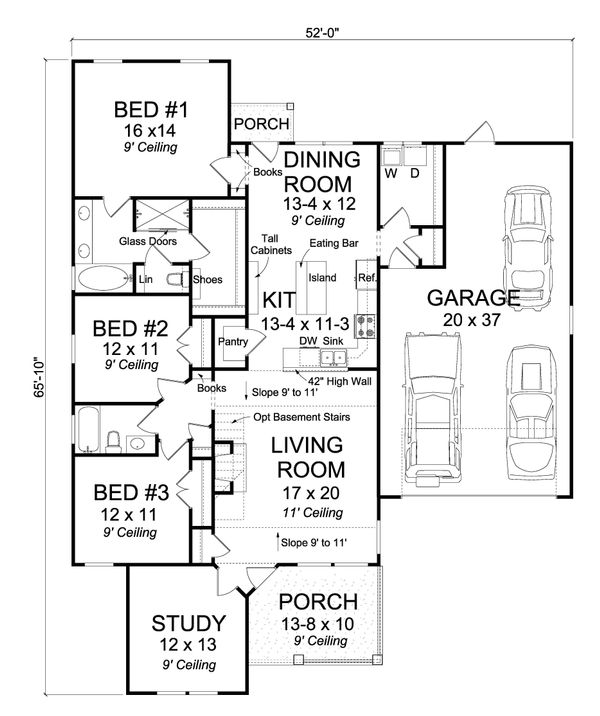

Bedroom 2:
width 12' x depth 11'
Bedroom 3:
width 12' x depth 11'
Dining Room:
width 13' 4" x depth 12'
Garage:
655 sq/ft width 20' x depth 37'
Kitchen:
width 13' 4" x depth 11' 3"
Living Room:
17 sq/ft width 1' 8" x depth 0"
Master Bedroom:
width 16' x depth 14'
Porch - Front:
132 sq/ft width 13' 8" x depth 10'
Porch - Rear:
26 sq/ft
Study:
width 12' x depth 13'
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
