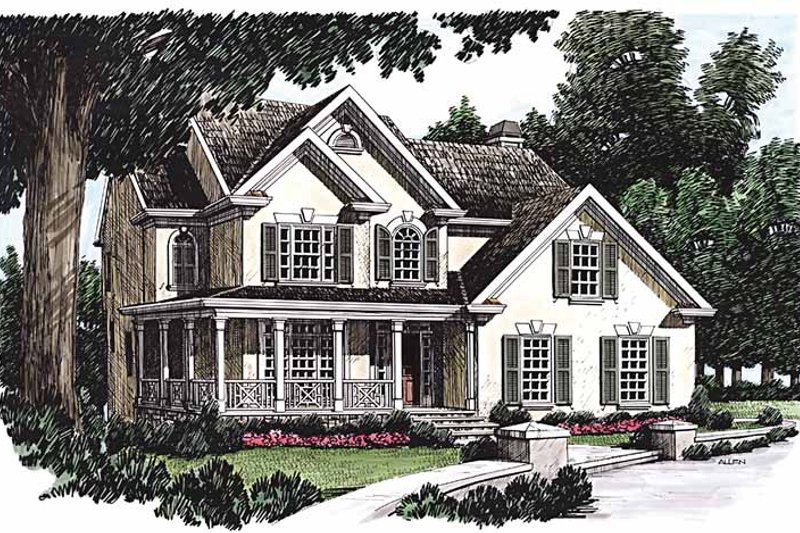

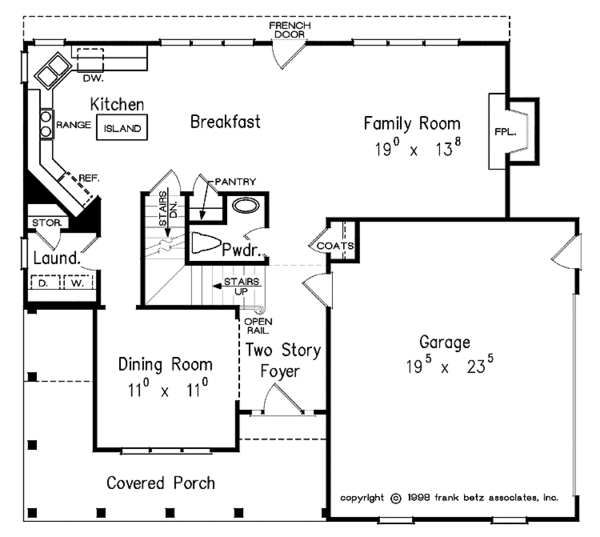

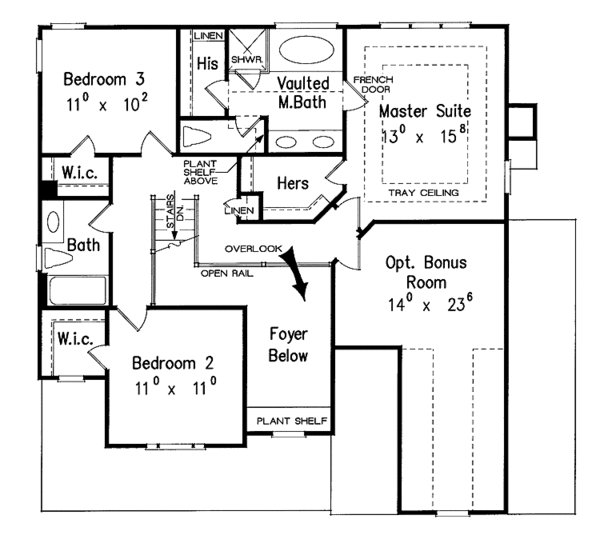

Gables at varying heights, a traditional front porch, and shuttered windows give a small-town look to this family home. The two-story foyer leads to the dining room on the left or to the family room, which is straight ahead past the powder room, coat closet, and entrance to the garage. The family room is open to the kitchen, which boasts a work island, corner window sink, and proximity to the laundry room. The second floor provides a master suite that contains two walk-in closets, two family bedrooms that share a bath but have private walk-in closets, an overlook to the foyer below and an optional bonus room. Please specify basement or crawlspace foundation when ordering.
121 sq/ft width 11' x depth 11'
111 sq/ft width 11' x depth 10' 2"
Bonus Room - Finished:
329 sq/ft width 14' x depth 23' 6"
116 sq/ft width 10' x depth 11' 8"
121 sq/ft width 11' x depth 11'
79 sq/ft width 6' 11" x depth 11' 6"
456 sq/ft width 19' 5" x depth 23' 6"
259 sq/ft width 19' x depth 13' 8"
110 sq/ft width 9' 6" x depth 11' 8"
30 sq/ft width 5' 6" x depth 5' 6"
94 sq/ft width 9' 4" x depth 10' 2"
203 sq/ft width 13' x depth 15' 8"
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
