PLAN 21-425
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 60' 8"
Height : 23' 7"
Width : 65'
Area
Bonus: 357 sq/ft
First Floor: 1816 sq/ft height 9'
Garage: 753 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Workshop
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
126 sq/ft width 12' x depth 10' 6"
Bedroom 3:
126 sq/ft width 12' x depth 10' 6"

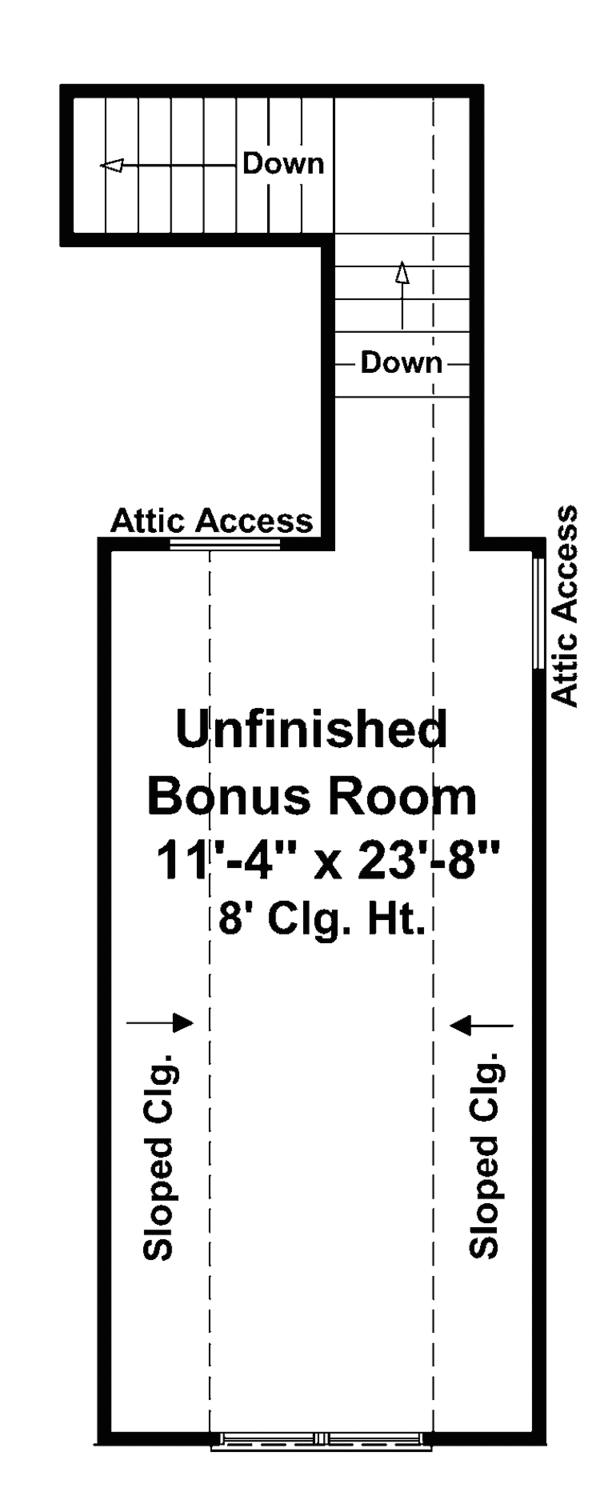

Bonus Room - Unfinished:
268 sq/ft width 11' 4" x depth 23' 8"
Breakfast Nook:
135 sq/ft width 12' x depth 11' 4"
Dining Room:
118 sq/ft width 11' 4" x depth 10' 6"
Foyer:
63 sq/ft width 6' x depth 10' 6"
Garage:
504 sq/ft width 21' 4" x depth 23' 8"
Great Room:
282 sq/ft width 17' 8" x depth 16'
Kitchen:
156 sq/ft width 12' x depth 13'
Master Bathroom:
106 sq/ft width 6' 6" x depth 16' 4"
Master Bedroom:
188 sq/ft width 14' 6" x depth 13'
Master Walk-In Closet:
65 sq/ft width 10' x depth 6' 6"
Porch - Front:
248 sq/ft width 31' x depth 8'
Porch - Rear:
227 sq/ft width 30' 4" x depth 7' 6"
Utility Room:
50 sq/ft width 6' 6" x depth 7' 10"
Work Shop:
74 sq/ft width 6' 4" x depth 11' 10"
What's Included In This Plan Set
- Cover Sheet: Color rendering or black and white image of the exterior
- Foundation Plan(s): Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

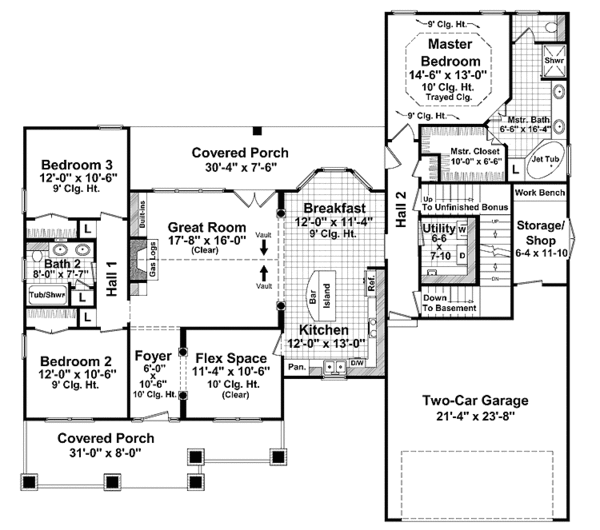

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
- Overhead Roof Plan(s): Overhead view of roof.
- Cross Section(s): A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Electrical Plan(s): Lighting, outlets, switches, detectors, etc.
- Kitchen Cabinet Elevation(s): Scaled drawings of interior cabinets.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): Ceiling joist size and spacing and layouts. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
- Wall Section(s): Exterior wall and roof sections and specialty details.
Plan Set
$1105.00
$1190.00
$1360.00
Foundation
$0.00
Framing
$0.00
Additional Options
$127.50
$51.00
$140.25
$33.15
$140.25
$127.50
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
