Plan Description
A steeply pitched hip roof, brick and a gabled entry porch define the style of this classic Traditional ranch plan. The courtyard garage entry helps with site positioning as well as adds interest to the exterior. The main level is open and airy and lives really large as each room has volume and lots of natural light. The great room has a high ceiling and fireplace for warming fires when the weather is chilly. The dining room features a bay window and high ceiling as well. The kitchen and breakfast area are open to the great room. The kitchen has a long serving bar perfect for quick snacks or morning coffee. The master suite has a tray ceiling and a spa bath with a soaking tub and angled double vanity. The walk-in closet will accommodate a full wardrobe. The secondary bedrooms share the hall bathroom and have ample storage space. There is an optional fourth bedroom and bath on the upper level when expansion is necessary.
Floor Plans

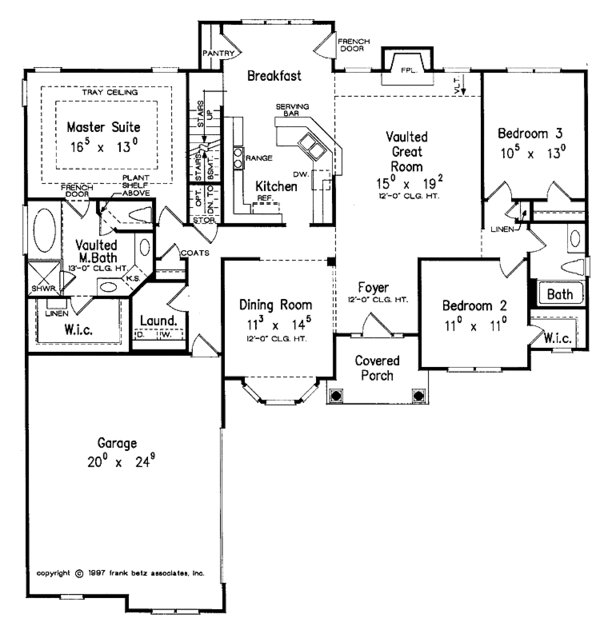

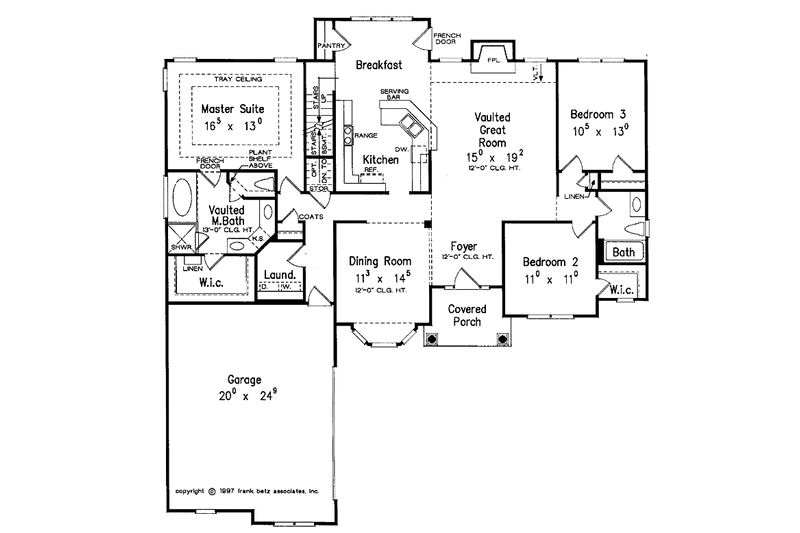

Floor Plan - Main Floor

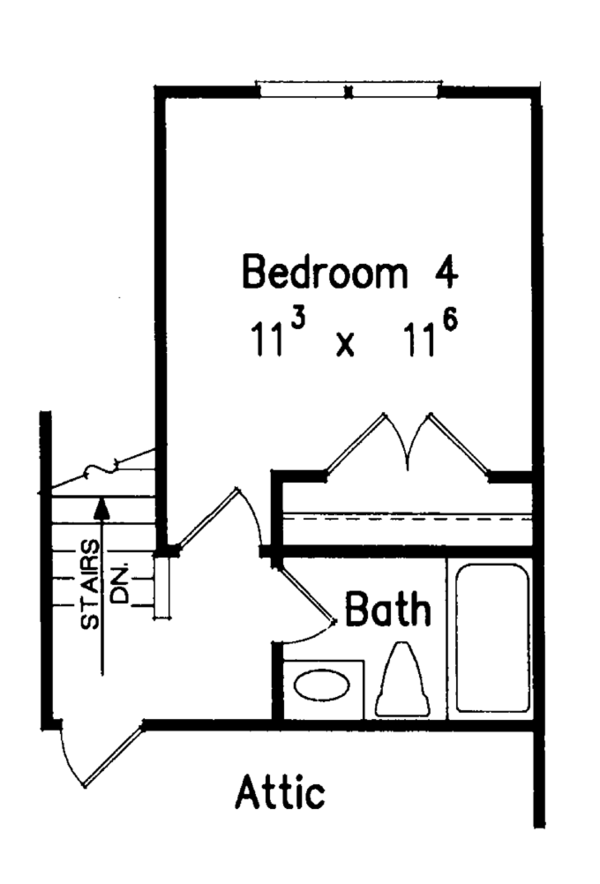

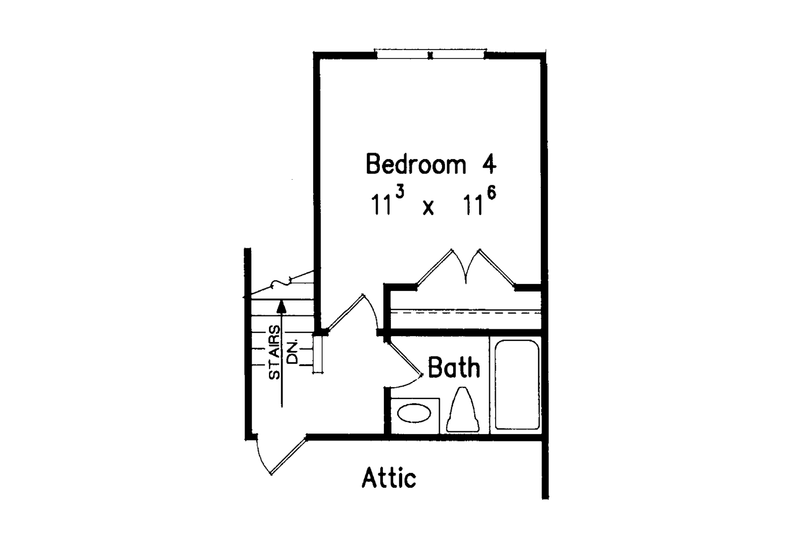

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 61'
Height : 25' 6"
Width : 58'
Area
Bonus: 232 sq/ft
First Floor: 1824 sq/ft
Garage: 528 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : Wood - 2x4
Additional Room Features
Great Room Living Room
Open Floor Plan
Vaulted / Cathedral Ceilings
Workshop
Rooms
Bedroom 2:
width 11' x depth 11'
Bedroom 3:
width 10' 5" x depth 13'
Bonus:
232 sq/ft width 11' 3" x depth 11' 6"
Breakfast:
width 11' 2" x depth 10' 4"
Dining:
width 11' 3" x depth 14' 5"
Family Room:
width 15' x depth 19' 2"
Foyer:
width 8' 6" x depth 7' 3"
Garage:
528 sq/ft width 20' x depth 24' 9"
Kitchen:
width 11' 2" x depth 10'
Laundry:
width 5' 6" x depth 7' 6"
Master Bath:
width 12' x depth 10' 10"
Master Bedroom:
width 16' 5" x depth 13'
Master Closet:
width 10' 6" x depth 5' 6"
What's Included In This Plan Set
-
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
