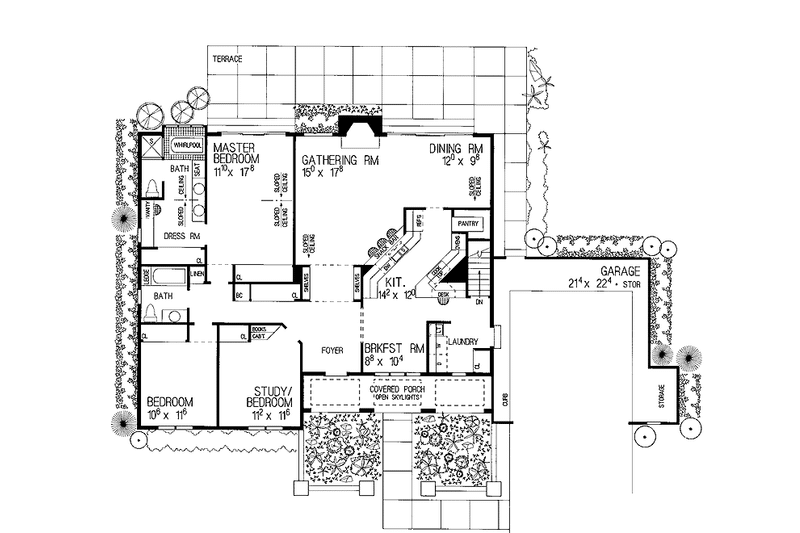

Styled for Southwest living, this home is a good choice in many areas. Among its many highlights are a gathering room/dining room combination that includes a fireplace, a snack-bar pass-through and sliding glass doors to the rear terrace. The uniquely shaped kitchen sports a walk-in pantry plus a breakfast room with windows to the front covered porch. Bedrooms include an owners suite with a sloped ceiling, access to the rear terrace, a whirlpool spa, and a double vanity. Two additional bedrooms share a full bath. One of these bedrooms makes a fine study and features built-in shelves for books as well as a built-in cabinet.
120 sq/ft width 11' 6" x depth 10' 6"
128 sq/ft width 11' 6" x depth 11' 2"
116 sq/ft width 9' 8" x depth 12'
70 sq/ft width 10' x depth 7'
476 sq/ft width 21' 4" x depth 22' 4"
265 sq/ft width 17' 8" x depth 15'
56 sq/ft width 8' x depth 7'
170 sq/ft width 12' x depth 14' 2"
63 sq/ft width 7' x depth 9'
171 sq/ft width 19' x depth 9'
209 sq/ft width 17' 8" x depth 11' 10"
16 sq/ft width 2' x depth 8'
