PLAN 70-1492

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

Additional Use License: $280.00. The walkout lower level gives you tons of versatility, with a third bedroom, full bathroom, family room, and access to the back patio. On the main level, the kitchen's peninsula overlooks the great room for an open vibe. The master suite includes a private bathroom.

Floor Plans

Floor Plan - Main Floor Plan

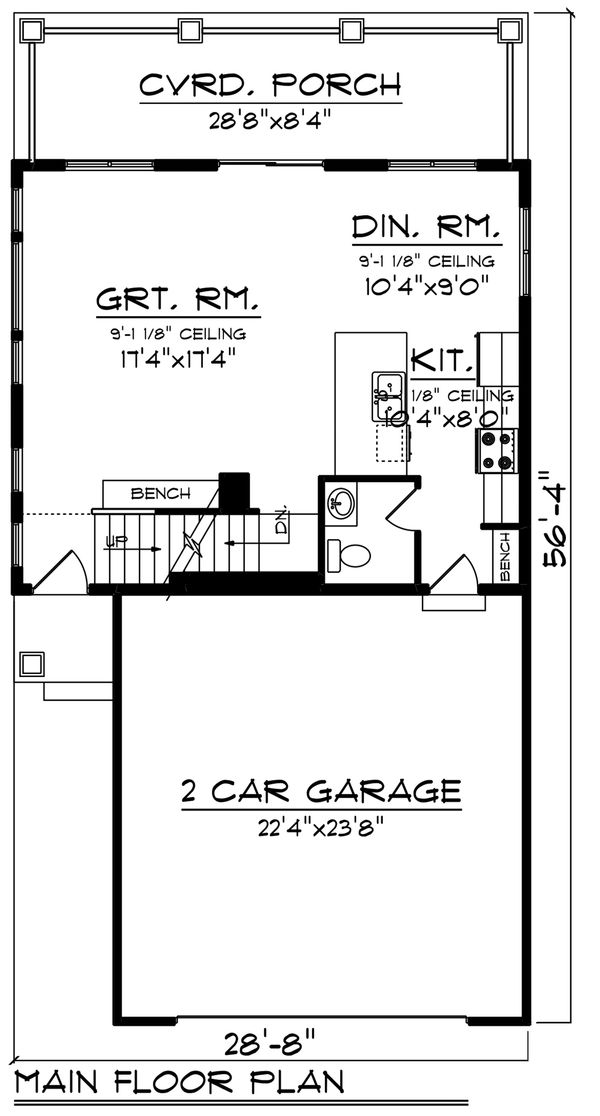

Craftsman Floor Plan - Main Floor Plan Plan #70-1492
Floor Plan - Upper Floor Plan

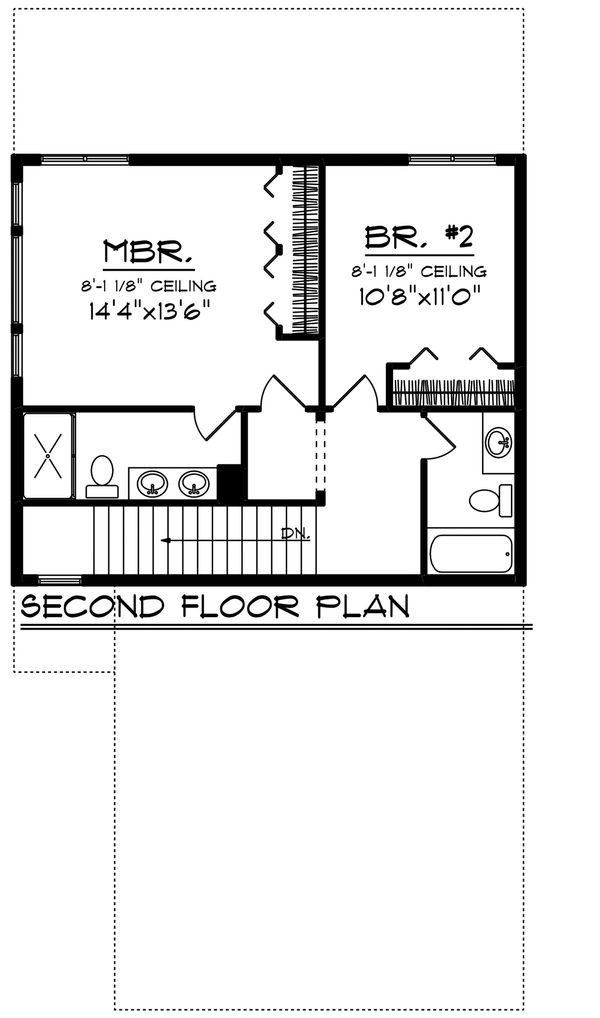

Craftsman Floor Plan - Upper Floor Plan Plan #70-1492
Floor Plan - Lower Floor Plan

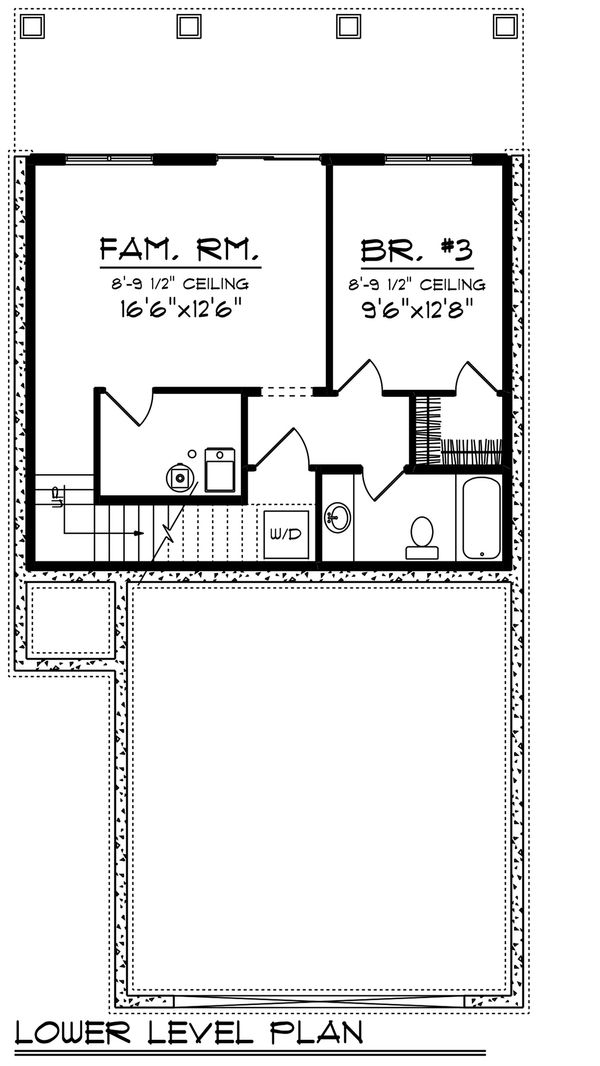

Craftsman Floor Plan - Lower Floor Plan Plan #70-1492

Full Specs & Features

Depth : 56' 4"
Height : 26' 8"
Width : 28' 8"
Garage : 552 sq/ft
Lower Floor : 535 sq/ft
Main Floor : 688 sq/ft
Porch : 267 sq/ft
Upper Floor : 613 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Lower Ceiling : 8' 9"
Main Ceiling : 9' 1"
Upper Ceiling Ft : 8' 1"
Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Shingle
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : 2 x 6
Bedroom Features
Lower Level Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Great Room Living Room
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Economical To Build

Bath 2:

width 5' x depth 9'

Bedroom 2:

width 10' 8" x depth 11'

Bedroom 3:

width 9' 6" x depth 12' 8"

Covered Front Porch:

width 5' 8" x depth 5'

Covered Rear Porch:

width 28' 8" x depth 8' 4"

Dining Room:

width 10' 4" x depth 8'

Family Room:

width 16' 6" x depth 12' 6"


width 22' 4" x depth 23' 8"

Great Room:

width 17' 4" x depth 17' 4"

Half Bath :

width 5' x depth 5' 8"


width 10' 4" x depth 8'

LL Bath 3:

width 10' 4" x depth 5'

LL Laundry:

width 3' 8" x depth 5'

Master Bath:

width 12' 4" x depth 5'

Master Bedroom:

width 14' 4" x depth 13' 6"

Master Closet:

width 2' x depth 9' 6"

What's Included In This Plan Set

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Walk Out Basement:
Ideal for a sloping lot, lower level with outdoor access.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.


Wood 2x6:
Wood 2x6

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
