PLAN 17-3353
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

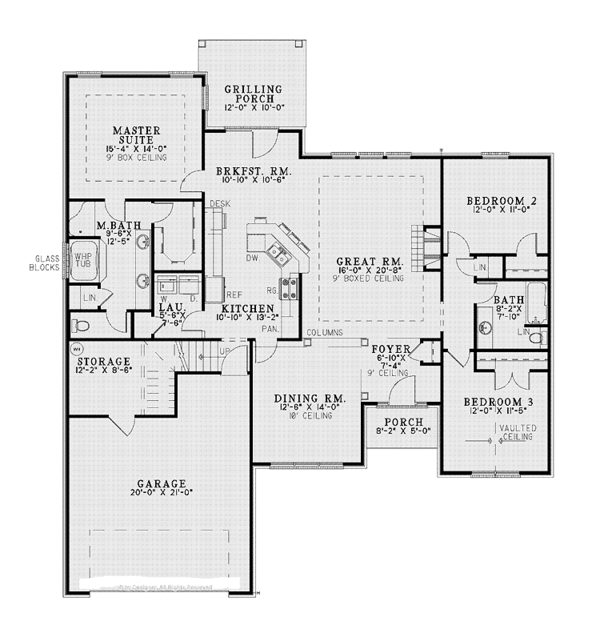

Floor Plan - Main Floor

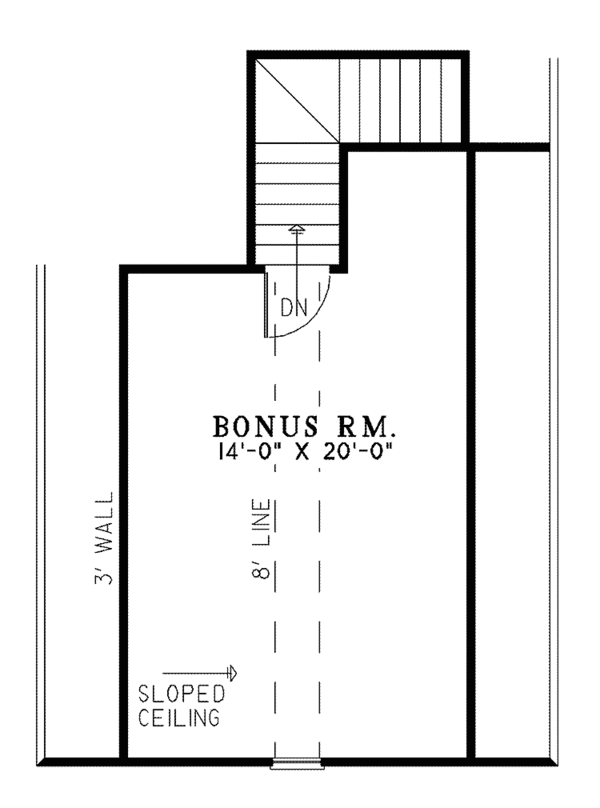

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 63' 10"
Height : 25' 8"
Width : 55' 10"
Area
Bonus: 331 sq/ft height 9'
First Floor: 1848 sq/ft height 9'
Garage: 595 sq/ft height 9'
Porch: 162 sq/ft
Roof
Primary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
95 sq/ft width 12' 2" x depth 7' 10"
Bedroom 2:
132 sq/ft width 12' x depth 11'
Bedroom 3:
138 sq/ft width 12' x depth 11' 6"
Breakfast Room:
113 sq/ft width 10' 10" x depth 10' 6"
Dining Room:
175 sq/ft width 12' 6" x depth 14'
Garage:
420 sq/ft width 20' x depth 21'
Garage Storage:
103 sq/ft width 12' 2" x depth 8' 6"
Great Room:
330 sq/ft width 16' x depth 20' 8"
Grilling Porch:
120 sq/ft width 12' x depth 10'
Kitchen:
142 sq/ft width 10' 10" x depth 13' 2"
Laundry Room:
41 sq/ft width 5' 6" x depth 7' 6"
Master Bathroom:
118 sq/ft width 9' 6" x depth 12' 6"
Master Suite:
214 sq/ft width 15' 4" x depth 14'
Porch - Front:
40 sq/ft width 8' 2" x depth 5'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$1020.00
$1105.00
$1317.50
$1615.00
$2040.00
$2040.00
Foundation
$0.00
$0.00
$254.15
$254.15
Framing
$0.00
$254.15
Additional Options
$254.15
$68.00
$85.00
$250.75
$33.15
