PLAN 41-137
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Height : 28'
Width : 53'

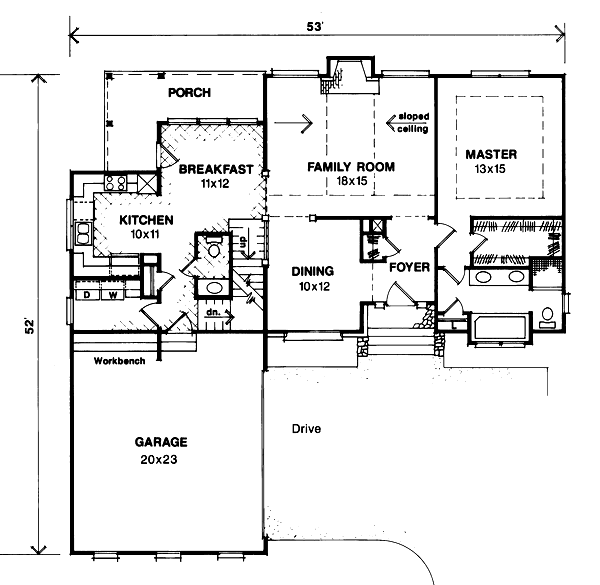

First Floor: 1317 sq/ft

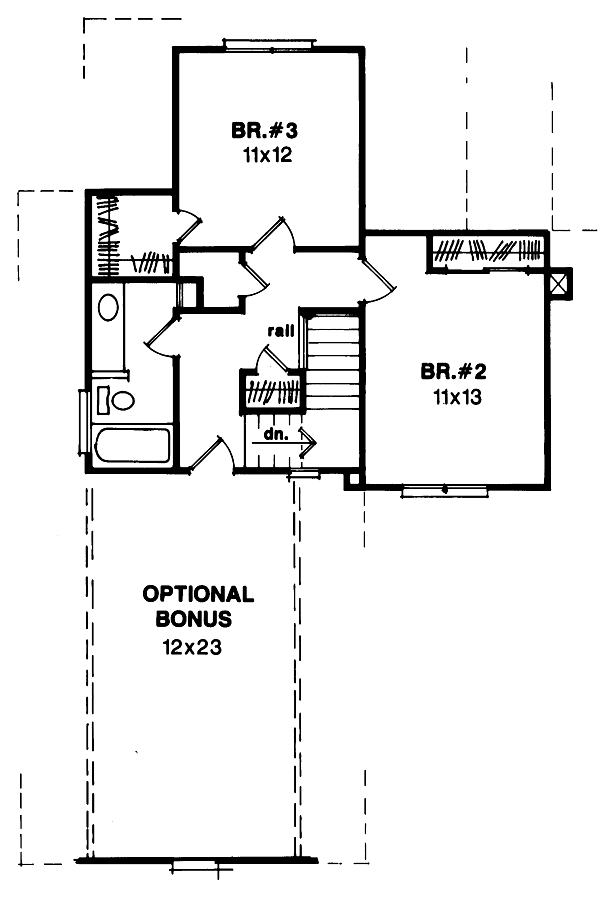

Second Floor: 537 sq/ft
Roof Framing : Conventional
Framing : Wood - 2x4
Walk In Closet
Unfinished Future Space
3rd BR Closet:
14 sq/ft width 2' x depth 7'
Bedroom 3:
143 sq/ft width 13' x depth 11'
Bedroom 4:
132 sq/ft width 12' x depth 11'
Bedroom 4 Closet:
25 sq/ft width 5' x depth 5'
Bonus Room - Finished:
276 sq/ft width 23' x depth 12'
Breakfast Room:
132 sq/ft width 12' x depth 11'
Dining Room:
120 sq/ft width 12' x depth 10'
Foyer:
47 sq/ft width 9' x depth 5' 4"
Garage:
460 sq/ft width 23' x depth 20'
Hall:
width 3' 8" x depth 0"
Hall Bathroom:
56 sq/ft width 11' 4" x depth 5'
Hall Closet:
6 sq/ft width 3' x depth 2'
Kitchen:
110 sq/ft width 11' x depth 10'
Laundry Room:
49 sq/ft width 5' 6" x depth 9'
Master Bathroom:
93 sq/ft width 7' x depth 13' 4"
Master Bedroom:
195 sq/ft width 15' x depth 13'
Master Closet:
48 sq/ft width 5' x depth 9' 8"
Porch - Rear:
110 sq/ft width 5' x depth 22'
Powder Room:
21 sq/ft width 6' 6" x depth 3' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
