Key Specs
1857
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 100-227
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

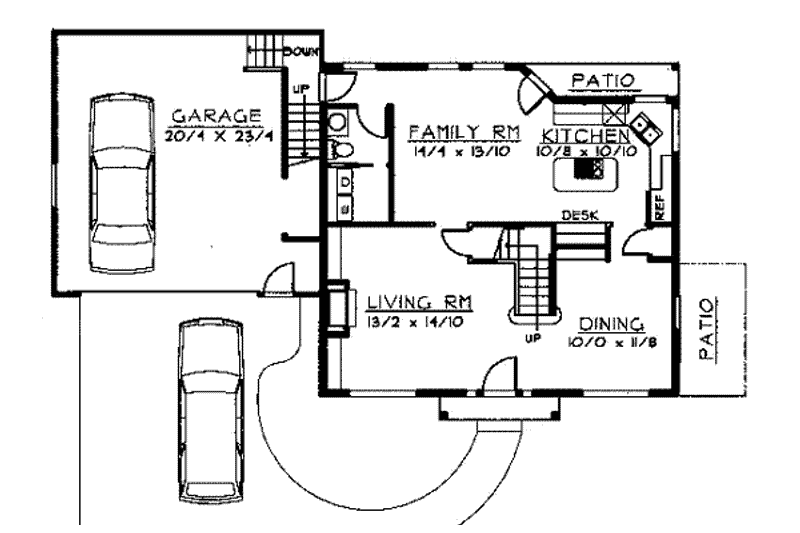

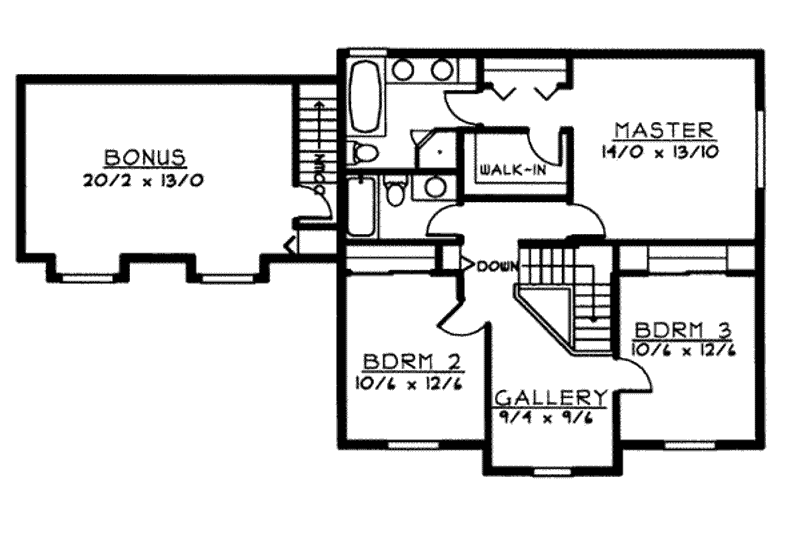

Floor Plans
Full Specs & Features
Dimension
Depth : 33'
Height : 33'
Width : 56'
Area
Bonus: 330 sq/ft
First Floor: 992 sq/ft height 9'
Second Floor: 605 sq/ft
Ceiling
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 12:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Family Room Keeping Room
Loft
Play Flex Room
Outdoor Spaces
Balcony
What's Included In This Plan Set
-
Elevations drawn at 1/4" = 1'-0" scale, and includes:
- Material labels
- Floor-to-floor heights
- Roof slope indicators
- Attic ventilation notes
- Material labels
-
Floor Plans drawn at 1/4" = 1'-0" scale, and includes:
- All post and beam locations
- Door and window sizes
- Complete and accurate dimensions
- Room labels and interior room sizes
- Electrical layouts
- Code-related notes
- Building section markers
- Floor joist type, spacing and direction
- All post and beam locations
-
Foundation or Basement Plan drawn at 1/4" = 1'-0" scale, and includes:
- All post and beam locations
- Door and window sizes
- Complete and accurate dimensions
- All foundation wall and footing sizes
- Code-related notes
- Building section markers
- Floor and deck joist type, spacing and direction
- Mechanical equipment location
- Electrical layouts
- All post and beam locations
-
Roof Plan drawn at 1/4" = 1'-0", and includes:
- All beam and header locations
- Building section markers
- Code-related notes
- All necessary notes pertaining to the structural system
- All beam and header locations
-
Building Sections drawn at 1/4" = 1'-0" scale, and includes:
- Beam connections and locations
- Floor joist type and spacing
- Floor-to-floor heights
- Non-typical plate heights indicated
- Beam connections and locations
-
Typical wall sections drawn at 1/2" = 1'-0" scale, and includes:
- All labels indicating wall construction
- Foundation wall thickness and minimum reinforcing
- Insulation type and rating
- All labels indicating wall construction
- Miscellaneous Notes and Details: Including miscellaneous framing details, stairway details and general notes covering code requirements for residential construction
Plan Set
$800.00
$850.00
$900.00
$1400.00
Foundation
$0.00
$150.00
$250.00
$350.00
Additional Options
$150.00
$50.00
$100.00
$39.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
