PLAN 310-582
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

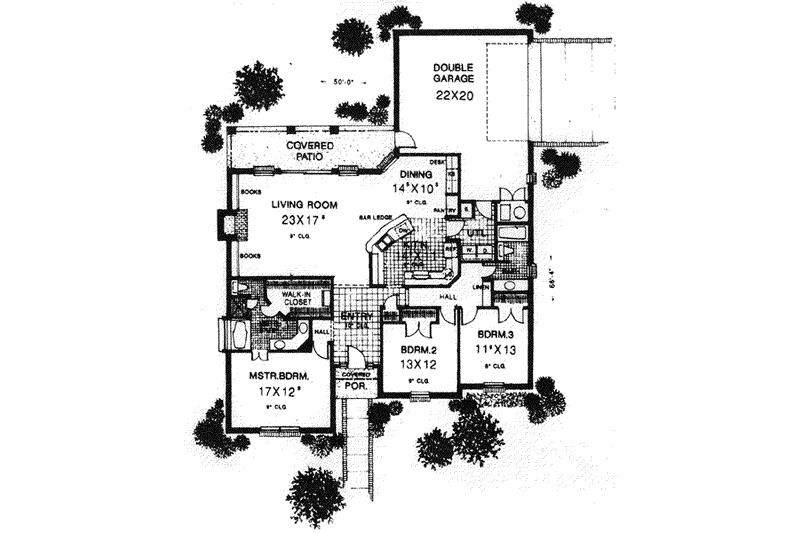

Floor Plans
Full Specs & Features
Dimension
Depth : 66' 4"
Height : 24'
Width : 50'
Area
First Floor: 1862 sq/ft height 9'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
3rd BR Closet:
12 sq/ft width 2' x depth 6'
Bathroom 2:
55 sq/ft width 5' x depth 11'
Bedroom 2:
156 sq/ft width 13' x depth 12'
Bedroom 2 Closet:
12 sq/ft width 2' x depth 6'
Bedroom 3:
149 sq/ft width 11' 6" x depth 13'
Bedroom 3 Closet:
12 sq/ft width 2' x depth 6'
Master Bathroom:
143 sq/ft width 13' x depth 11'
Master Bedroom:
216 sq/ft width 17' x depth 12' 9"
Master Closet:
66 sq/ft width 6' x depth 11'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Plan Set
$895.00
$1035.00
$1185.00
$1185.00
$1760.00
$840.00
Foundation
$0.00
Additional Options
$50.00
$100.00
$39.00
$50.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
