Key Specs


1863
sq ft

4
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Laundry Room 7' 2 " x 7' 2 " Foyer 6' 6 " x 7' 6 " Covered Porch (Rear) 11' 4 " x 5' 0 " Bathroom #02 8' 6 " x 5' 0 " Main Bathroom 8' 6 " x 5' 0 " Master Bathroom 10' 0 " x 9' 4 " Master Closet #01 10' 0 " x 5' 0 " Veranda 20' 0 " x 5' 6 " Stairs are 3' 6" wide (clear)

Floor Plans

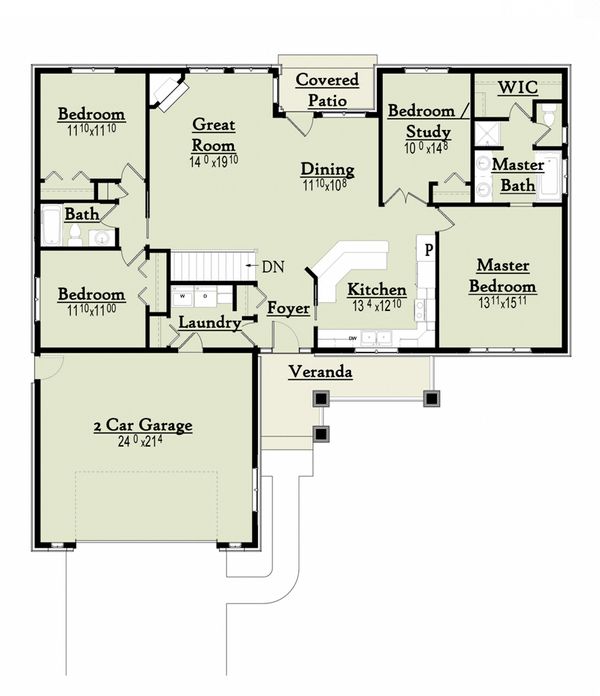

Floor Plan - Main Floor Plan
Bungalow designed house plan, ranch style floor plan

Full Specs & Features


Dimension
Depth : 69'
Height : 23'
Width : 60'
Area
First Floor: 1863 sq/ft height 9'
Garage: 512 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Roof Framing : Truss
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x6"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
