PLAN 53-706
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 39'
Height : 28' 5"
Width : 34'
Area
Garage : 450 sq/ft
Main Floor : 807 sq/ft
Patios : 100 sq/ft
Porch : 56 sq/ft
Upper Floor : 1061 sq/ft
Ceiling
Main Ceiling : 9' 1"
Upper Ceiling Ft : 8' 1"
Roof
Primary Pitch : 12/10
Roof Framing : TRUSS
Roof Load : 47 p.s.f.
Roof Type : Hip and Gable
Secondary Pitch : 12/8
Exterior Wall Framing
Exterior Wall Finish : double wall
Framing : 2x6
Insulation : r-23
Bedroom Features
Main Floor Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Exercise Room
Great Room Living Room
Hobby Rec Room Game Room
Play Flex Room
Upstairs Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

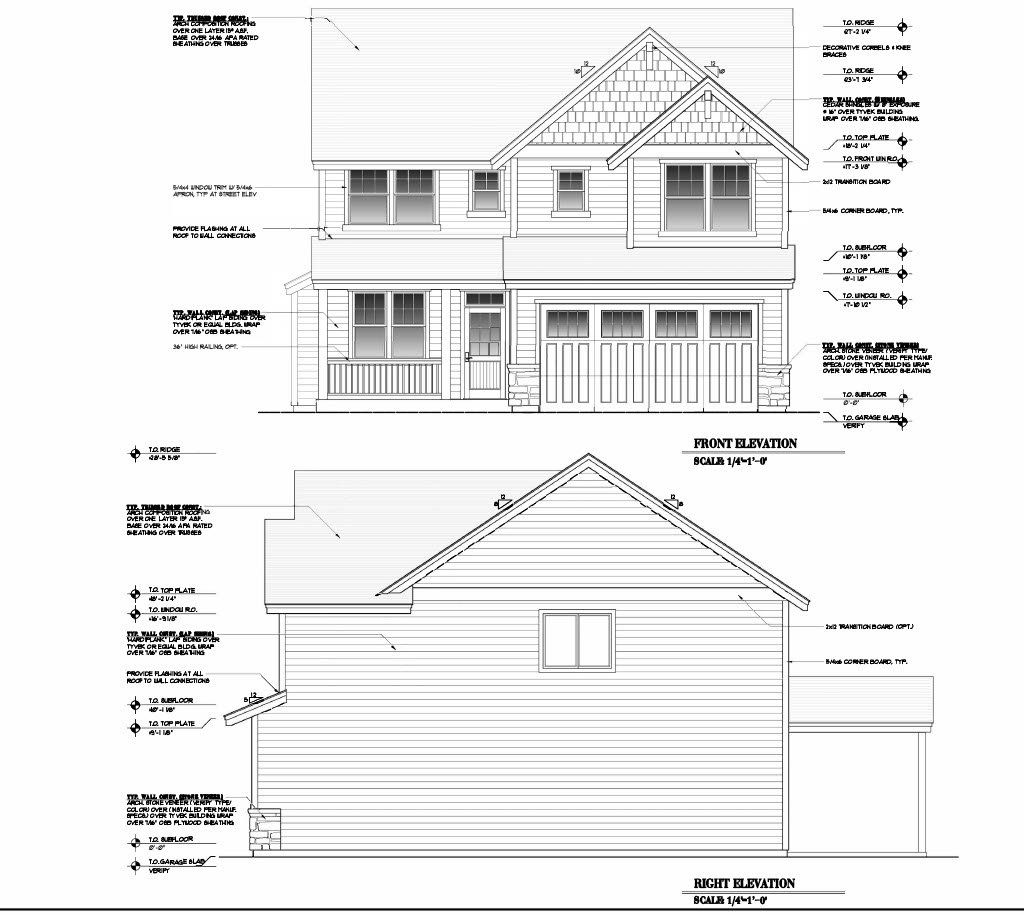

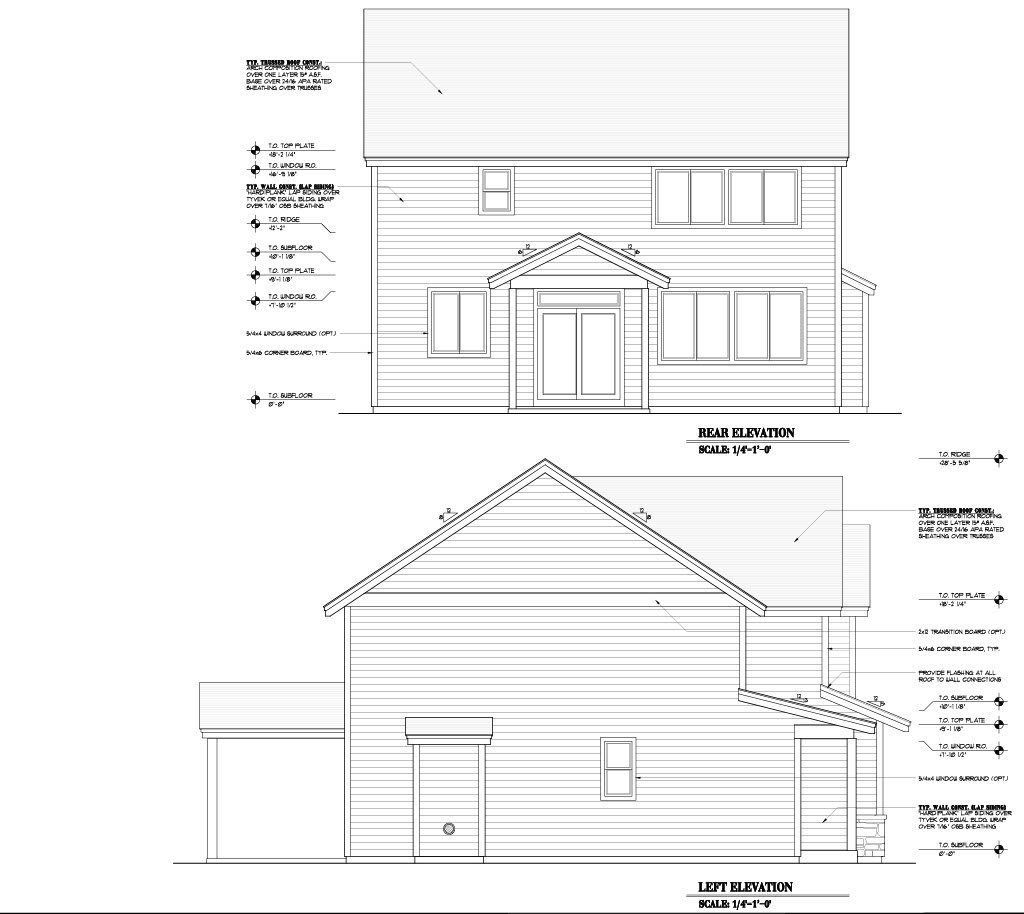

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Plan Set
$1495.00
$2295.00
$2295.00
$3736.00
$3736.00
$3736.00
$3790.00
Foundation
$0.00
$0.00
$275.00
Framing
$0.00
$0.00
Additional Options
$250.00
$165.00
$295.00
$39.00
$165.00
$3736.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
