PLAN 23-2023
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

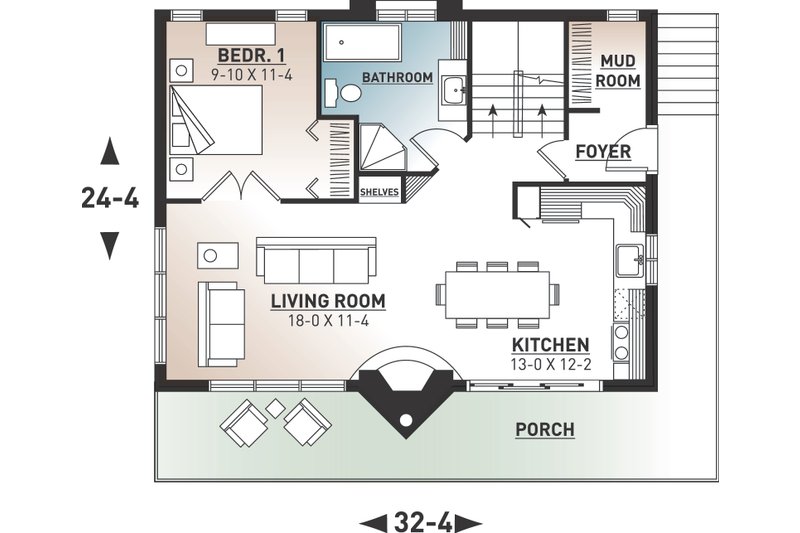

Floor Plan - Main Floor

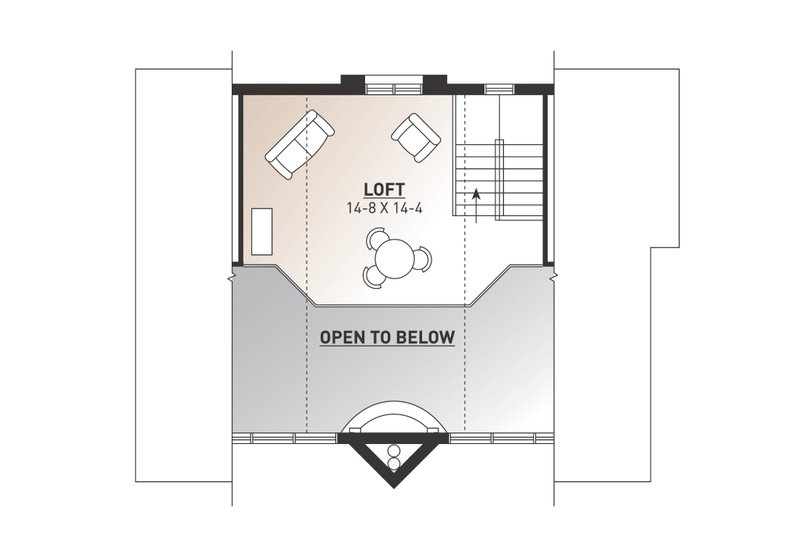

Floor Plan - Upper Floor

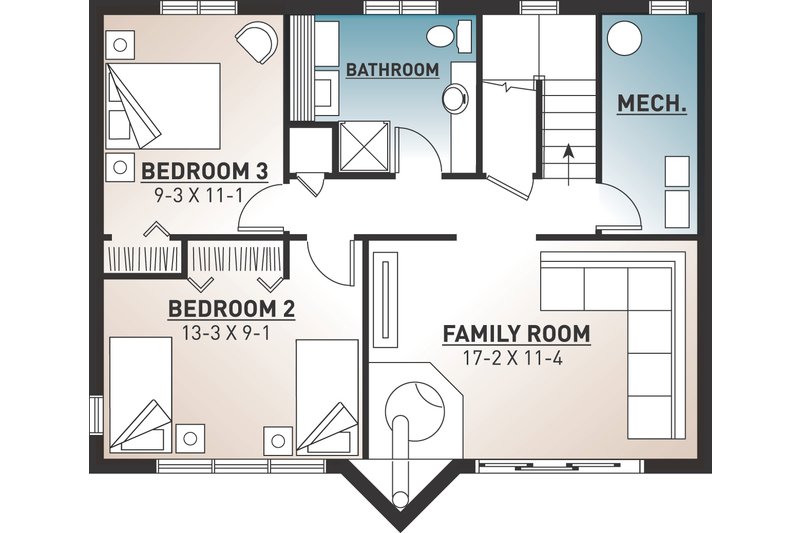

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 24' 4"
Height : 33'
Width : 32' 4"
Area
Basement Living: 787 sq/ft
First Floor: 787 sq/ft
Second Floor: 299 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Additional Room Features
Family Room Keeping Room
Loft
Storage Area
Lot Characteristics
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Balcony
More
Suited For Vacation Home
Rooms
3rd BR Closet:
10 sq/ft width 5' x depth 2'
Bathroom 2:
57 sq/ft width 7' x depth 8' 2"
Bedroom 2:
99 sq/ft width 9' x depth 11'
Bedroom 2 Closet:
8 sq/ft width 4' 2" x depth 2'
Bedroom 3:
117 sq/ft width 13' x depth 9'
Bedroom 3 Closet:
8 sq/ft width 4' 2" x depth 2'
Foyer:
16 sq/ft width 4' 10" x depth 3' 4"
Gathering Room:
210 sq/ft width 14' 8" x depth 14' 4"

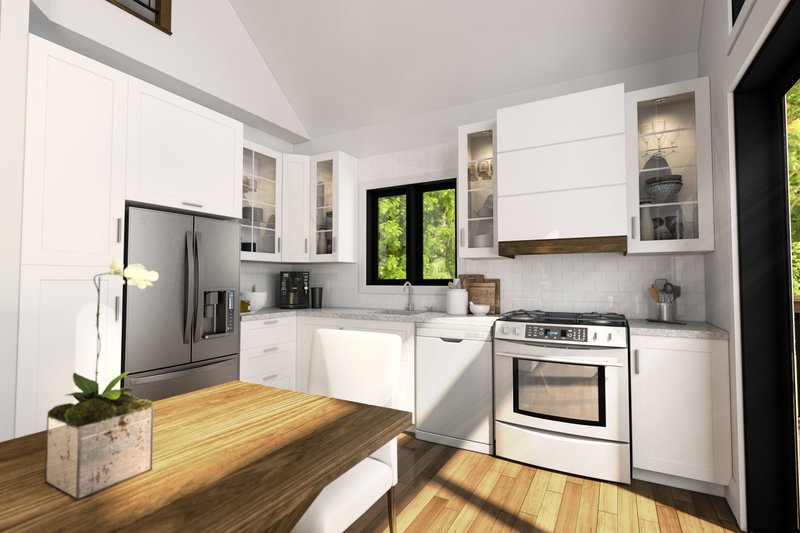

Kitchen:
147 sq/ft width 13' x depth 11' 4"
Living Room:
203 sq/ft width 18' x depth 11' 4"
Master Bathroom:
90 sq/ft width 9' 4" x depth 9' 8"
Master Bedroom:
113 sq/ft width 10' x depth 11' 4"
Master Closet:
9 sq/ft width 2' x depth 4' 11"
Porch - Front:
217 sq/ft width 36' 4" x depth 6'
Porch - Right:
70 sq/ft width 4' x depth 17' 8"
Storage:
53 sq/ft width 4' 10" x depth 11'
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Foundation plans typically include: All exterior / interior dimensions, thickness of foundation walls (if variable), all structural details, location of stairwell, location and size of windows and location / dimensions of footings (where applicable and required)
- Floor Plan(s): Floor plans typically include: All interior / exterior dimensions (included but not as a schedule), location and sizes of doors / windows, indication of the structure above (second floor or roof), indication that details are on other pages
- Exterior Elevations: Front, rear, left & right sides) typically include: Floor/ceiling heights, dimensions of standard windows & roof overhangs, location of all needed flashings, height and location of foundation, type of finishing and textures, dimensions of chimney,
- Overhead Roof Plan(s): Roof plans typically include: location of all the different trusses, general overcharge of the roof compared to the floor footprint.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Details typically include: Roof sections, sections of concrete wall with wood connection, sections of walls with particular called out, section of concrete porch and connection with wood frame, foundation particulars, wall components.
- Wall Section(s): Wall sections typically include: All the details and components needed in construction.
*** Please note that some plans from this designer may be delayed 5-7 days as they are updating plan content. ***
Plan Set
$1406.75
$1525.75
$2256.75
Foundation
$0.00
$361.25
$361.25
$361.25
Additional Options
$212.50
$55.25
$140.25
$250.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
