PLAN 120-187
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
A wraparound porch gives a sheltered entry and creates a cozy place to spend summer evenings, with enough room on the side to accommodate a porch swing. Off the foyer, a unique study opens with two sets of French doors to the porch on one side and the foyer on another. Two more sets of French doors lead from the large family room to the rear lanai. The master suite offers dual closets and sinks, a garden tub, a walk-in shower, and yes, more French doors to the rear lanai. The plan has an option for a basement with stairs adjacent to the utility room. This area could be storage or a half bath with a slab or crawlspace foundation.
Floor Plans

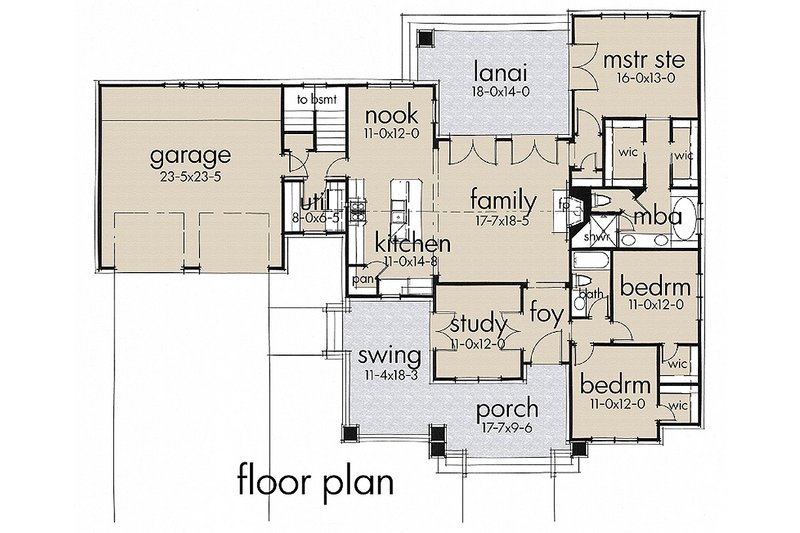

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 57' 11"
Height : 24' 11"
Width : 78' 11"
Area
Garage : 573 sq/ft
Main Floor : 1879 sq/ft
Porch : 644 sq/ft
Storage : 58 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Family Room: 11' - Utility Room, Bath 2, and Garage: 9'
Main Ceiling : 10'
Roof
Primary Pitch : 8:12
Roof Framing : Stick
Roof Load : 20
Roof Type : Shingle
Secondary Pitch : 3:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2x4
Insulation : R-15
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
