PLAN 70-713
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

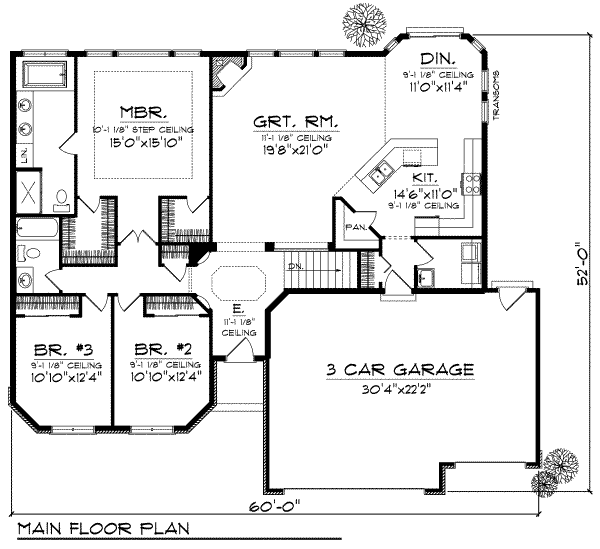

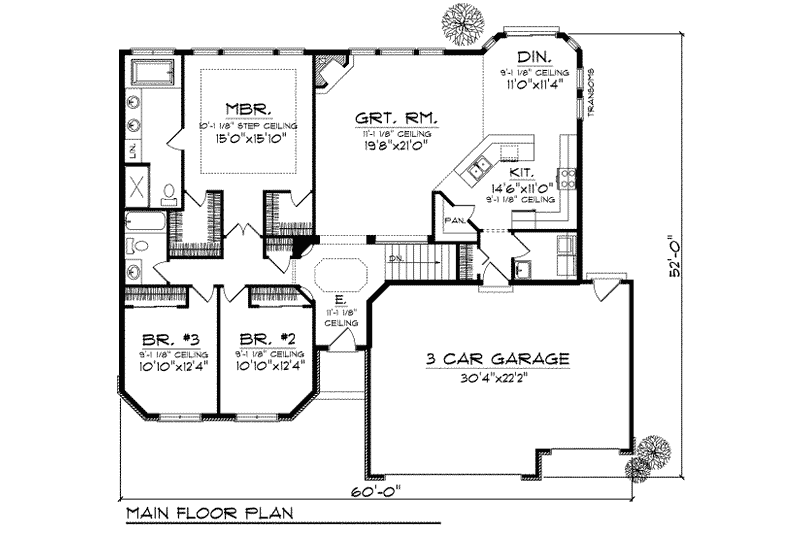

Floor Plans
Full Specs & Features
Dimension
Depth : 52'
Height : 20'
Width : 60'
Area
First Floor: 1896 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : 2"x6"
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Garage Features
Oversized Garage
Lot Characteristics
Suited For View Lot
Rooms
Basement Foundation:
3120 sq/ft width 60' x depth 52'
Bedroom 2:
133 sq/ft width 10' 10" x depth 12' 4"
Bedroom 2 Closet:
10 sq/ft width 5' x depth 2'
Bedroom 3:
133 sq/ft width 10' 10" x depth 12' 4"
Bedroom 3 Closet:
14 sq/ft width 7' 2" x depth 2'
Dining Room:
124 sq/ft width 11' x depth 11' 4"
Foyer:
72 sq/ft width 6' x depth 12'
Garage:
672 sq/ft width 30' 4" x depth 22' 2"
Great Room:
413 sq/ft width 19' 8" x depth 21'
Hall:
43 sq/ft width 14' 5" x depth 3'
Hall Bathroom:
43 sq/ft width 5' x depth 8' 8"
Hall Closet:
13 sq/ft width 3' 2" x depth 4' 2"
Kitchen:
159 sq/ft width 14' 6" x depth 11'
Laundry Room:
42 sq/ft width 7' 5" x depth 5' 8"
Master Bathroom:
120 sq/ft width 6' 8" x depth 18'
Master Bedroom:
237 sq/ft width 15' x depth 15' 10"
Master Closet:
44 sq/ft width 6' x depth 7' 5"
Porch - Front:
26 sq/ft width 5' 4" x depth 5'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

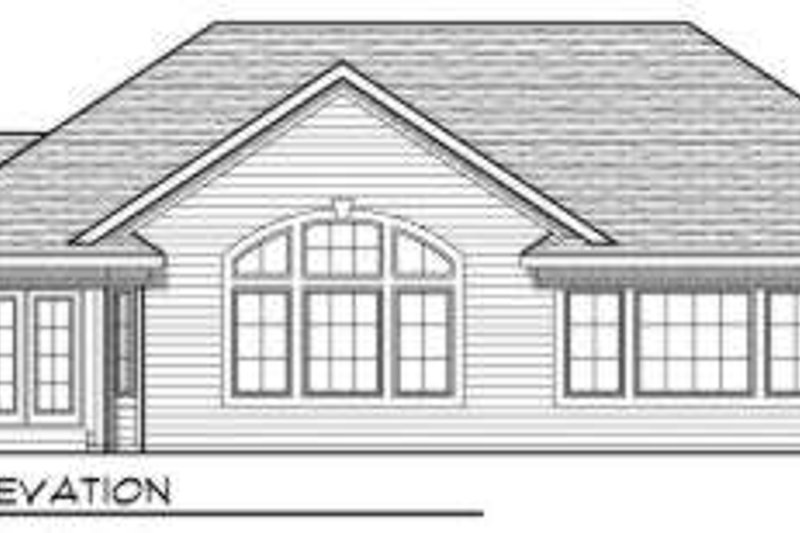

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1006.00
$1060.00
$1257.00
$1257.00
$1999.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$295.00
$39.00
$75.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
