PLAN 427-6
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This 3 bedroom Ranch style home has a split plan. The master suite and the great room open to the outdoor living patio at the back of the house. The laundry doubles as the entry from the garage. The generous porch at the front adds curb appeal, inviting you to sit a spell!
Floor Plans

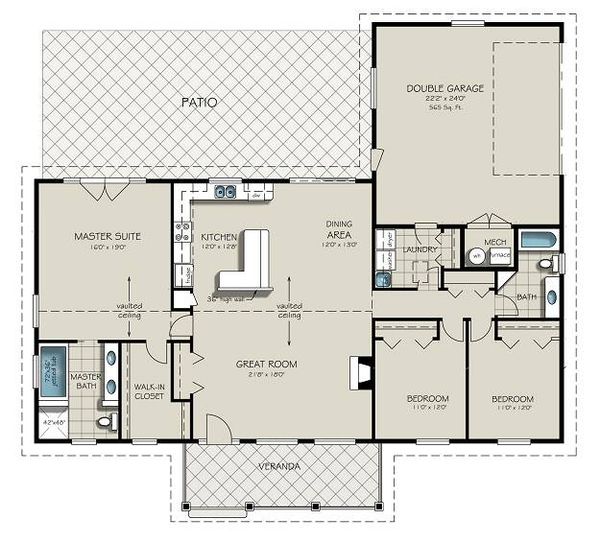

Floor Plan - Main Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 59'
Height : 23'
Width : 64'
Area
Main Floor : 1924 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Garage Features
Rear Garage
Side Entry Garage
Outdoor Spaces
Covered Front Porch
