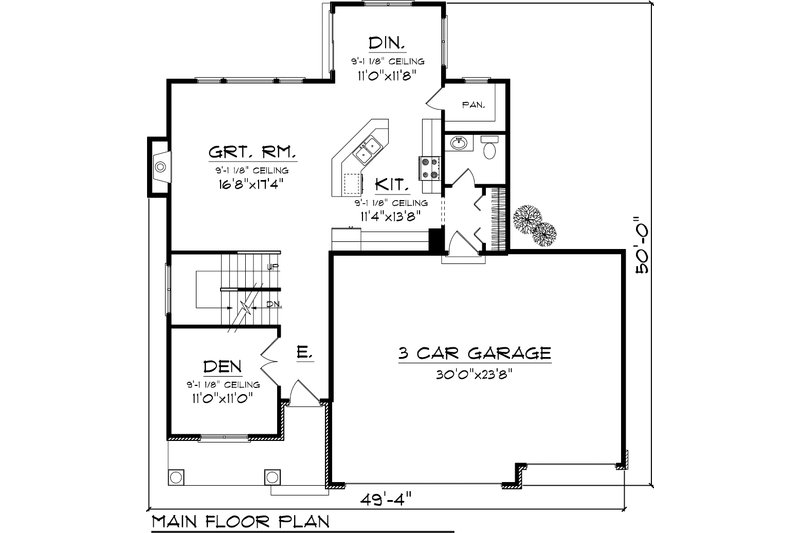

Home Plan - Craftsman Floor Plan - Main Floor Plan #70-1049

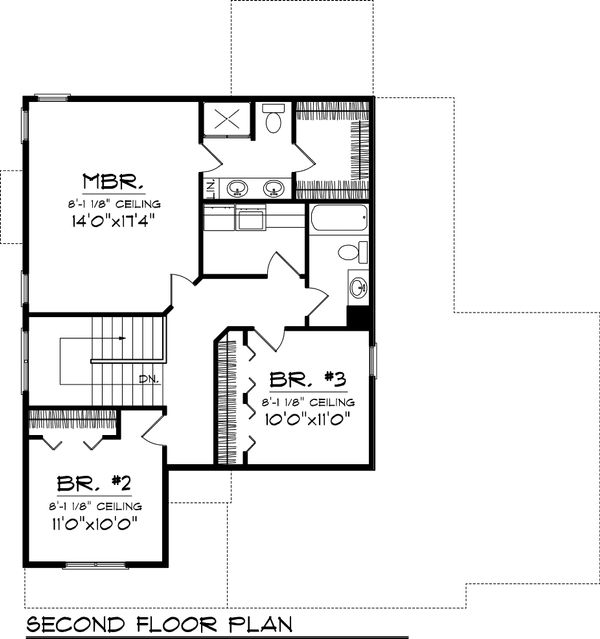

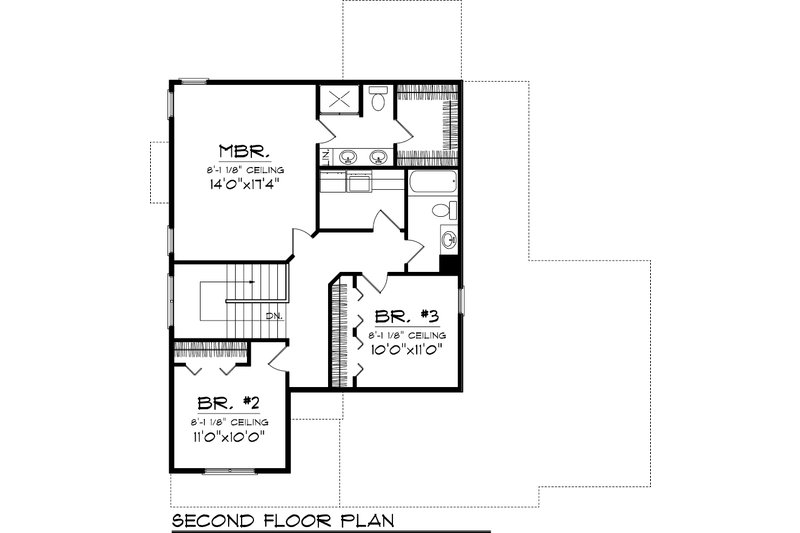

Home Plan - Craftsman Floor Plan - Upper Floor Plan #70-1049

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

1927
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$335.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$68.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$63.75

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1056.00 NOW $897.60

You save $158.40 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 70-1049

Home > Style > Craftsman

Key Specs

1927
sq ft

3
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Exterior material choices can make this home traditional, rustic, or craftsman in style, depending on your buyer. At just under 2,000 square feet, this plan packs a lot of living space in. As you enter the home, to your left lies a den with French doors that provide extra character. Directly ahead youâ€™ll find the main living area of the home where the kitchen, great room and dining room blend together into an open living area thatâ€™s big enough for any family. The master bedroom with on-suite bath and walk-in closet, two additional bedrooms, a full bath and the laundry room can be found upstairs. A three-stall garage completes the home.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 50'

Height : 27' 3"

Width : 49' 4"

Area

First Floor: 1044 sq/ft height 9'

Garage: 724 sq/ft

Second Floor: 883 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47

Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Siding, Shake, Stone

Framing : 2 x 6

Insulation : 19

Bedroom Features

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Upstairs Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Basement:

width 47' 4" x depth 50'

Bedroom 2:

width 11' x depth 10'

Bedroom 3:

width 10' x depth 11'

Den:

width 11' x depth 11'

Dining:

width 11' x depth 11' 8"

Foyer:

width 5' x depth 7' 8"

Garage:

724 sq/ft width 30' x depth 23' 8"

Great Room:

width 16' 8" x depth 17' 4"

Half Bath:

width 6' x depth 5' 2"

Hall Closet:

width 2' 1" x depth 6' 6"

Kitchen:

width 11' 4" x depth 13' 8"

Laundry:

width 8' 5" x depth 5' 10"

Master Bath:

width 7' 4" x depth 8'

Master Bedroom:

width 14' x depth 17' 4"

Master Walk In Closet:

width 6' x depth 8'

Porch Front:

width 16' 8" x depth 8' 8"

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
