PLAN 47-680
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 35' 8"
Height : 29'
Width : 50'
Area

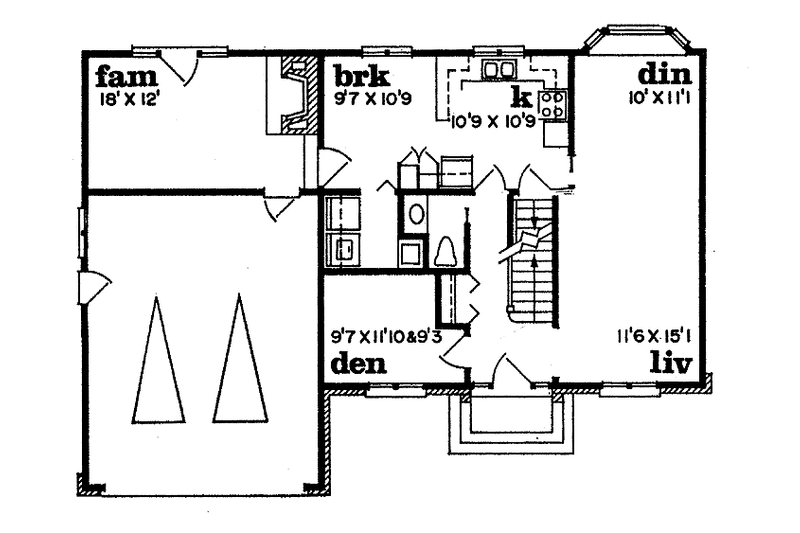

First Floor: 1087 sq/ft height 8'

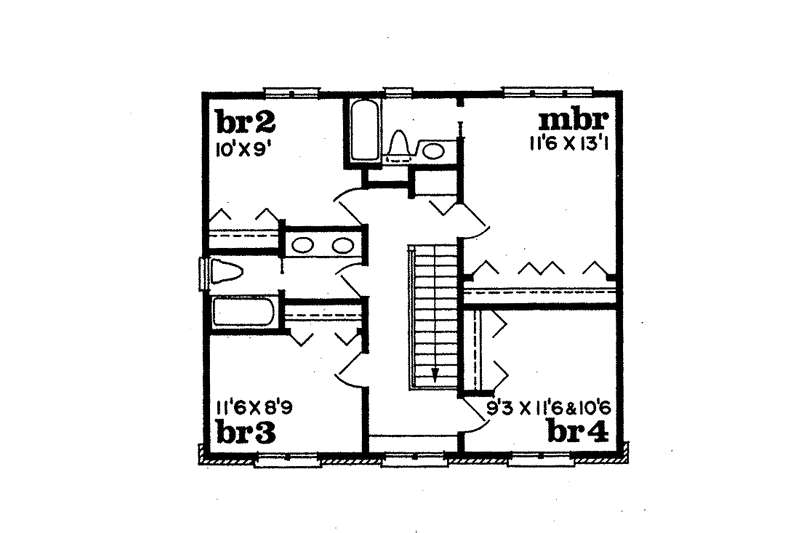

Second Floor: 851 sq/ft
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
12 sq/ft width 2' x depth 6'
Bedroom 2:
90 sq/ft width 9' x depth 10'
Bedroom 2 Closet:
10 sq/ft width 2' x depth 5'
Bedroom 3:
100 sq/ft width 8' 9" x depth 11' 6"
Bedroom 3 Closet:
10 sq/ft width 2' x depth 5'
Bedroom 4 Closet:
10 sq/ft width 5' x depth 2'
Breakfast Room:
103 sq/ft width 10' 9" x depth 9' 7"
Dining Room:
110 sq/ft width 11' 1" x depth 10'
Foyer:
30 sq/ft width 4' 9" x depth 6' 6"
Garage:
396 sq/ft width 22' x depth 18'
Gathering Room:
212 sq/ft width 11' 10" x depth 18'
Hall Bathroom:
57 sq/ft width 5' x depth 11' 6"
Hall Closet:
8 sq/ft width 4' x depth 2'
Kitchen:
115 sq/ft width 10' 9" x depth 10' 9"
Living Room:
173 sq/ft width 11' 6" x depth 15' 1"
Master Bathroom:
42 sq/ft width 5' x depth 8' 6"
Master Bedroom:
150 sq/ft width 13' 1" x depth 11' 6"
Master Closet:
23 sq/ft width 2' x depth 11' 6"
Porch - Front:
16 sq/ft width 2' 6" x depth 6' 6"
Powder Room:
25 sq/ft width 5' 6" x depth 4' 8"
Utility Room:
35 sq/ft width 5' 6" x depth 6' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

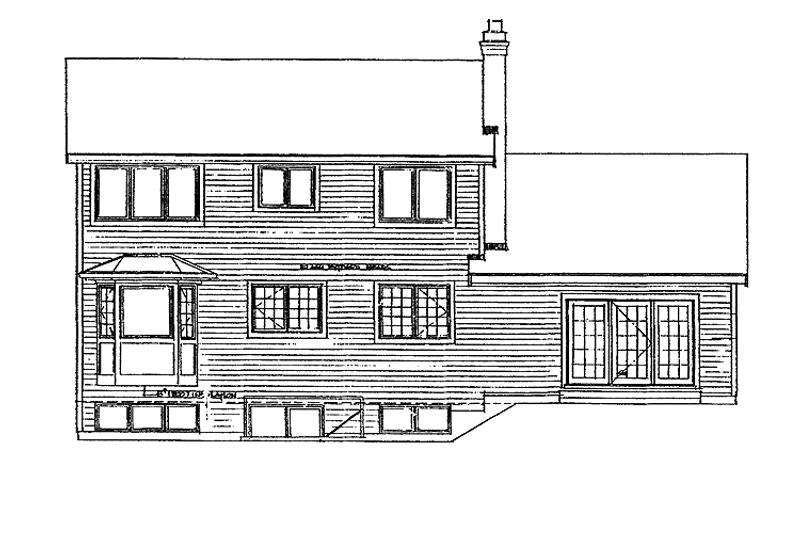

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$844.80
$950.40
$1056.00
$1056.00
$1689.60
Foundation
$0.00
$0.00
$220.00
$220.00
Framing
$0.00
Additional Options
$156.00
$48.00
$396.00
$120.00
$236.00
$31.20
$120.00
$68.00
$0.00
$796.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
