PLAN 437-15
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

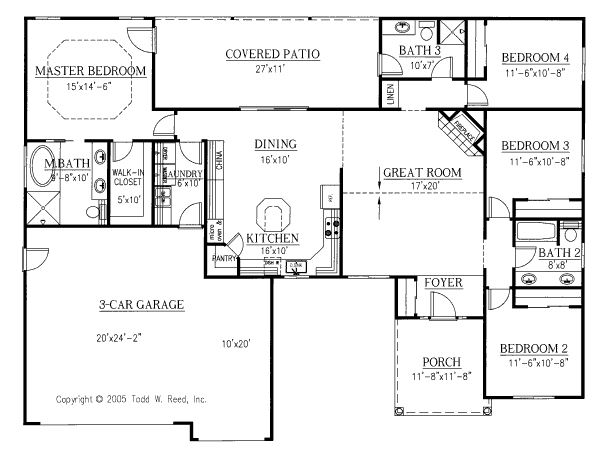

Floor Plans
Full Specs & Features
Dimension
Depth : 51' 4"
Height : 16' 4"
Width : 67' 6"
Area
First Floor: 1938 sq/ft
Roof
Primary Pitch : 5:12
Roof Framing : Trusses
Roof Type : Concrete Tile
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Garage Features
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
122 sq/ft width 11' 6" x depth 10' 8"
Bedroom 3:
122 sq/ft width 11' 6" x depth 10' 8"
Bedroom 4:
122 sq/ft width 11' 6" x depth 10' 8"
Dining Room:
160 sq/ft width 16' x depth 10'
Garage:
241 sq/ft width 10' x depth 24' 2"
Great Room:
340 sq/ft width 17' x depth 20'
Kitchen:
160 sq/ft width 16' x depth 10'
Master Bathroom:
56 sq/ft width 5' 8" x depth 10'
Master Bedroom:
217 sq/ft width 15' x depth 14' 6"
Master Closet:
50 sq/ft width 5' x depth 10'
Patio:
297 sq/ft width 27' x depth 11'
Porch - Front:
136 sq/ft width 11' 8" x depth 11' 8"
