Full Specs & Features
Depth : 48'
Height : 31' 8"
Width : 45'
Basement Unfinished: 903 sq/ft
First Floor: 1119 sq/ft height 9'
Second Floor: 829 sq/ft height 8'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Formal Dining Room
Upstairs Master Bedrooms
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings

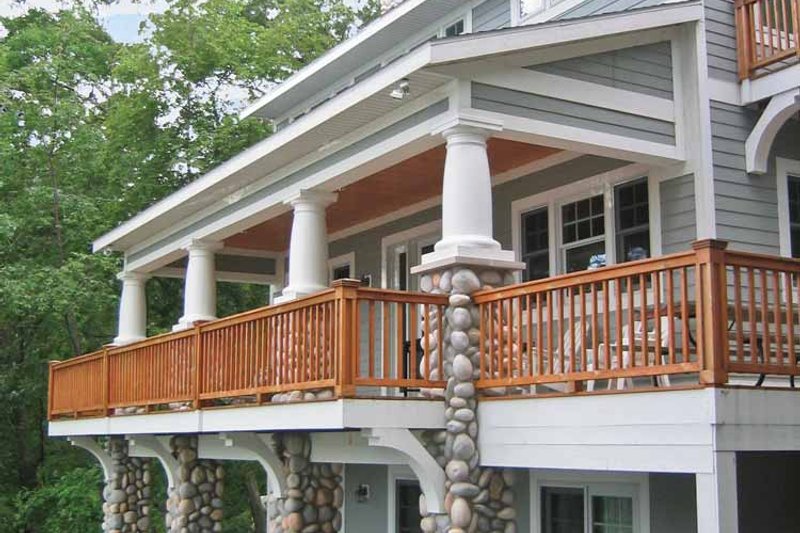

Covered Rear Porch
Wrap Around Porch
165 sq/ft width 13' 4" x depth 12' 5"
125 sq/ft width 10' 11" x depth 11' 6"
141 sq/ft width 10' 9" x depth 13' 2"
143 sq/ft width 18' 6" x depth 7' 9"
281 sq/ft width 12' 6" x depth 22' 6"
642 sq/ft width 27' 5" x depth 23' 5"
240 sq/ft width 18' 6" x depth 13'
379 sq/ft width 16' 6" x depth 23'
264 sq/ft width 22' 4" x depth 11' 10"
What's Included In This Plan Set
Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in the state of Michigan requires special permission from the Architect.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

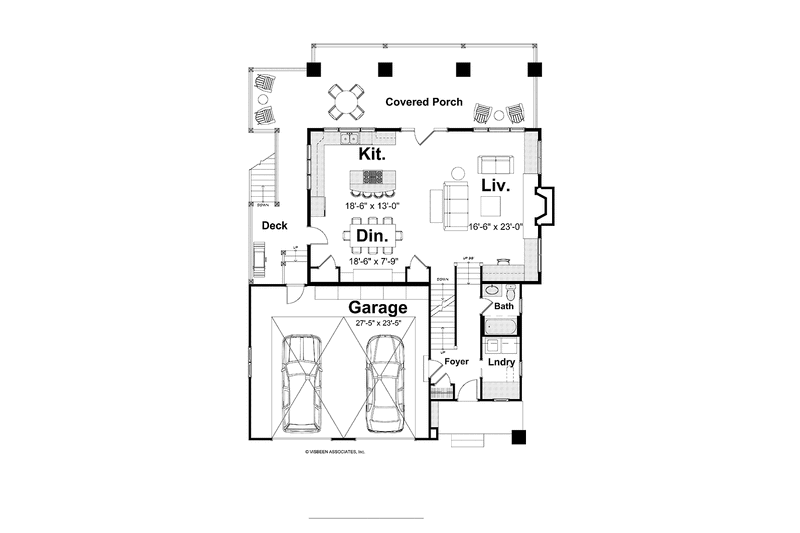

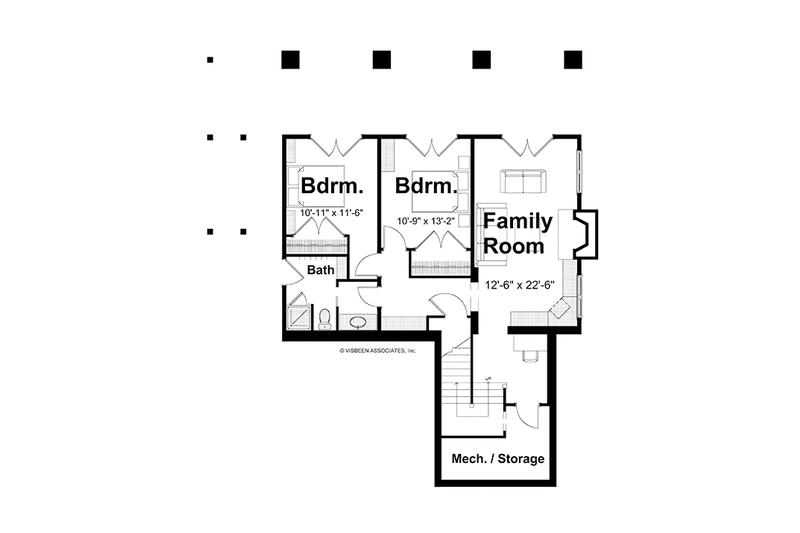

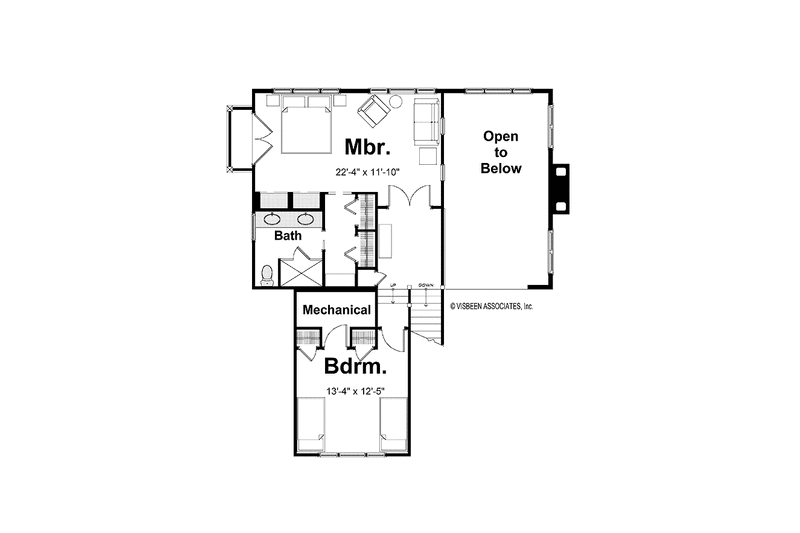

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
